I like it! What do I have to do first?
1) Change the font to a nice looking proportional font. Topaz looks outdated and was originally
made for lower resolutions, so the proportions of the buttons look wrong as they try to fit the
font. I recommend to use XHelvetica.font or maybe Arial. First you should change the fonts in the 'window'
area (f.ex: XHelvetica font 13 as the default/normal font and XHelvetica.font 9 for small sizes and
a bigger font (like CGTriumvirate 22) as the big font. Second change the font of the buttons (see 'buttons'
area) to XHelvetica 13 aswell. (You could also use ApplePL font to achieve a MacOS GUI look.)
2) First download my CoolMUI set and the
WCP-image set by Matt Chaput. The
CoolMUI set features directories containing patterns, which we will use in this tutorial. The WCP
set is a collection of beautiful image-sets for MUI by Matt Chaput.
. Dearchive both and copy the directories of the CoolMUI archive
(gui, button, lists, scrollbar, slider) to your MUI:Patterns directory. Do the same with the WCP
image set (copy it to MUI;Images). It's a good idea to
collect all MUI-relevant patterns in several dirs in your MUI:patterns. This way, you don't get lost
in hundreds of drawers and files. Also, if you change your HD structure, MUI applications may have trouble
to find the patterns. I really recommend to collect everything MUI-related in one place (the MUI dir).
3) Now click the section 'groups'. There you should change the different areas of MUI. Choose
the 'softgrey_light' image for the first area, use
the 'softgrey_default' for the second area and for the registers use the 'blue-stripes_light' pattern.
(Find them in the directory 'gui'). Click on 'Test' and have a look. Much better now, eh? It is very
important that the colours match in contrast and look bright to achieve a clean look.
The 'softgrey'-patterns used here are blended grey tones and although they just look grey, there is
a kind of structure in them, which gives an impression of a creamy, soft and clean effect.
4) At the 'buttons'-area, change the radio- and checkbox-images to the equivalent WCP images.
Next go to the string section and choose the WCP images (see download-section) for 'standard', 'file' and 'dir'.
5) Well, that's it for the main interface config. TIP: It's always a good idea to
activate the snapshot and popup-menu gadgets of the MUI window, so that you can snapshot every
MUI application (not all MUI apps feature a 'MUI settings'- option) with ease. (Find this config
at the 'windows' section)

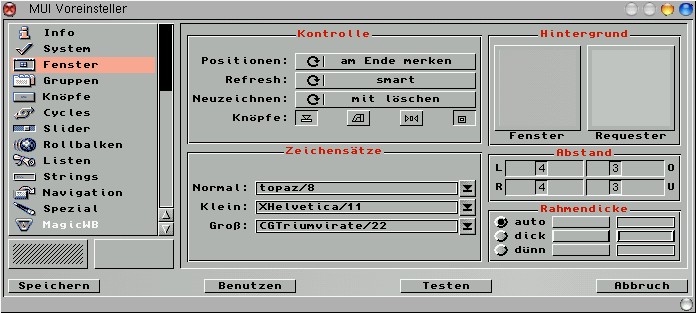

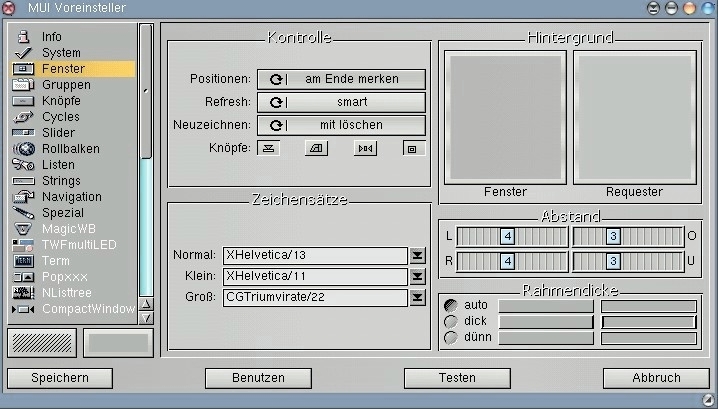

Configuring the main interface:
