Electro Kinetic Propulsion Is a form of propulsion
that uses electrostatic and or electro magnetic
force to create thrust.

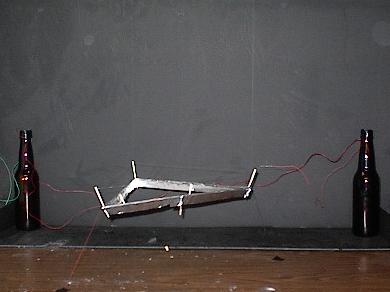

The picture below is a close up of the lifter in flight.
|
||||||

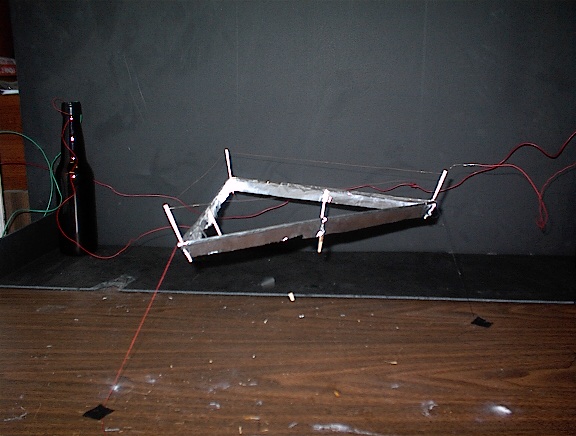

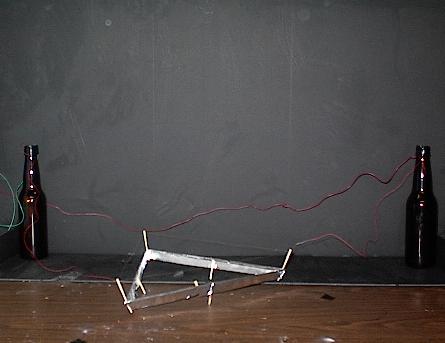

I have the pictures of one of my favorite lifters
it is a single cell lifter with a modified
design that I have been working on.
I have
a design for an autonomous lifter model
that
will be publishing in the following
months,
Here are the following dimension of
it are
L' 4 meters W' 2 meters and a height
H' .5
meters the design has a more conventional
looking air frame than most of the
designs
published so far. When I present it
to the
public it will reduce the laugh factor
and
I think it will give our community
a lift.

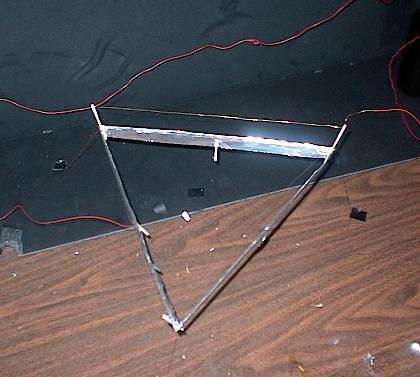

Here is top view in flight showing a small
corona on the back side of the lifter.
Some of the modification over the lifter
one are adjustable spares set in straw
segments.
spares have a en degree off set to
improve
rigidity. all balsa is 2mm thick then
cut
into I beams with lighting holes every
2
cm this close to the strength of the
2mm
spares but weighs 1/3 less than the
1 mm
x 2mm spares. This lifter flies with
plenty
of thrust to spare.
