                                                     KLV-351P



      Identifying the Problems:









After removing the PCB from the heat sink, take a good look at the heat sink where the final output transistors were mounted AND the bottoms of the final transistor mounting tabs.  Note that the 'pattern' of the heat sink compound will tell you if you have a problem. If you notice a lot of compound on the center of the mounting tab and very little on the tab ends, then you have the distortion I mentioned.  On the 351P, be sure to look at the small power transistor on the corner of the PCB as well.  On the unit I inspected, I noticed that the transistor was only 'half seated' to the heat sink.  The pattern of heat sink compound on only 1/2 of the transistor itself was the tell-tale sign that something was wrong. Upon closer inspection, I noticed that the hole in the heat sink was not drilled deep enough for the mounting screw.  When the screw was tightened at the factory, the screw bottomed out in the hole before it pulled the transistor to the heat sink.   A simple cupped washer under the screw head fixed this problem.

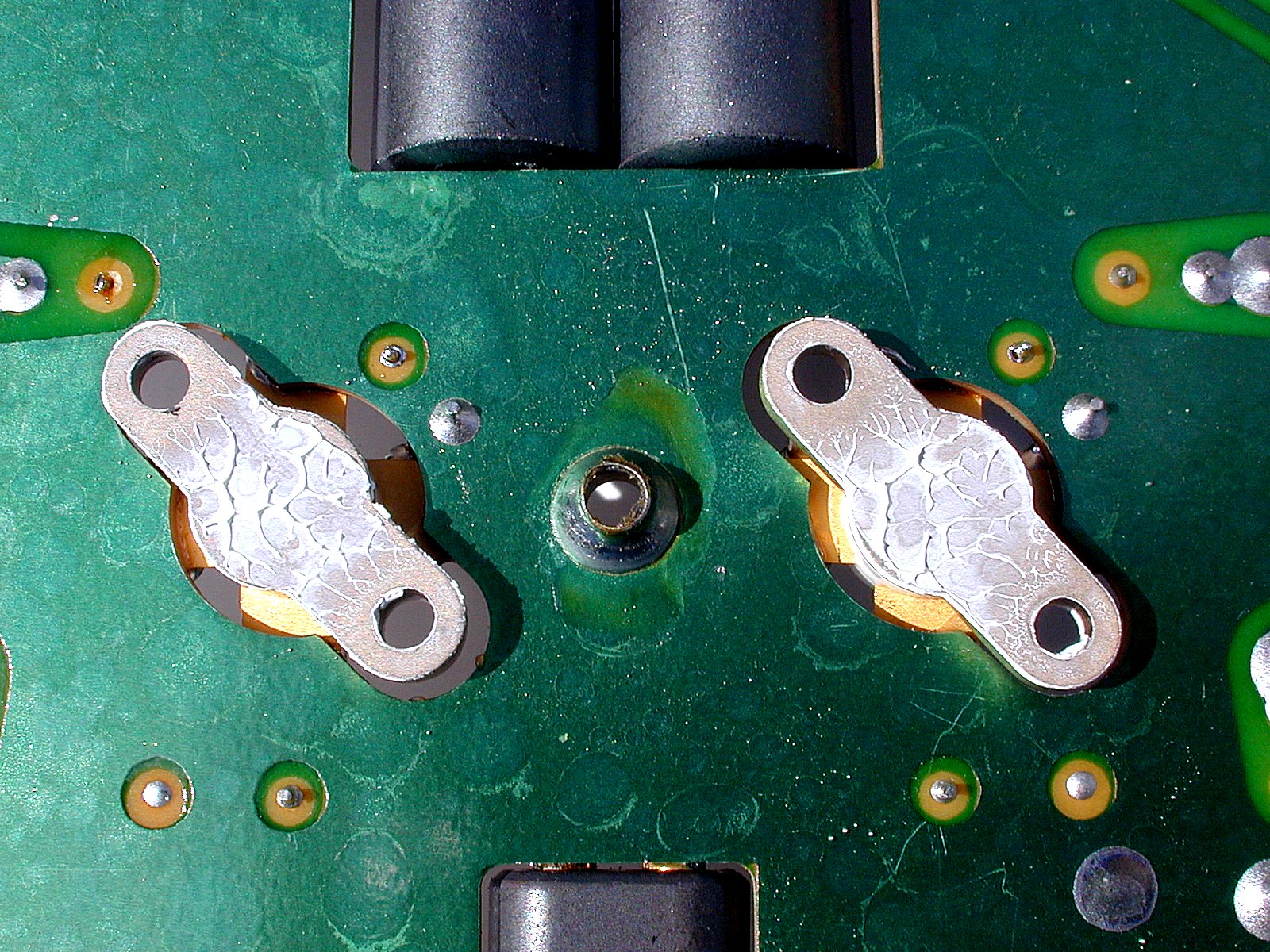

Here you see that there is a lot of thermal compound

 in the center of the mounting tab. These finals were not fully seating...

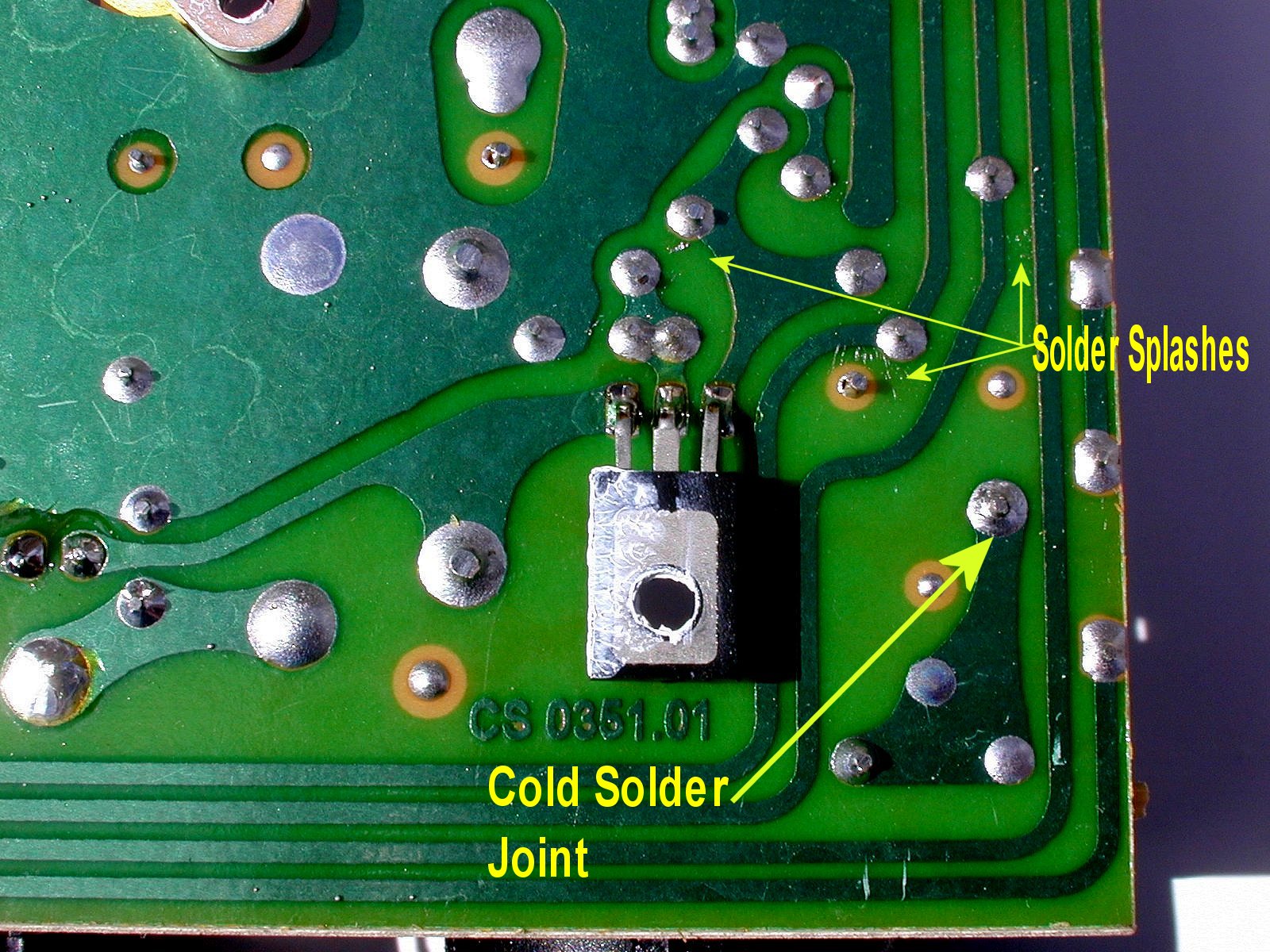

This transistor was not making full contact either.....

The "Big view"  picture clearly shows both the solder splashes and a cold solder joint.

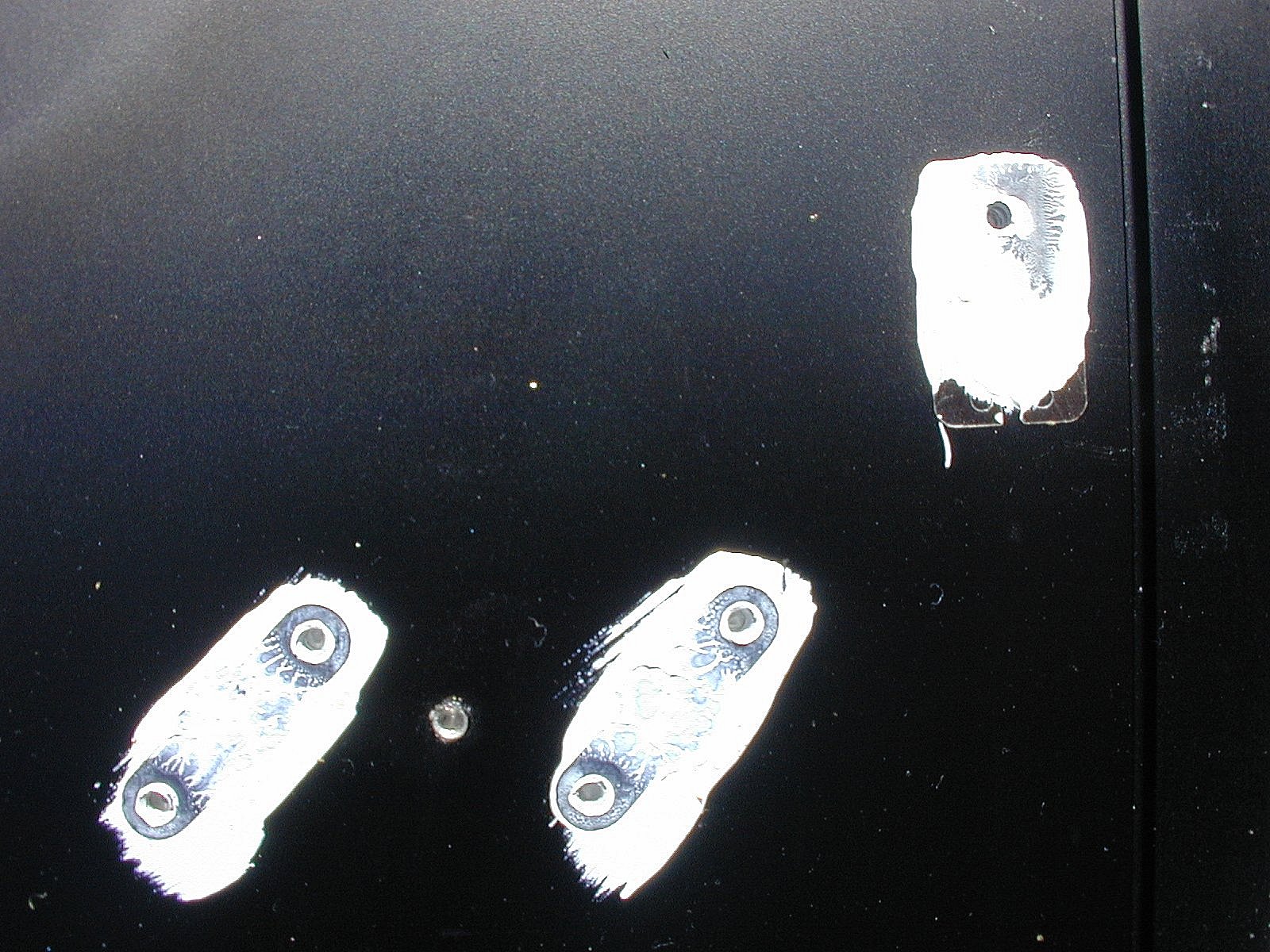

351P Heat Sink after PCB removal

(click here for larger view 58K )

(click here for BIG view 306K)








351P Finals -- Mounting Tabs

(click here for larger view 109K)

(click here for BIG view  576K)









351P Small Power Transistor

(click here for larger view 93K)

(click here for BIG view 417K)
