KLV-351P
Identifying the Problems:
|
|||

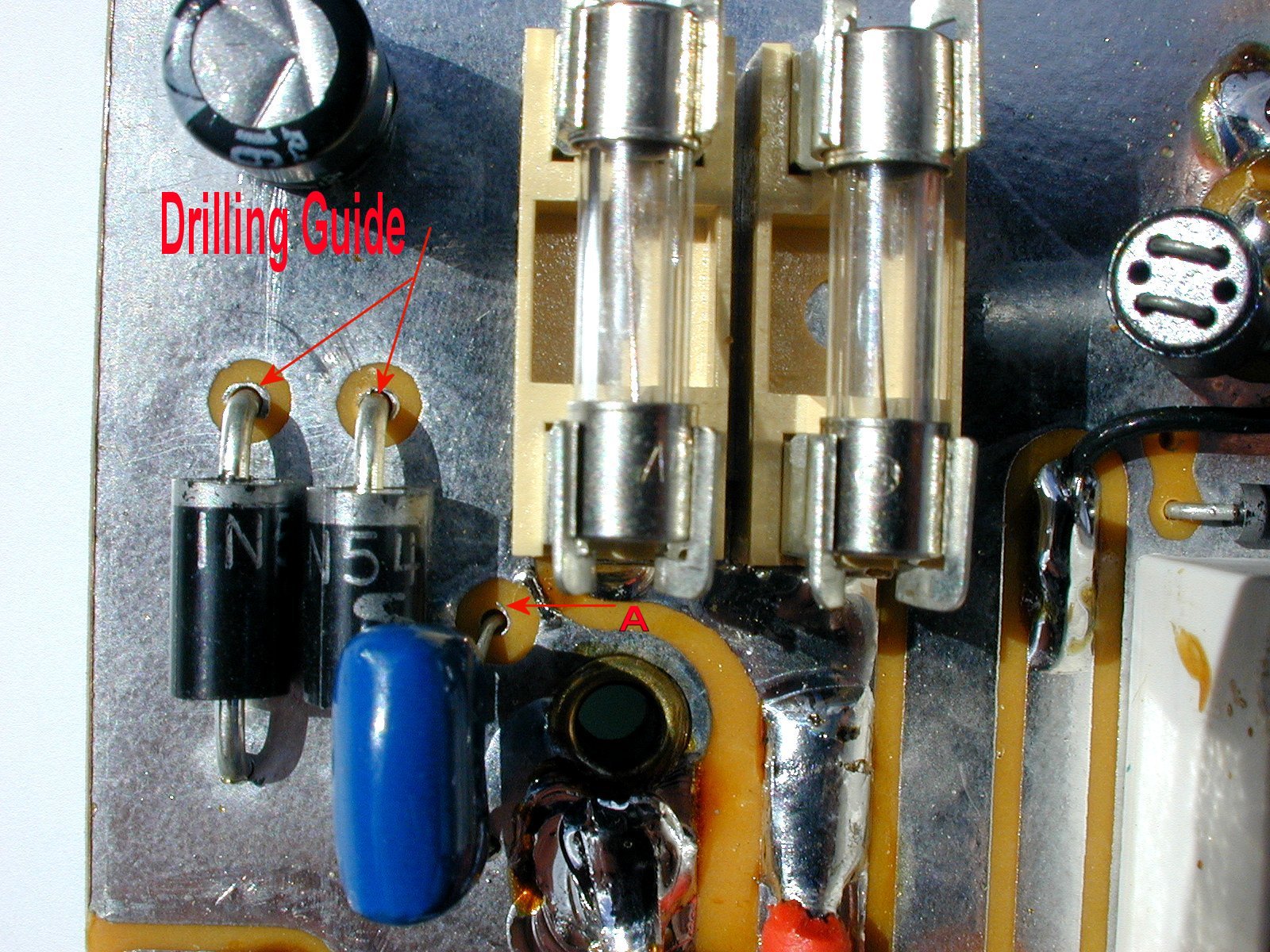

 351P Power Section (click here for larger view 100K) (click here for Big view 500K)
|
Here's
the power section of the 351P. Pay particular attention
to the 2 large Diodes, the cathode ends (banded ends). If
you zoom in on the Big view picture, you will see 2 rings of
solder trace around the diode leads before they go through the
PCB. On this amp, small pieces of the 'solder trace/drill
guide' were dead shorted to ground. Remove any stray
pieces of trace from around these leads that may find their way
to the ground plane. Note the red "A" in this
picture, it shows a small version of what I've just
described.....
---------------------------------------------------------------------------------
Another view of the PCB rear showing where to look for cold solder joints.
-------------------------------------------------------------------------------------------------

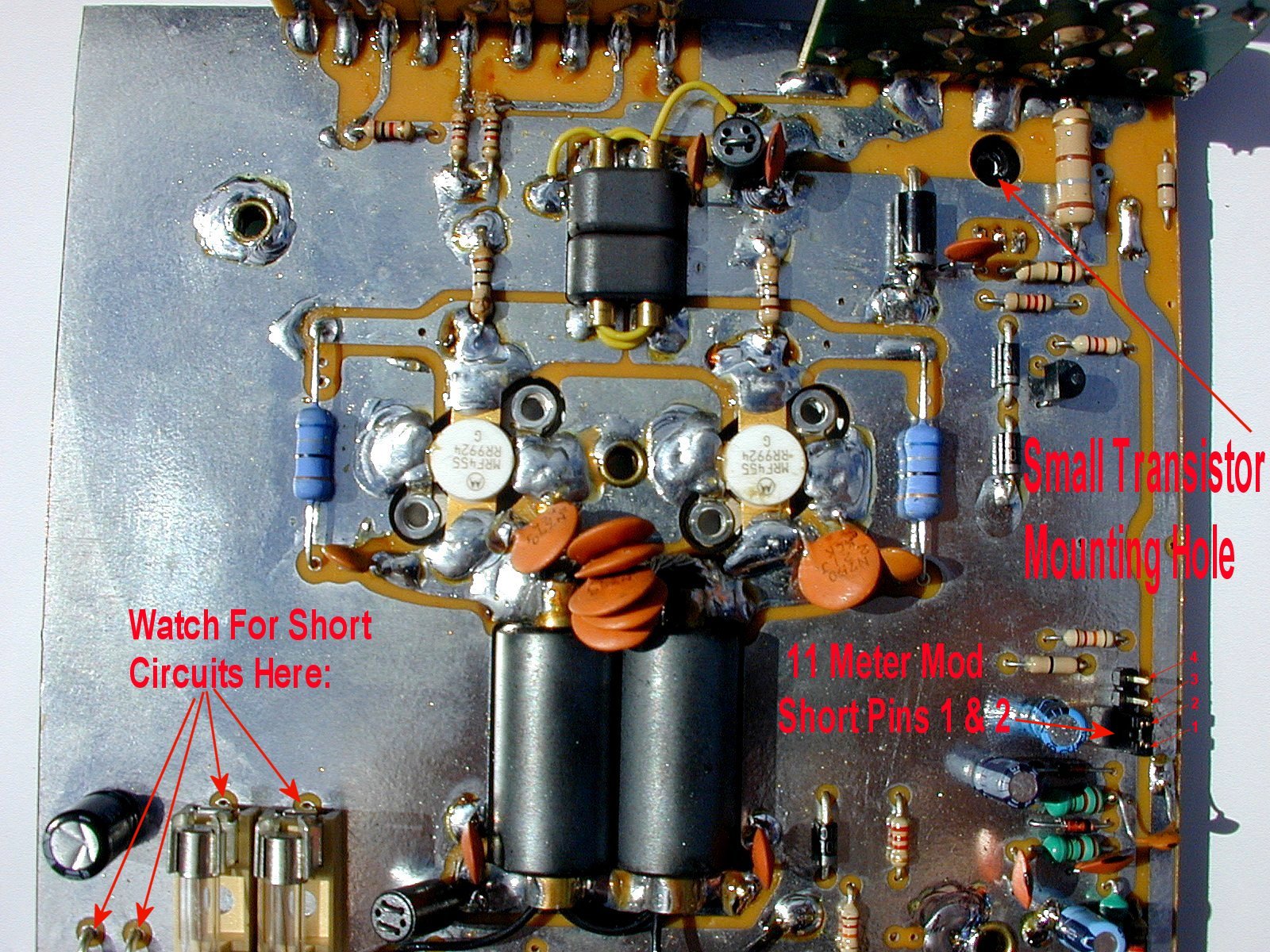

Here is the 351P Main PCB showing the 10 Meter Mod and additional information.
|
||
|
351P Power Section Again (click here for larger view 79K)
|
|||
351 Main PCB (click here for larger view 114K) (click here for Big view 514K)
|
|||
