My 1988 Ford Mustang GT

This car is a road race car. It's seen action at Sears Point, Laguna Secca and Thunder Hill. It has been a street/strip car for most of its life. It was initially purchased by a club member to participate in track events. You can seen it in the Northern California Shelby Club.

Engine/Drivetrain Modifications


• 9" K/N air filter
• C & L 76mm Mass Air Sensor and Elbow
• 65mm Throttle Body -SVO ported by Charlies Mustangs
• Ported EGR valve body by Charlies Mustangs
• Kaufmann Ported & Matched upper and lower Induction Manifold
• 24lb Ford Racing Injectors
• Hypertech off road computer chip w/160° Thermostat
• Port and Polish stock heads and 3 angle valve job
• Bronze Valve Guides
• .020" over Boar
• Forged Pistons with high compression
• ARP Rod Bolts
• High Volume Oil Pump
• Milodon Performance Roller Timing Chain
• Dynamic Engine Balance
• Crane Cams Roller Cam and Spring kit (282° duration, .512" intake/.529" exhaust Lift)
• Comp Cams Adjustable Pedestal Mount Roller Rockers 1.7 ratio
• MAC Shorty Headers
• MAC H-pipe with flowmasters
• Kaufmann Under Drive Pullies
• 9mm Ford Racing Ignition wires
• MSD Blaster Coil
• MSD Cap & Rotor
• March A/C Eliminator Bracket
• BBK Clutch Quadrant & Cable
• BBK Firewall Clutch Adjuster
• Heavy Duty Ram Clutch
• Hurst Comp. - Plus Shifter
• SVO 3.55 Gears
• All Synthetic oils red line and amsoil

Chassis /Body Modifications


• 1995 Mustang GT Wheels
• SN95 Spindles and Hubs
• 2000 Mustang GT Brakes
• Cross drilled rotors

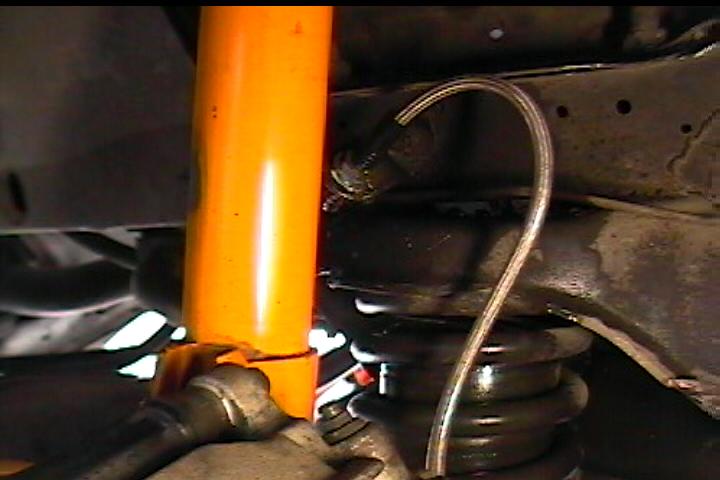

• Maximum Motorsports Stop Tech Stainless Steel Braided Brake Lines
• Semi Metallic Brake Pads
• Eibach Springs
• Koni Double Adjustable Race Struts
• Koni Quad Shocks
• JBA Subfeame Connectors
• Ford Motorsport Front Strut Tower Bar
• JBA Rear Shock Tower Brace
• JBA Polyurathane Sway Bar Bushings
• Saleen AutoSport G Load Barace
• JBA 4 Point Roll Bar
• Roll Bar Camera Mount
• Heavy Duty Rear Upper Control Arms
• 5 Point Simpson LF/X Latch Harnes
• Corbau Race Seat
• SVO 140 MPH speedometer
• LX Tail Lights

Future Plans

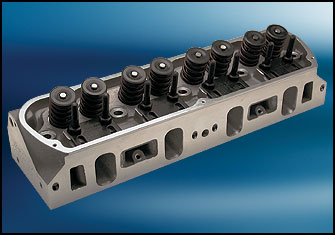

• AFR 185 Aluminun Heads picture
• Full Griggs Racing Suspension picture
• Kenne Bell Supercharger picture

Performance


• 0-60 Acceleration 5.6 sec.(g-tech)

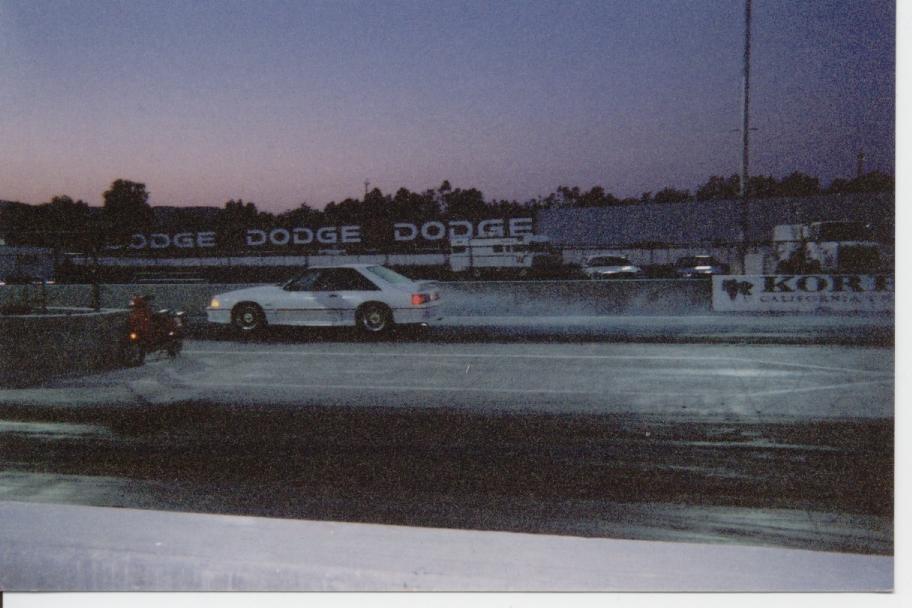

• 1/4 Mile 14.12 @ 97mph(sears point)

These numbers are with the stock long block with 140000 miles and stock tires.

New numbers coming soon...

Original Specifications

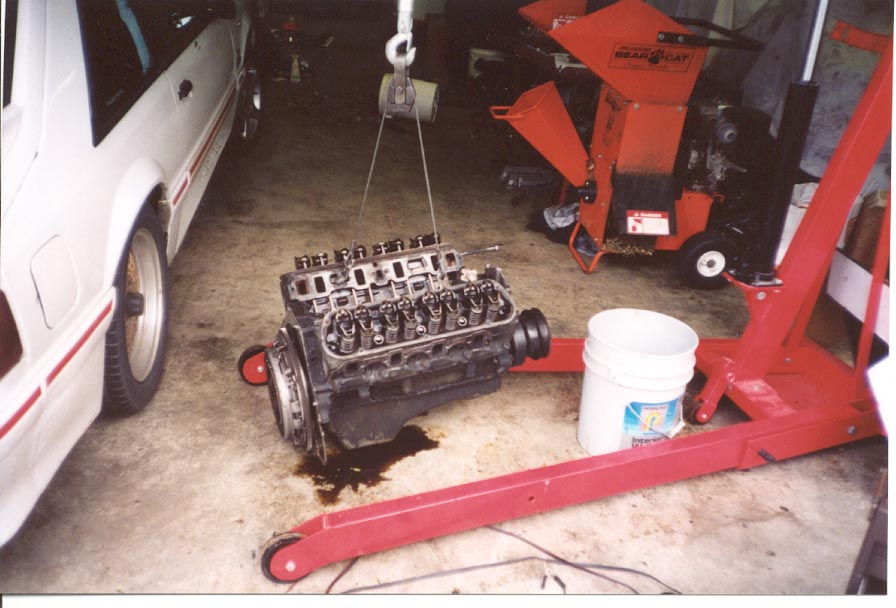

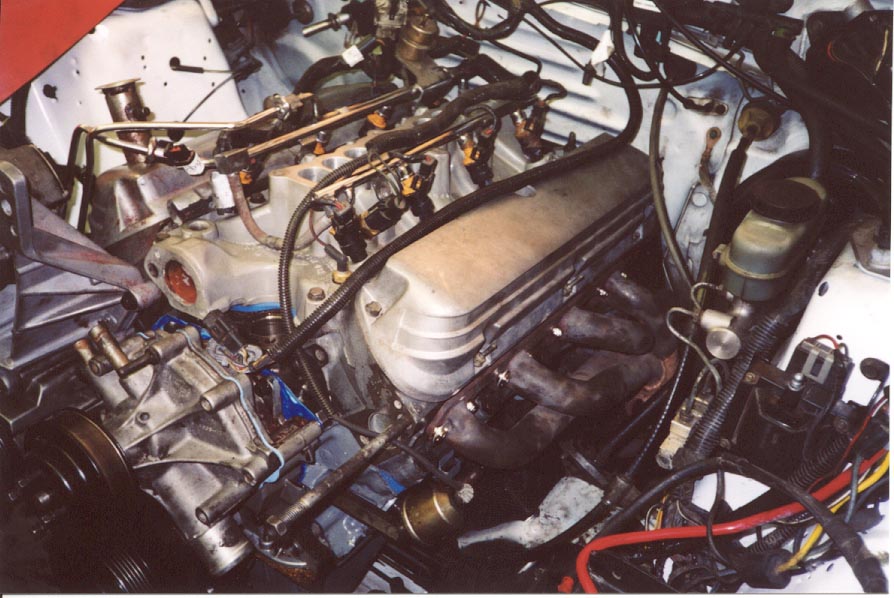

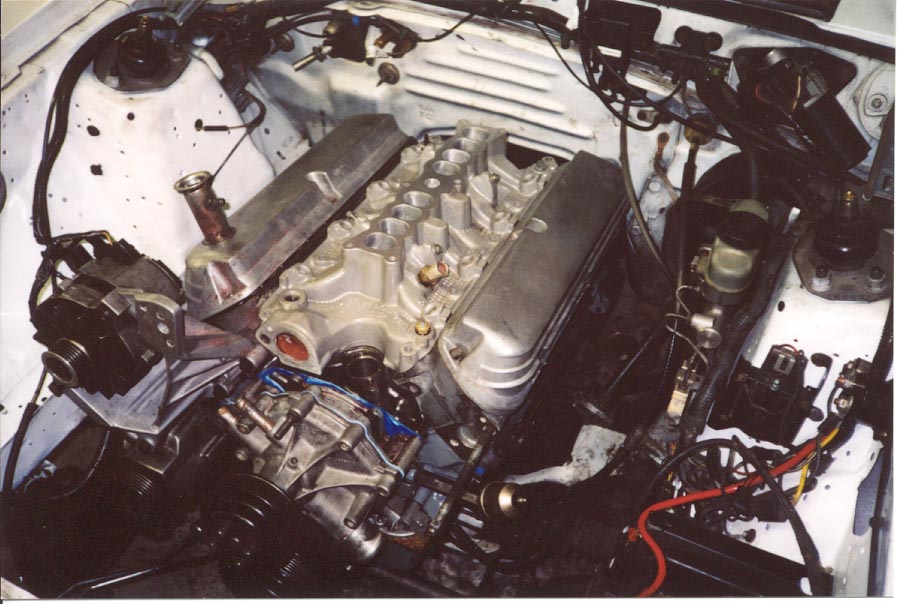

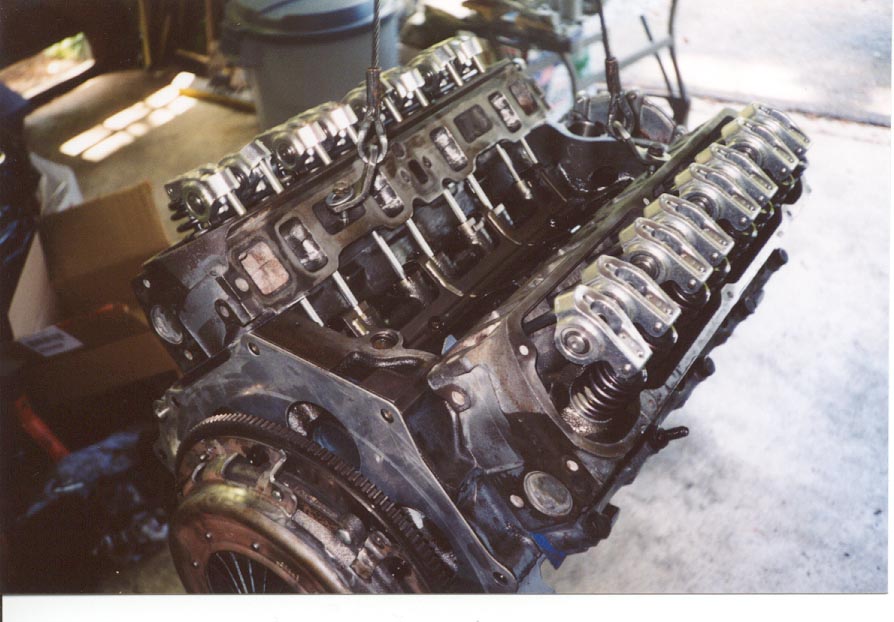

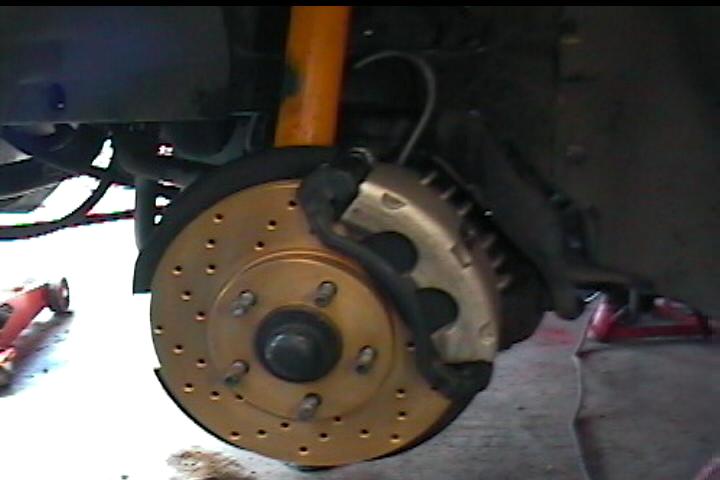

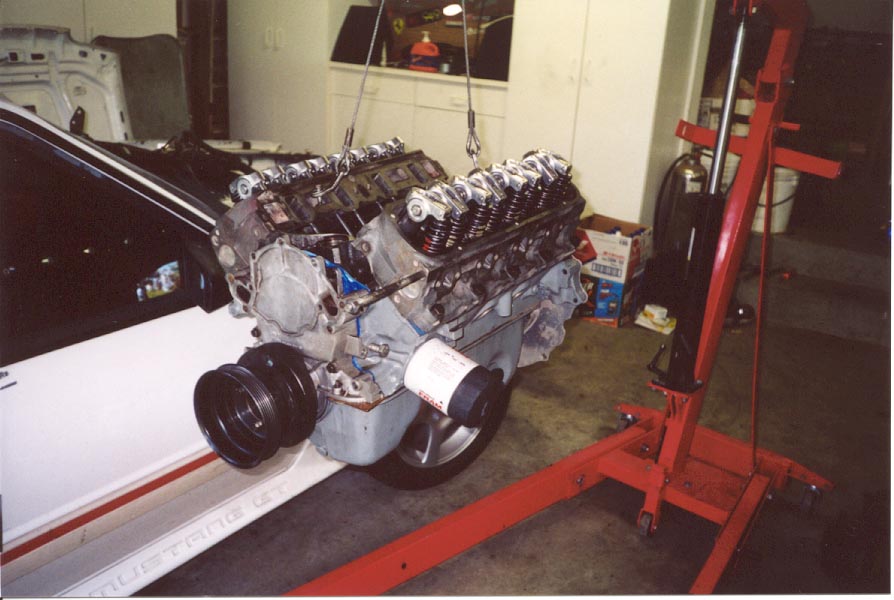

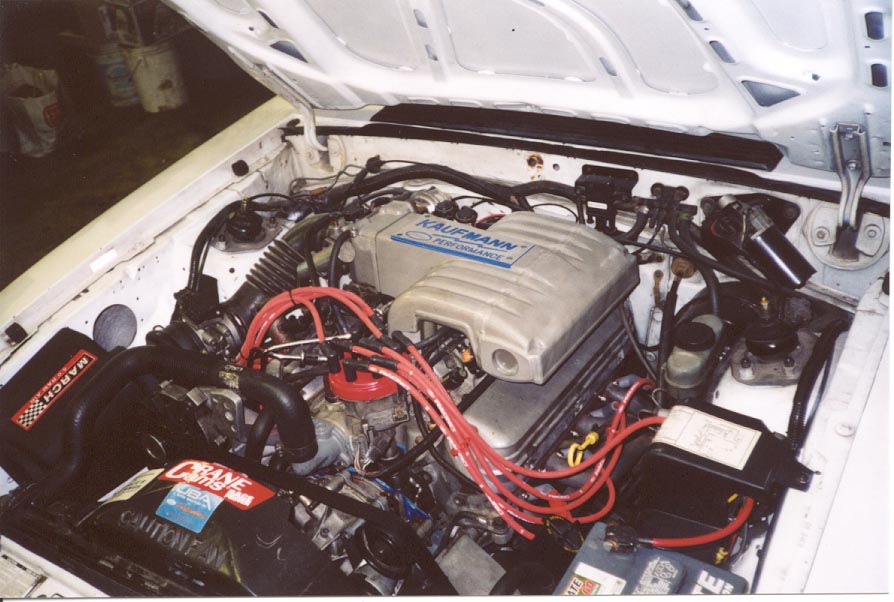

These are some pictures from the engine rebuild and installation. Also some pictures of my 5-lug conversion.

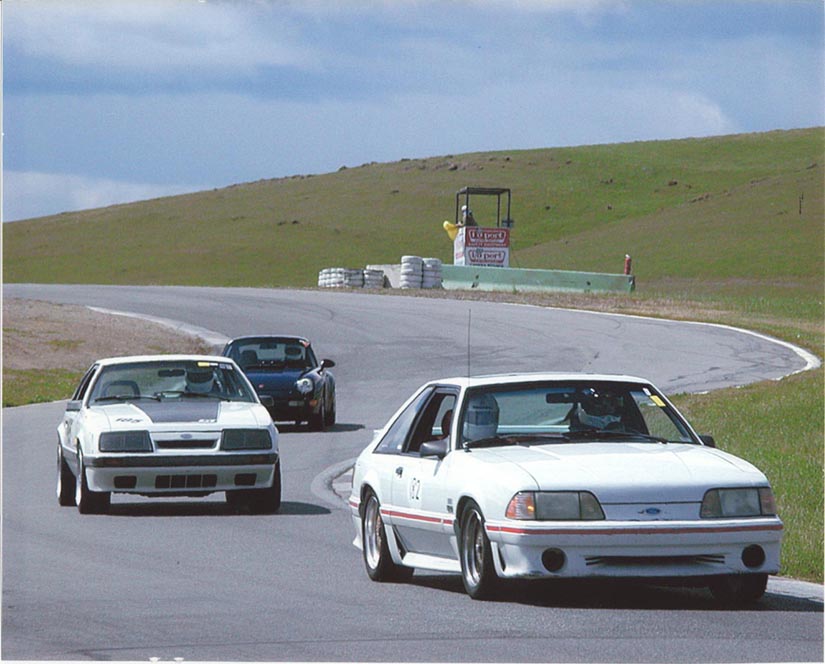

Seeing some action at Sears Point Raceway!
