Exporter Super Heavy Duty Underlift

ZACKLIFT-Z402 & Z403




The 40,000 pound EXPORTER is available in a choice of reaches. The 147" 3 Stage 403 or, the 112" 2 Stage 402



Specifications

 402

 403
Retracted lift rating.

 40,000lbs.

  40,000lbs.
Tow rating

 100,000lbs.

 100,000lbs.
Weight of unit

 2,600lbs.

 3,000lbs.

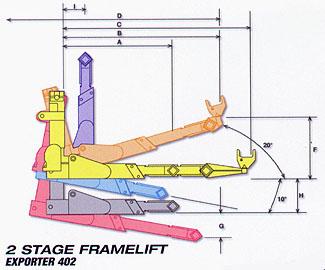

A. Retracted distance

 58"

 61"

B. Reach

Rating at full extension

 100"

30,000lbs.

 135"

18,000lbs.
C. Reach with 12" Bus Extensions

 112"

 147"
D. Approx. reach, center of axles to forks

 155"

 190"

E. Reach to center stage extension

Rating at center stage extension



 100"

30,000lbs.
F. Upward tilt, max. lifting height

 22deg., 65"

 22deg., 78"
G. Tilt below ground

 8deg., 7"

 8deg., 10"
H. Downstroke on lift cylinder

 17"

 17"
I. Distance from tailboard when stored

 12"

 12"










Financing Available! Call 1-800-337-2350 for pricing & lease information.
