WAN Requirements

• Internet access will be  from the District Office Hub. It will be a Frame Relay WAN link.

• A PIX Firewall will provide security between the outside world and the Washington District WAN core.

• The Public LAN from the District Office will host the district's web server and the access router.

• The WAN core will consist of three regional hubs (DO, Service Center, Shaw Butte Elem.)

• The WAN core will be connected via sets of 4 each T1 lines.

•  The protocol between the regional hubs will be PPP

• The routed layer 3 protocols will be IP and IPX

• School sites will be connected to their local regional hub via T1 lines unless otherwise notes.

• There will be an ISDN connection to Community School in place of a T1 line.

• Each  Routers at a WAN hub will be Cisco 7206.

• 1 each 1-port 100Base FX module and

• 3 each 8-port Multi Channel T1 (CSU/DSU and PRI)

• Routers at each school site will be 3662 unless otherwise noted

• 1 each Single-Port 24 Channel T1 module

• 2 each Fast Ethernet Fiber Ports module

• The router at Community School is a Cisco 802 ISDN/Ethernet router

Back to Top

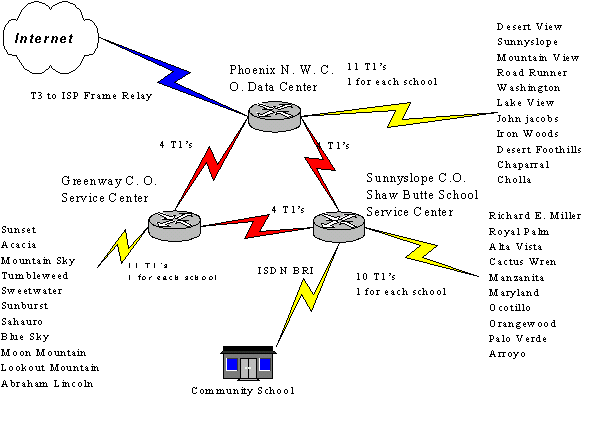

WAN Network Diagram

Back to Top

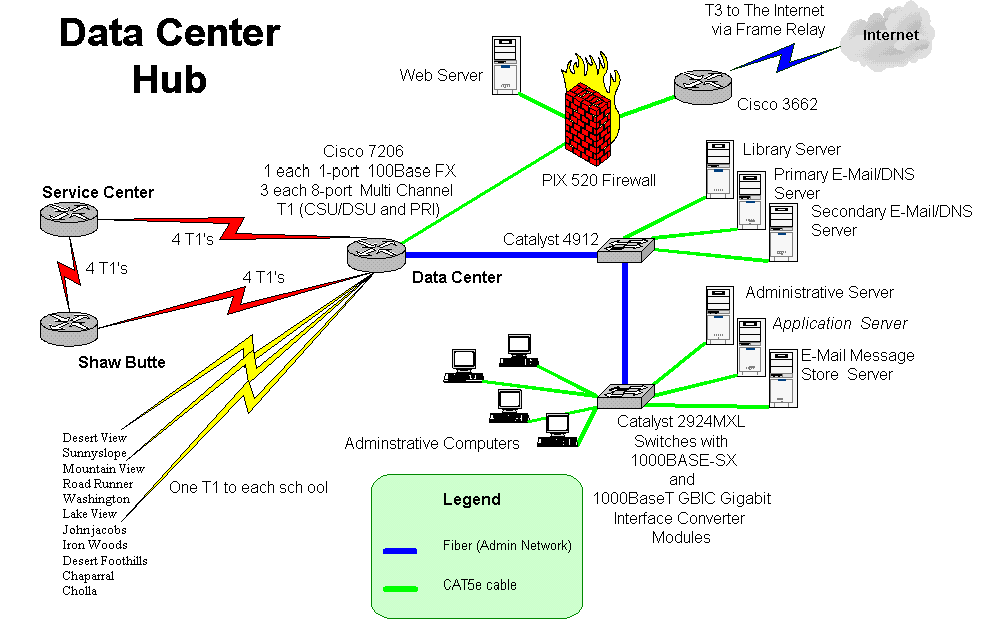

Data Center Hub

Back to Top

WAN IP/IPX Implementation

See the IP/IPX Addressing Page

Back to Top

WAN Equipment

Back to Top
