ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE
Cases and straps included with all Piano & Chromatic Accordions
Beltuna & Excelsior (Melody Self Contained Models)
Treble
3 Sounds can be Combined
Sustain - Raise Sounds Length
Transposer - Raise or Lower Treble Sounds
Octive Change
Up/Down - Recallable Programmed Memories
Dynamic Touch Sensitive Keyboard
Bass Chord
2 Sounds can be Combined
Volume - Change Chord Volume
Sustain - Raises Sounds Length
4 Foot - To Raise Octive
Bass
2 Sounds can be Combined
Volume - Change bass Volume
Sustain - Raises Sounds Length
8 Foot - Raises Octive
72 - 80 - 96 Bass Available
MIDI REEDLESS ACCORDION...CALL FOR PARTICULARS...!
MIDIVOX "Series III"
The well-known "MIDIVOX II" Accordions series, introduced by EXCELSIOR in 1987, has been regarded as a standard in the world of MIDI accordions. After years of success, CEMEX - EXCELSIOR ACCORDIONS - s.r.l. is now proud to introduce the MIDIVOX Series evolution:
The MIDIVOX III accordions feature a powerful yet easy-to-use MIDI control system. All manual controls are located on the grill, providing fast access to all functions. Separate swell pedal and footswitches (supplied) provide advanced midi controls. High-tech, compact size mircrocomputer based electronic boards are fully enclosed inside the accordion shell. No parts outside other than power supply unit and pedals. High quality condenser pick-ups and a new preamplifier system are also provided for accordion reeds amplification. The MIDIVOX III Series accordions range from low-priced 96 bass up to 120 bass 5/5 reeds with tone chamber (cassotto).
Main features
Operation on up to 6 MIDI channels at the same time - six working sections (two on the treble side, two on the chord side, one of the bass, one for auxillary external unit control
Up to 128 sounds for each section can be selected from the front panel
Volume level Scaling Control for each section regulated by potentiometer on the front panel. Octave transposer for each section.
Display to read numbers selected and active functions.
Programable MIDI pedal control; it can work as a volume control, pitch blend, key velocity control or it can be assigned other functions
4-foot-switch unit, each switch with programable action; Program UP, Program Down, Sustain, Modulation, Start/Stop, and much more.
Up to 128 user memories available to store panel configuration including; transmission channels, operating sections and sounds, volumes, pedal and footswitches functions.
Back-up memory for enhanced safety of stored data.
Condenser pick-up (3+1) with separated Volume and Balance controls.

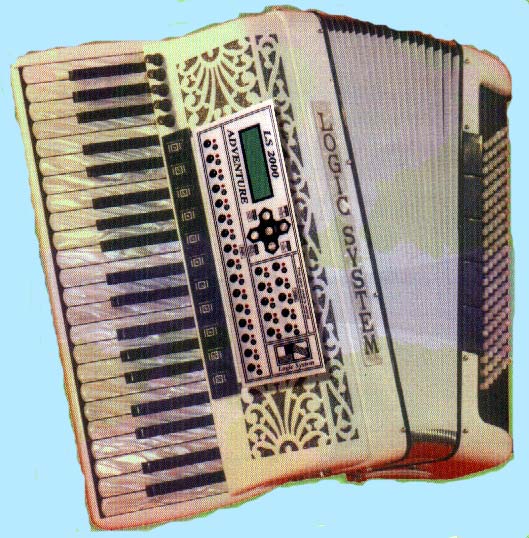

S2000 Adventure by Logic System
Liquid crystall display black light by 32 characters on two lines
Programming mode easier by key EDIT and four Joistick type
Transmission on 16 channels assignable to four OUT MIDI, 16 independents parts
Reception of 16 channels on jack midi in with filter PC-CTL-PB-AT, assignation of MIDI OUT and Ch. on coming out
Four possible modalities for each part: TREBLE (MONO on/off) - CHORD - BASS - FREE
128 values of program change on the bank0 (0/128) and bank32 (0/128
Transposition of +/-24 semitones independent for each part
15 curves of dynaics to the keys (1 assignable to bellows) with possiblity of selection of fixed level (0/127)
Assignation of change control to bellows with values from 0/127 and relative values min and max
Possibility of SPLIT or LAYER on keyboard (max 16) with range LOW and HIGH
16 multifunctional programmable switches
Program Change, Bank0 and Bank32, Control Change (0/127) with Min and Max values
Preset, Special Code (it includes 128 functions of exclusive code
3 pedals and 5 sliders to which assign functions of change control and relative Min and Max values
Selection of the lower note in the CHORD or BASS mode
Memory (hold) function in the section CHORD
Main transpose +/-24 semitones
Possibility of DUMP, COPY, assignation of Name in Preset, 100 preset entirely programmable, with the possiblity of being assembled on 15 Bank of 10 User to Direct admittance
Possiblity of being assembled on 15 Bank of 10 User to Direct Admittance
Available in different models, on the front side of the accordion, double unit Rack or Accordion "EXPLORER"
In the fisa "EXPLORER" model the CHORD section can assumes 5 different types of transmission: Basic accord, first lapel accord, second lapel accord, bass-free to chromatic scale and bass-free to scale for fifth
ORLA
Real-Time Tone Generator-Arranger for M.I.D.I. Accordions for MIDI Accordions
We will install M.I.D.I. systems in anyone's accordion! Call for prices!
