...Ailerons and flaps for a SIG Kadet.......

..Barn door ailerons..

aileron construction

..Simple and rigid aileron structure..

.Sheet surfaces and ribs make the aileron/flap light and rigid. Ailerons typically run 7 rib bays, flaps 4 bays.

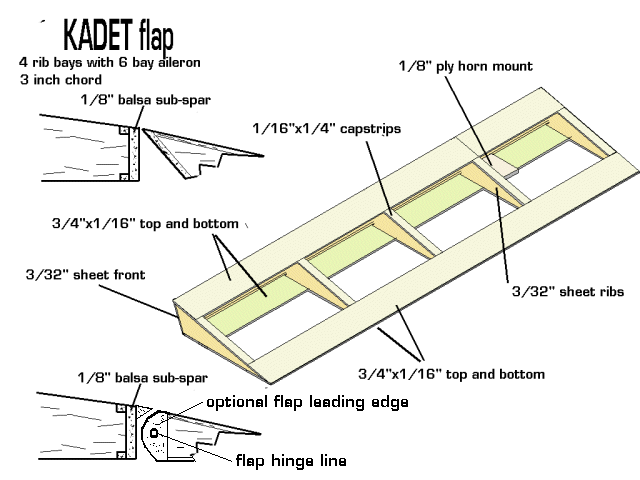

flap construction


.Each flap is moved by a single servo and bellcranks/pushrods. 45 degrees down is more than enough travel.

flaps down

..Flaps on a Seniorita and a Senior..

.Construction and layout sketch.

..All the world's Kadets!..

..Vee-tail camera plane..
