Atlas Global Inc.
P.O.Box 43-244,    Taipei 106,    Taiwan.
Tel:    +886 2 2707 2151     Fax: +886 2 2707 3055
E-mail:  aglobali@hotmail.com

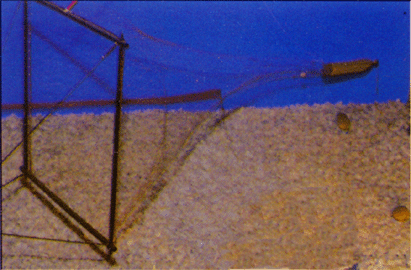

Fishing Net




Raw Materials Twine Size Full Mesh Size (mm) Knot Type
P.E. 320~400 D 4 ~ 360 ply 15 ~ 400 Single Knot
Nylon 210 D 3 ~ 120 ply 12 ~ 400 Single Knot
Polyester 210 D   8 ~ 40 Raschel Knotless



When Ordering Fish Netting,   please specifiy :
Kind of Yarn :  Whether Nylon Multifilament, Nylon Monofilament, Polyethylene, etc.
Kind of Twine  :  a) Twisting direction ; whether "Z" twist or "S" twist.
b) Number of Plies and Strands composing a Twine.
c) Twisting degree; whether Soft, Medium, Hard, or Extra-Hard Laid.
Size of Mesh  :  a) In inch, measured in the stretched state.
b) In Milimeter.
c) Number of knots per 6".
d) Number of knots per 50 cm.
e) Pasados ( number of a half mesh in 20 cm ).
Half Mesh Full Mesh

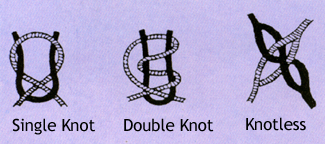

Type of Knot :  English knot, Double English knot, Mycle knot (Raschel Knotless), or Knotless.
Depth of net :  By number of mesh, meter, foot, yard or fathom in the stretched state.
Length of net :  By number of mesh, meter, foot, yard or fathom in the stretched state.

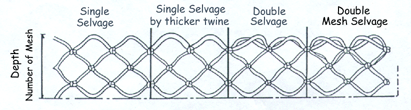

Selvage :  Whether single, double or double mesh selvage.
Final Treatment :  Dye, Tar or Special Resin, etc.
