Atlas Global Inc.
P.O.Box 43-244,    Taipei 106,    Taiwan.
Tel:    +886 2 2707 2151     Fax: +886 2 2707 3055
E-mail:   aglobali@hotmail.com

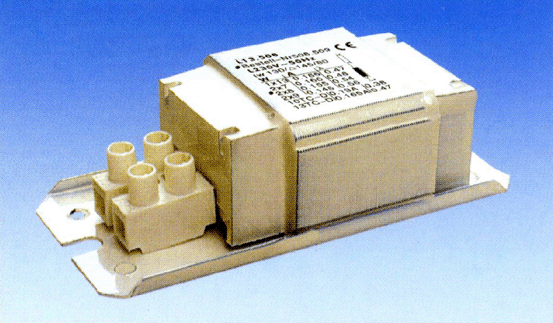

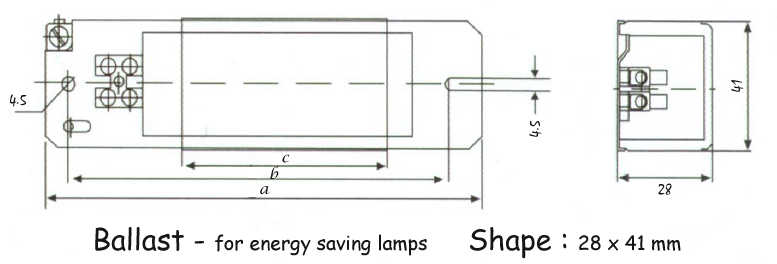

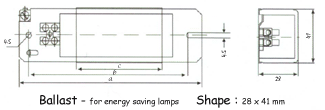

Ballast
for energy saving lamps
Shape :  28 x 41 mm
tw 130

      Specifications :
Ballast Capacitor Lamp
Type a
mm 		b
mm 		c
mm 		weight
kg 		rt/rtan
k 		Cp
f±10% 		Output
W 		Current
mA 		pcs/ctn carton size
mm
110V, 120V, 127V  /  50 Hz, 60 Hz
L7.9.606 85 75 33 0.32 25/40
25/40 		3.0
2.5 		7
9 		175
170 		50 225x210x160
L.13.606 85 75 33 0.32 35/65 4.0 13 285 50 225x210x160
L.15.606 85 75 33 0.32 45/80 4.5 15 330 50 225x210x160
L.20.606 85 75 33 0.32 45/80 5 20 370 50 225x210x160

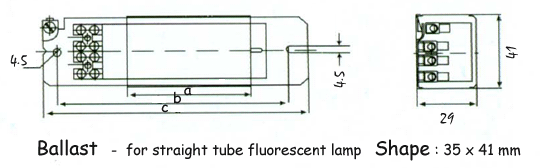

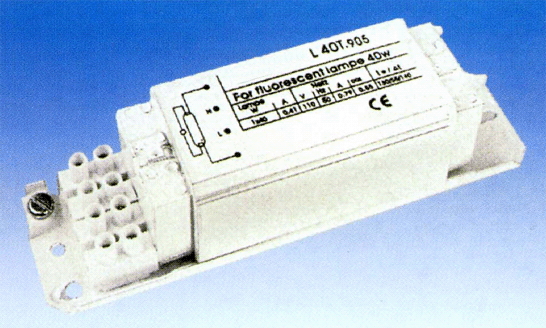

High-reactance Transformers
for straight tube fluorescent lamps.

Shape :  35 x 41 mm
tw 130

Ballast Lamp
Type a
mm 		b
mm 		c
mm 		weight
kg 		rt/rtan
k 		Output
W 		Current
mA 		pcs/ctn carton size
mm
110V, 120V, 127V  /  50 Hz, 60 Hz
L30.900 155 140 80 0.8 55/155 30 365 20 225x175x150
L40.900 155 140 80 0.8 55/155 40 430 20 225x175x150

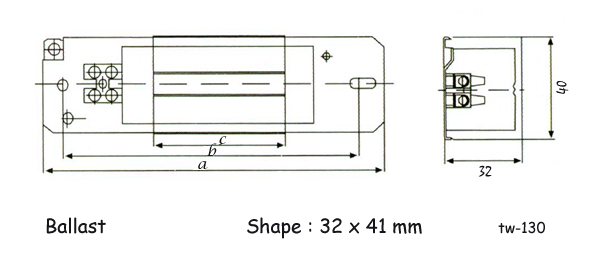

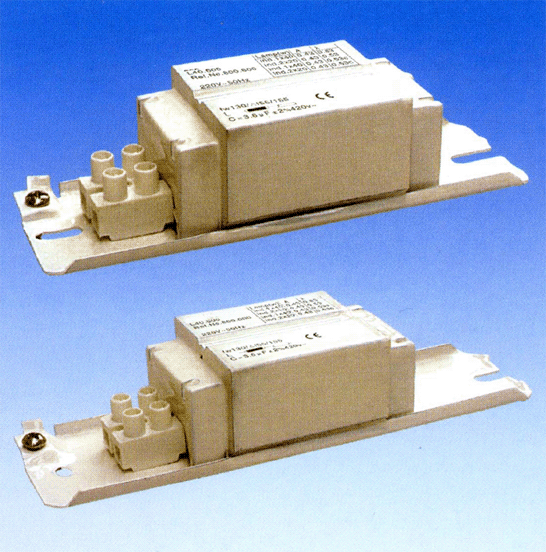

Ballast
Electromagnetic ballast for single-ended compact fluorescent lamps and two-ended straight tube fluorescent lamps.

Shape :  32 x 41 mm
tw 130

Ballast Capacitor Lamp
Type a
mm 		b
mm 		c
mm 		weight
kg 		rt/rtan
k 		Cp
f±10% 		Output
W 		Current
mA 		pcs/ctn carton size
mm
220V, 230V, 240V  /  50 Hz, 60 Hz
L15.506 130 120 50 0.5 50/80 3.5 15 330 40 280x220x150
L18/20.506 130 120 50 0.5 60/95
60/95 		4.5
4.5		 18
20		 370
370		 40 280x220x150
L30.506 130 120 50 0.5 60/110
60/110 		4.5
4.5		 30
2x15		 365
365		 40 280x220x150
L36/40.506 130 120 50 0.5 60/150
60/150 		4.5
4.5		 40
2x20		 430
430		 40 280x220x150
L18/20.508 155 140 55 0.55 55/95
55/95 		4.5
4.5		 18
20		 370
370		 30 220x175x210
L30.508 155 140 55 0.55 55/110
55/110 		4.5
4.5		 30
2x15		 365
365		 30 220x175x210
L36/40.508 155 140 55 0.55 55/140
55/140 		4.5
4.5		 40
2x20		 430
430		 30 220x175x210


Origin:   Made in China.
