windshield
washer spray hose to end of noz
zle assembly. Push hose down and through
hole in cowl, and screw nozzle tightly
into
position as you would a sheet metal screw.

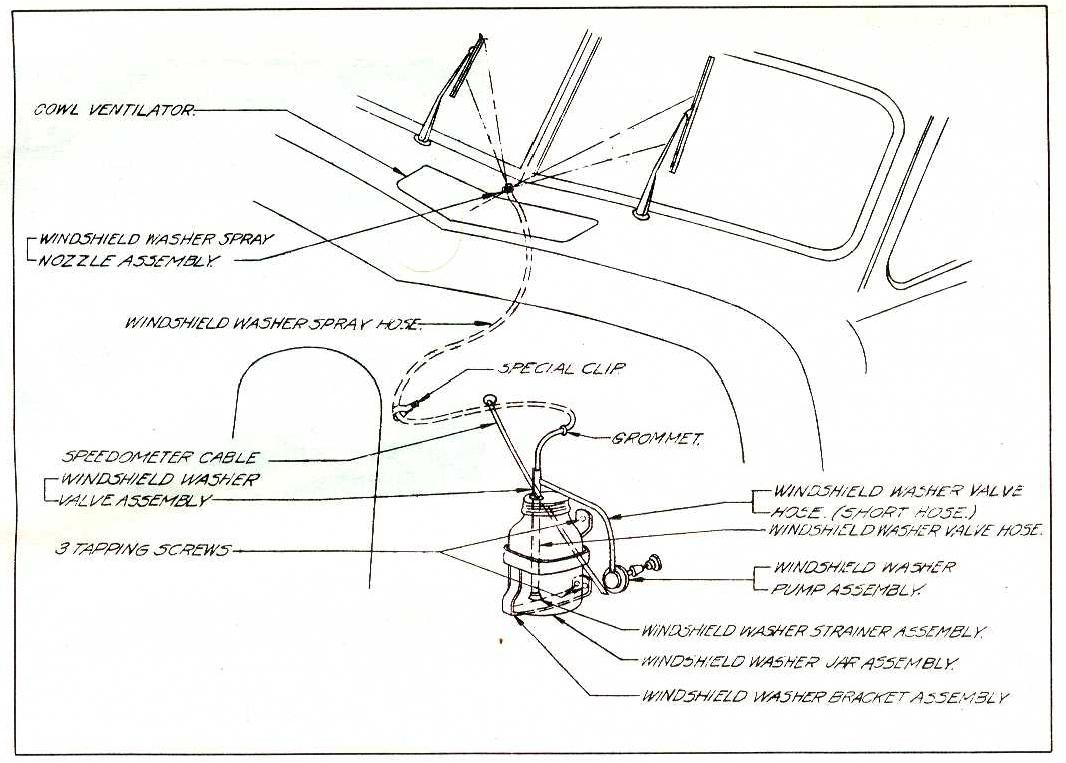

Figure 233
Locate
nozzle outlets pointing correctly,
one
toward each side of the windshield,
(see fig
ure 231).
4.
Remove cap from jar, insert windshield
washer valve assembly to grommet. Install
(2) short hose to valve assembly. Insert
strainer
to short hose as shown in figure 233.
5. Route windshield washer valve hose (short
hose) to windshield washer pump, (see fig
ure 232),
6.
Locate and remove mat fastener from fig
ure 234, then install clip and mat fasteners
as shown in figure 234.
Figure 234
