5. Temperature control valve; on right hand
side of dash, cut holes in dash mat through
punched holes provided in dash. See view
at "D." Attach medium Length control cable
to valve and tighten clamp screw securely,
cable conduit to be against the stop pro
vided. Install valve as shown using screws.
See views at "T" or "F" for optional valves,
(see figure 81).

6. Reinstall Glove Compartment.

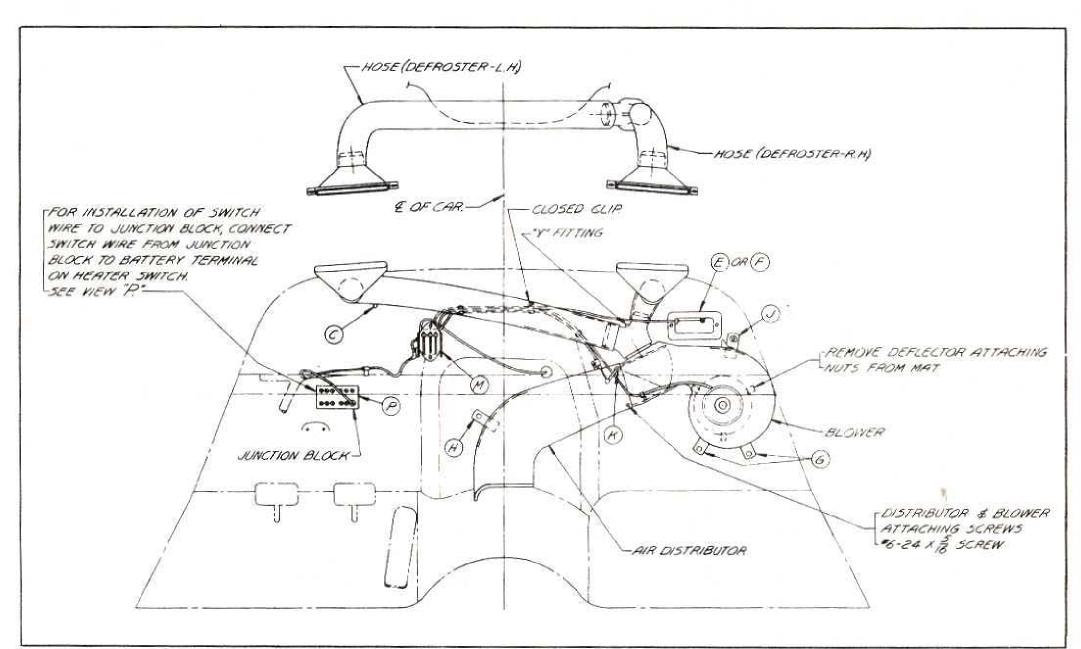

7. Blower and Distributor; attach air distrib
utor to blower with three #6 sheet metal
screws as shown in figure 81. Make sure
defroster valve operates freely. Punch
holes in dash mat for mounting bolts, en

larging the one at "H" to take the spacer.
Slide entire assembly into place and attach
as shown in figure 80. The upper mount
ing bracket on the blower is secured to dash
with a sheet metal screw inserted from the
engine side as shown in view at "r" while
the two lower mounting brackets on the
blower and the one on the distributor are
secured to dash with bolts inserted from
passenger side. See views at "G" and "13."
Attach "Y" fitting to defroster outlet on top
of distributor. (See figure 82.)

8. Controls; Assemble large rubber grommet
in dash and small rubber grommet in dash
leg as shown in figure 78. Cut a suf

Figure 81
