ficiently large hole in dash mat at the large
grommet so the cable can make a smooth
curve at this point. Mount cable bracket as
shown in view at "L." Slide the longest con
trol cable through the grommets in the dash
and dash leg, then rotate the valve to the
position shown in view at "L" and assemble
the cable to the valve lever using the rod
end clip provided. Secure the cable to brack
et using clip and screw. Rotate defroster
valve lever to the "closed" position and at
tach the shortest control cable to the lever
using the rod end clip. Secure cable to
bracket using clip and screw. See view at

PK.

9.   Control Unit. Remove the two nuts and lock
washers used to hold the left-side of the
radio grille and remove heater control
screen. See view at "M." Before mounting
control unit in place, assemble the fuse,
fuse holder body and switch wire. Then con
nect this assembly and the motor extension

wire to the switch. Attach securely the loose
ends of the control cable conduits. With air
valve, defroster valve and temperature con
trol valve in closed position and with the
top edge of the three levers even with the
scribe mark on the face of the control, tight
en cable wires securely. Check operation
for complete opening and closing of valves.
See view at "N." Raise control unit with
wires and cables attached up into place back
of instrument panel and attach to instrument
panel using nuts and lockwashers previously
removed. Attach the knobs to the levers
with the #6 flat head screws as shown in
view at "N." Connect heater switch wire to
Junction Block as shown in view at "P."
Strap heater switch wire to main wiring har
ness using three existing straps. Attach
motor extension wire to connector on front
of heater, then assemble this wire and two
control cables to dash mat with closed clip
as shown in view at "U."

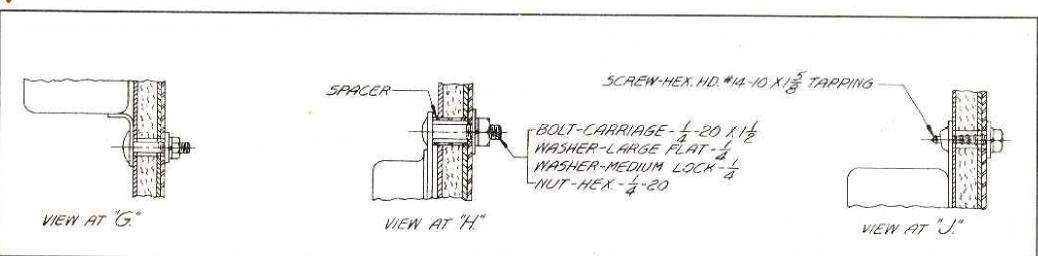

Figure 83
