Procedure
for Installation of Trunk
Guard
on All Model Passenger Cars.
1.
Place cross bar opening on the two rear
bumper guards and push cross bar towards
front of car, until cross bar openings are
over bumper guards.
Place
cross bar clamps on bumper guards
and use two cap screws and lock washers
furnished on each bumper guard to hold cross
bar clamp in place and tighten securely,

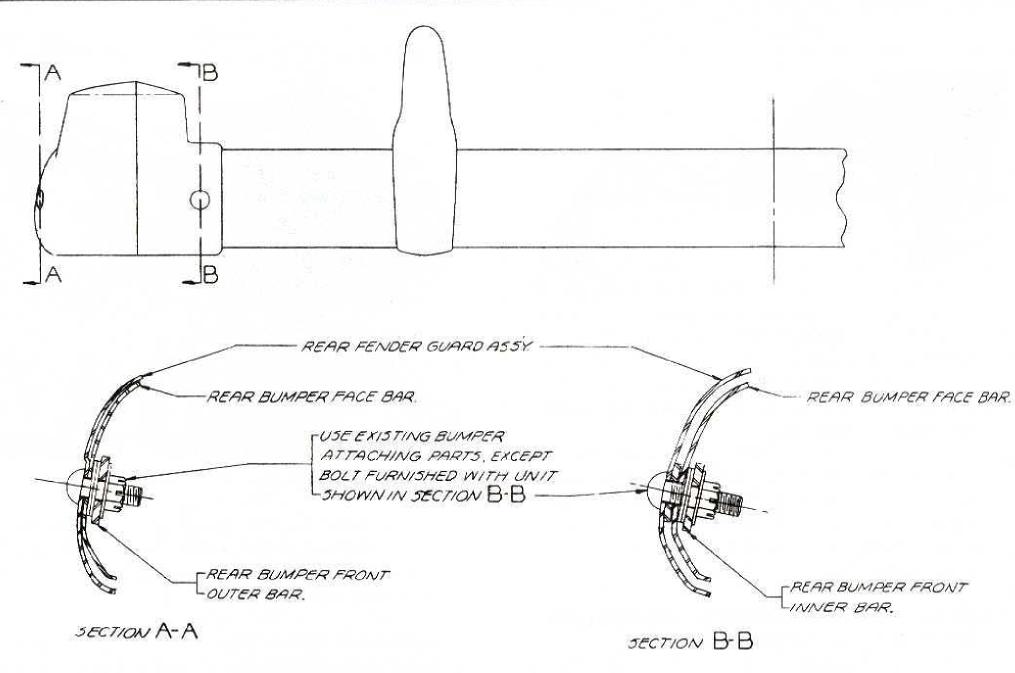

(see figure 71).

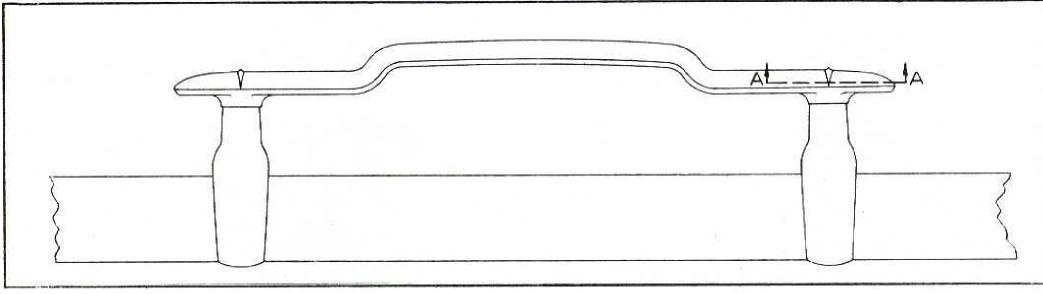

Figure 69 Approximate Flat Rate Time .3 of an hour.
