Page 3
Interior details of the HH60 J.
The Jayhawk interior is medium blue grey floor, and lighter grey walls/ceiling.
There are controls for various searchlight functions, winch controls, radio interfaces etc all over the
aft cabin. Radio rack is behind pilots seat, emergency gear behind that along wall, and rescue basket
stored vertically along the same wall. Opposite that is the seat I was sitting in to take the photos.
the photo I took of that seat did not save...too bad. Nonskid tape is applied to the floor of the cabin.
Cockpit is flat black from the door line forward as usual for Army helos.

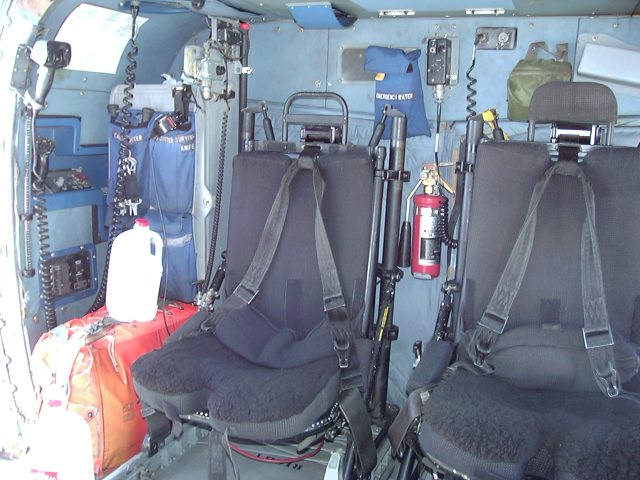

back wall loooking in from big sliding door.
Emergency water in blue container between seats.

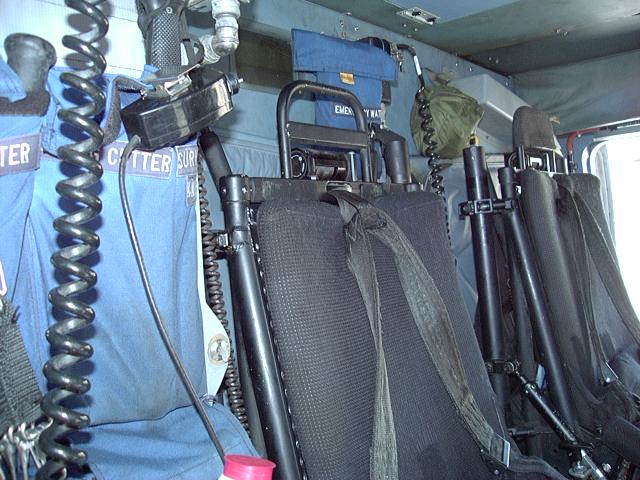

Seats are very similar to pilot seats with crash resistant mounts.
Hoist control and searchlight controls along the side wall, emergency gear
and water in bags, Intercom cords, first aid supplies etc.

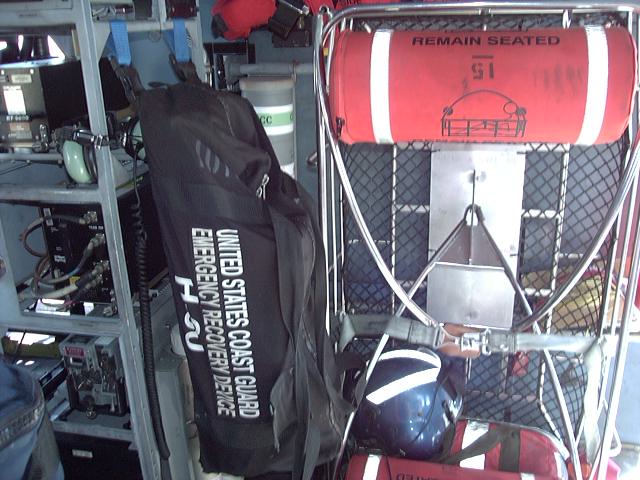

Radio rack, emergency gear and the recovery basket.
Helmet is sitting atop the floatation bag on the basket.

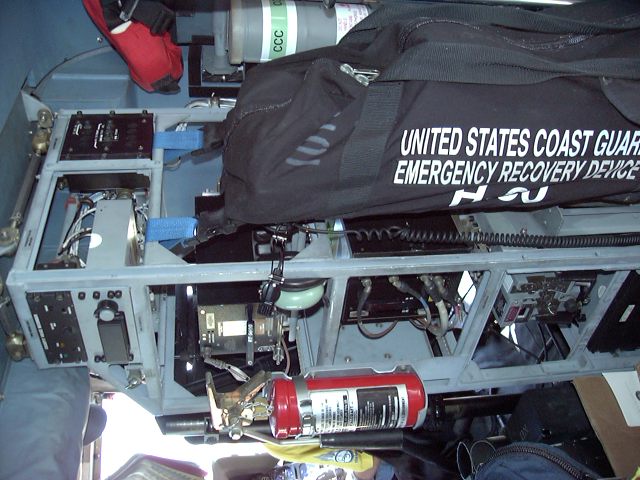

had to turn the camera sideways to get it. Radio rack has much of what is
kept in the nose of average Blackhawks removed to the back cabin.
