Misc. Archives

The following files are a result of a few projects I have done, and I thought it might
be interesting to see some details. I hope you can get something out of them.

Here is an assembly routine for the TI-86 that I wrote.
Sound Blast - A sound playing routine

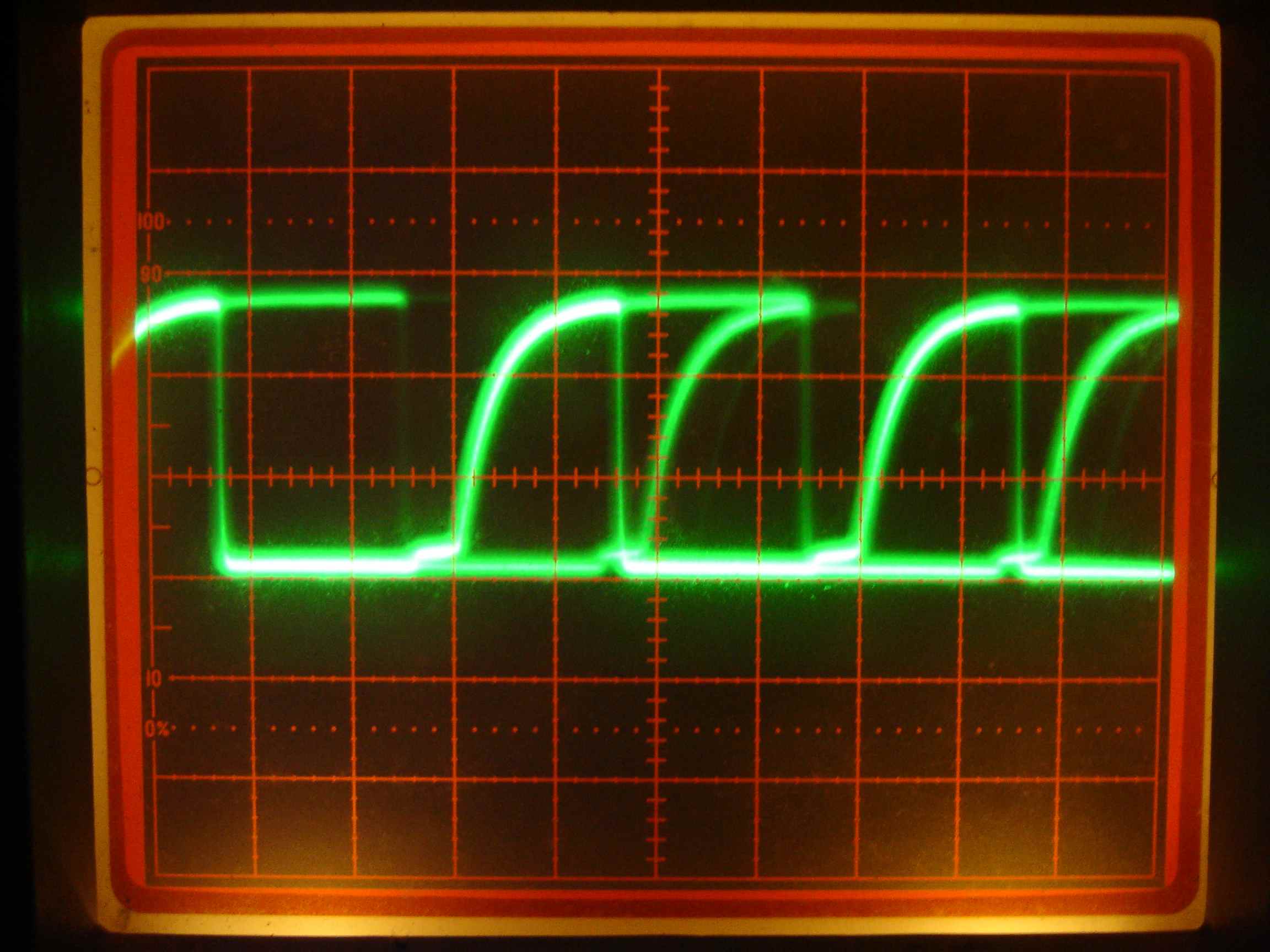

The above pictures are shots of an oscilloscope hooked up to my TI-86 running a program using my sound routine. The first one is a medium frequency, while the second is the highest one attainable on the TI, which is 46.5 kHz. You can see a bit of overlapping on the second one, but the sound is quite pure.

Click image to view full size!

The above is a picture of a diagram to build a headphone adapter. Make sure you obtain a correct headphone jack. It's the one where you stick the headphone plug into, not the actual plug. Click the picture to see it alone.
