Fuselage

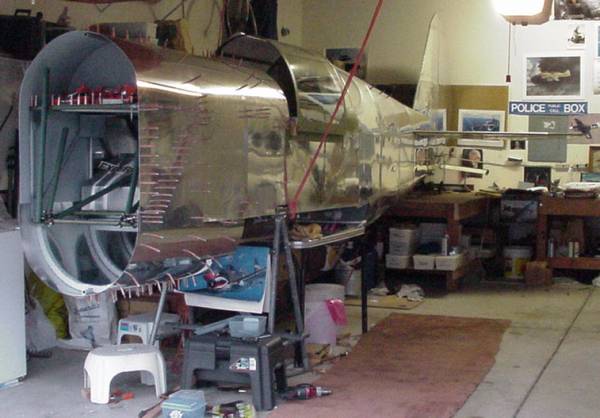

portside

The fuselage is constructed out of tubular steel and aluminium sheeting. It was then skinned with .020 inches of aluminum sheets. Small steel plates will be welded into key areas such as the landing gear struts for extra strength. The tubular welds were completed by a professional welder in an off site shop. The fuselage construction is being monitored by an FAA inspector at various phases. There's no deadline to meet, so construction is proceeding as time and money permits. Even so, the progress of this replica project is fast and plainly visible.

baggage compartment fuel spout bellcrankfuel pump

                        Baggage Compartment                           Fuel Spout                                       Bell Crank                                     Fuel Pump

underside of fuselage

Control Rods

nose art

Work is proceeding on the fuselage as the vintage styling begins to take shape.
