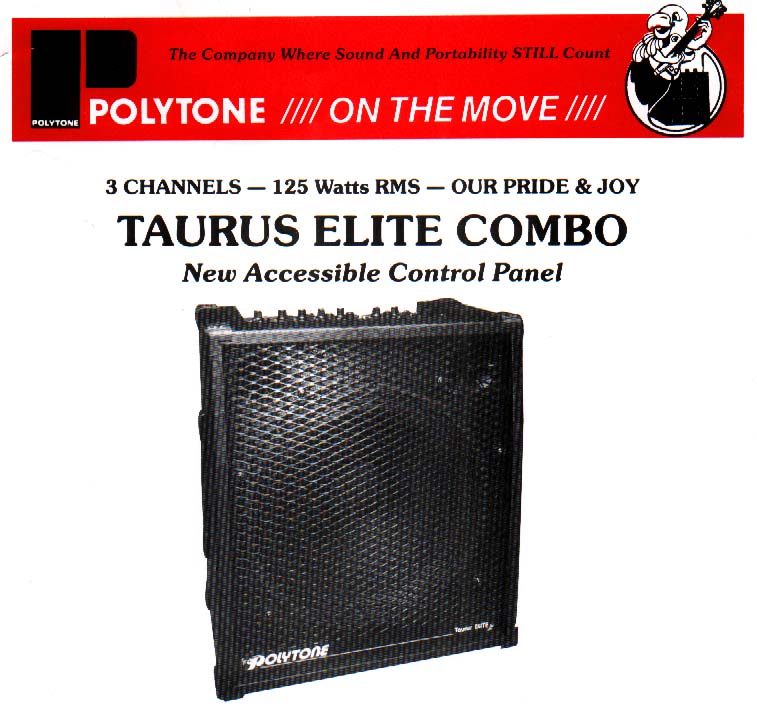

Taurus Elite Combo
125 Watts RMS
3 channels - 6 inputs
Individual Bass, Mid, Treble, Volume, Reverb controls per channel
3 position Brite/Dark switch
2 inputs (High-Low) per channel
Master Volume and Master Reverb controls
Potentiometer for attenuation of Highs
RS Modulator (chorus) Channel 1 (remotely controlled)
Hammond 3-spring Reverb
Stereo jack for RS Modulator On/Off and CHORALE/FAST
Output/Input jacks for EFFECTS LOOP
Output Potentiometer for Return Level and Input Potentiometer for Send Level
Pre-amp signal MAIN OUT
Lower rear: exterior speaker and headphone jacks
15" speaker and 2X Horns
Touch Black Textured covering (NEW)
Roadworthy Steel Mesh grill (NEW)
Wheels and dual footswitch included
35 lbs. approximate weight
20 1/2 " H x 18" W x 12" D
Cover optional

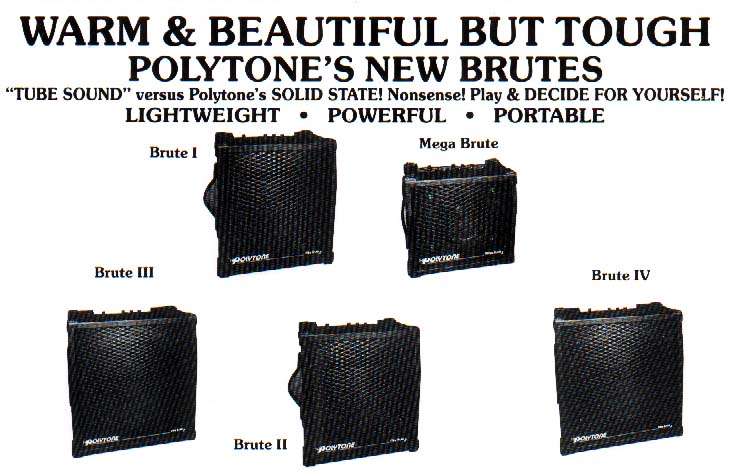

Ahead of their time and now into the 90's continuing to give players what they need; the Brutes' redesigned control panel includes individual POTS, EFFECTS LOOP, MASTER VOLUME, remote footswitch Jack, Preamp Signal Out, CH 1 Clean, Ch II Clean/Overdrive
110 wats RMS (Mega Brute 80 watts RMS)
2 channels switchable: CLEAN & CLEAN/OVERDRIVE
Individual Bass, Mid, Treble, Volume controls
3 position BRITE switch Boost/Cut highs
Master Volume
Studio-type 3-Spring HAMMOND Reverb (Brutes II, IV & Mega Brute)
2 Inputs (High & Low)
EFFECTS LOOP OUTBOARD - Input/Output
Preamp Main Signal Output Jack for POLYTONE Sidekick cabinets or other amps
Stereo Footswitch Jack for remote control of CLEAN/OVERDRIVE and REVERB
Foot-switch optional
Lower Rear Panel: Jacks for Exterior speaker and headphones
SPEAKER:
Mega Brute-heavy duty 8" speaker
Brute I/II-heavy duty 12" speaker
Brute III/IV-heavy duty 15" speaker
Tough Black Textured covering - NEW
Roadworthy STeel Mesh grill, heavy duty stackable corners - NEW
Approximate weight: Mega Brute - 19 lbs., Brute I/II - 24 lbs., Brute III/IV - 28 lbs
Dimensions:
Mega Brute - 11 1/2"H x 14 1/4"W x 7 3/4"D
Brute I/II - 15 1/2"H x 14"W x 10 1/2"D
Brute III/IV - 18 1/2"H x 17"W x 10 1/2"D

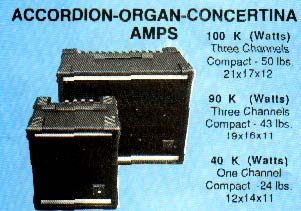

100 K (Watts)
3 Channels
Compact - 50 lbs.
21x17x12
90 K (Watts)
3 Channels
Compact - 43 lbs.
19x16x11
40 K (Watts)
1 Channel
Compact - 24 lbs
12x14x11
USED AMPLIFIERS
MODEL
Cordovox-Leslie CL, 10 + 20, Blk, Excellent, $195 + $275
Spectra 4 Channel P.A. Head, W Case, 125 Watts, MINT, $425
PeaVy Band II, 65 AMP, 2 Inputs, Reverb, $295
Giuletti, Small Amp, 2 inputs, 75 Watts, Blk, Excellent, $295
Fender Bass, 2 inputs, 12" Speaker, MINT, $225
Leslie Wood Cabinet Model 330, 15" Speaker, W Horns, Pre-Amp, MINT, $595
Roland, Small Keyboard Amp, Silver Gray, Excellent, $295
