 The purpose of this project is to collect Water Hyacinth from the lakes and watercourses and convert it profitably to gas, solid and liquid fertiliser and thus make use of a disaster to generate employment and wealth. Initially the object is to set up a prototype business complex that can be replicated all round Lake Victoria and the other affected areas. The end result should be to set up a new industry.

There are three tasks that must be done successfully.

1) Collecting the hyacinth from the lake and delivering it to a processing site.
This may need various kinds of machinery, such as floating harvesters. So far experience of these seems to be unpromising as they haven't worked successfully. The machinery has been imported by such organisations as the World Bank. There may be scope for local invention and design to improve this machinery. There are also the health implications for workers in contact with water infected with Schistosomes (Bilharzia).

2) Processing it into as many saleable products as possible. Initially these are:

i) Biogas to be used to substitute for charcoal, firewood and oil products
ii) Solid fertiliser (compost) to be supplied to farmers, especially coffee producers
iii) Liquid fertiliser to be supplied to farmers
iv) Carbon dioxide (tentative) to be used to enhance growth in tunnels (this may be left for further research).
There may be other products possible from this weed (such as paper) to be discovered by research.

 Collecting the weed from the Lake
At this point I don't know how this should be done. The main problem is Bilharzia (Schistosomiasis). There is no vaccination against this disease. Anyone who spends time allowing lake water to contact the skin is in danger of being infected by the parasites (I have had it myself.) Allover protective clothing is impractical in the hot climate. Whether there is any machinery that could collect the weed without human contact with the water is something I don't know yet. Even if there is, the cost could be too high to be covered by the earnings from biogas and the other commercial activities proposed in this project.

 Biogas technology is fairly conventional now. There are two possible methods of digesting water hyacinth. Experiment may show which is the most suitable.
One is to process it in batches in a series of tanks to be filled, allowed to digest for about 28 days (Gotaas) and then emptied. The other is to shred it into a slurry and digest in a continuous process, as cow dung is customarily used. Experiment will show if the latter method is suitable. The usual practice in farmscale biogas plants is to liquidise solid vegetation wastes, such as food wastes. Thus the necessary machinery is available - for a cost. In areas with low wage rates batch systems may be cheaper than buying expensive machinery.

This will need:

  • i) Digestion tanks
  • ii) shredders
  • iii) Gas holders
  • iv) Pipes and other fittings
  • v) A supply of animal manure or other nitrogen.

All these are locally available (except possibly shredders).

There is a technical question that still needs to be established. How much nitrogen from animal manure is needed and where it will come from. One method might be to feed some of the Hyacinth to animals - pigs have been suggested - and use the manure in the process. This implies an animal farm as part of the project, or associated with it. There may at present be animal farms with unused manure outputs. That is, I have noticed in Africa such enterprises as chicken farms do not always value and utilise their manure. They could be contacted and invited to sell it to the Project.

Given the fact that Hyacinth is almost unlimited in quantity the supply of nitrogen for digesting it may be a limiting factor. It might be necessary to add inorganic nitrogen such as ammonium nitrate (see below). But human waste is a possible source.

Another source might come from the other catastrophe facing the Lake. This is the Nile Perch and its associated industries. Nile Perch fisheries supply factories that fillet the fish and prepare it for the European market, while producing huge quantities of low grade waste - some of which is, shamefully, thrown away to be scavenged by local people who have lost their former supply of fish (the Nile Perch has eaten every other fish in the Lake). Some of these wastes could supply nitrogen for the biogas project.

3) Selling these products.
i) Selling biogas may in the first place mean setting up an "industrial estate" where users can set up their businesses near the biogas digester. These would be activities that need heat. An obvious candidate is a bakery; another is a potter or earthenware producer.

Thus these businesses would rent a site within reach of the biogas digester and be supplied with gas, perhaps using a meter for payment purposes, or possibly paying a flat rate as part of the rent.

In the long run, if the amounts of gas produced increase greatly, a gas distribution system might be possible to lead gas to users. Probably it is unlikely that the supply of gas could be enough for general urban domestic supply, but we must remember there are huge quantities of weed in the lake. A gas distribution system of this kind needs to be designed to professional and Natural Gas standards by an organisation like British Gas (or whatever its current name is).

However, biogas would not necessarily replace all uses of charcoal and bottled gas (LPG). Charcoal and LPG are portable and are useful for such things as roadside food kiosks.

 Can biogas be compressed and put into cylinders to sell?

It is not practical to put biogas into cylinders to sell.

The gas needs to be used within a fairly short distance of the digestion plant served by a pipe, which is why I propose a small industrial estate near the site of processing. The techniques for compressing the gas into cylinders are expensive, both in apparatus and energy - some of the energy needs to be used in compressing the gas. All the gas should be used on the site. If there is enough to produce electricity, that can be used off the site, possibly by sale to the grid.

The gas people buy for cooking at present is LPG - Liquid Petroleum Gas. This is mainly Propane, derived from oil. Inside the bottle it is liquid, because at ordinary temperatures under pressure it is a liquid and when the pressure is released some of the liquid becomes a gas.

Biogas doesn't work like that. Methane is only a liquid under pressure at very low temperatures. Some Natural Gas is compressed at low temperatures and transported to other countries in special ships able to carry the cold liquid. But this is not possible on a small scale. Moreover, biogas is not pure methane, as it includes about one third carbon dioxide. I don't think a cylinder containing compressed biogas can contain enough to be useful in the house and would need refilling far too often to be useful.

However, see this article.

Probably a compressing system would only be worth doing if the plant is on a large scale. Is the Hyacinth project big enough? Research and practice is needed. Certainly a compressing system should not be planned at the beginning. See also google

ii) Selling fertiliser is a different business and is linked to Organic produce.

 Profitability
How can these processes be made profitable? The revenue comes from sales of the various products. What can be charged for these? Only observation of the market can answer that. To some extent compost and liquid fertiliser may be a substitute for existing products, many of them imported.

Organic standards
Sir Albert Howard in "Farming and Gardening for Disease and Health" noted that coffee trees developed Coffee Berry Disease when the soil lacked humus. This was confirmed by Tim Hutchinson on his biogas farm at Fort Ternan in Kenya - his coffee didn't get the disease, he never sprayed but supplied plenty of fertiliser from his biogas plants. Thus a coffee farmer might be supplied these products and charged what he pays at present for spray against CBD as well as what he pays for artificial fertiliser. In return he can be enrolled in an Organic Coffee marketing scheme and receive a higher price for his coffee. (If there is no local equivalent of the Soil Association, one will have to be set up, along with a marketing organisation to sell Organic Coffee - ask Fair Trade).

There is a problem here. Recent report by the BBC says the coffee industry has become so corrupt that the farmers in Kenya get no return for their coffee as all the profit is syphoned off by the middle men and fat cats in Nairobi. See also Kenya report.

Interesting Reading
 Albert Howard and Wendell Berry - Organic Gardening and Farming

The Soil and Health: A Study of Organic Agriculture)


Mein landwirtschaftliches Testament
 Harold B Gotaas

Composting Sanitary Disposal & Reclamation
Composting: Sanitary Disposal and Reclamation of Organic Wastes (Monograph Series : No 31)
See also book list

 There is a caveat here. If it is necessary to add inorganic nitrogen to the digester to make up for a shortfall in animal manure the Soil Association may refuse its certification to the product. One way round might be to add volcanic dust for trace elements. Negotiation with Organic Standards Organisations will be necessary.

 (Sir Albert Howard was Chief Agricultural Officer for India in the 1920s and founded the Soil Association. Another of his observations was that cattle reared on soil with good humus did not catch Foot and Mouth Disease even when in contact with infected beasts.)

Thus these organic products add value to agriculture in ways other than direct sales. There would probably be enough compost from these biogas plants to convert large parts of Uganda's exports to Organic standard - a higher value product. Both the farmers and the Hyacinth processors should benefit from this added value.

 Moreover, there will be two distinct products to sell: liquid and solid. Hutchinson gained most of his nitrogen from cows via the animal manure only digester. We shall be using any of this liquid in the hyacinth digester. The liquid output from the hyacinth digester may not have the same nitrogenous quantity as Hutchinson's liquid, and may not have the same effect on Coffee Berry Disease, for example. (Howard, got the same result from ordinary compost - he said it was the humus content that cured the CBD. Therefore the solid waste would be valuable for this, too, as it is equivalent to ordinary compost.)

 Quantities

Profitability probably will not occur until the quantities being processed are of the order of several tonnes a day. If the project is processing one tonne of weed per day there will be an output of about 30 cubic metres of gas per day. The amount of fertiliser produced will be of a similar order - one tonne a day. Can these outputs pay for the collection? It is difficult to see how the calculation can be made before a pilot project is running.

What needs to be known is:

  • 1) Wage rates and the labour cost of collecting the weed from the lake.
  • 2) The likely price and revenue to be received from selling gas.
  • 3) The amount of revenue from selling fertiliser products.
  • 4) The cost of building and operating the plant (including maintenance, depreciation and reinvestment).
 World Climate
As the biogas produced is to some extent a replacement for oil products and is solar derived there may be some scope for financing it from any funds available to combat global warming. The gas users will be transferring from charcoal - which will assist forest conservation - and LPG which will save carbon from being added to the world's atmosphere. If Uganda and the other Lake Victoria states have quotas for carbon emissions there may be some scope for exploiting this. Climate money ought ideally to be used for capital investment rather than as a continuing subsidy (because subsidies can be cut off without warning and can be diverted by the wabenzi). However, see the proposals in Climate. Each biogas producer should sell its carbon credits for hard currency.
 Fishing and Transport services
Removal of the weed makes possible the use of the lake for transport (ferry services) and fishing. It would be appropriate for these industries to help pay for the work of clearing the weed.

 Management skills
It must be clear that profitability is by no means assured. Management skills in controlling costs and getting the best price for all products and services will always be important, and may make the difference between success and failure.

Ownership
As there is not an excess profitability the best ownership might be as a cooperative of the workers, initially as a non-profit distributing trust. That is, a "conventional" owner, requiring profit, will be disappointed. If he attempts to extract profit the business would probably fail. Whether a cooperative could work can only be discovered by trying it.

 Main Project

 The Water Hyacinth Project

Object
To collect water hyacinth from the lake surface and process it into saleable products, including biogas and fertiliser, to make use of human and animal wastes, to sell biogas to local businesses and fertiliser to local farmers, especially coffee farmers and encourage them to grow high value organic coffee and other crops.

To provide paying employment and training in new skills. These skills will be: biogas processing; compost making; marketing; weed handling.
To employ existing tradesmen: pipe fitters, tank makers, transport people; masons and other builders.

To encourage the use of wind power for pumping and electricity.

 Sub-project 1
Biogas Digester
Object
To process the water hyacinth into biogas and fertiliser.
Equipment

  • shredder
  • digester(s)
  • gasholder
  • liquid storage tanks, pending sales
  • solid storage area
  • transport for sales - tanker truck or donkey carts
  • bagging plant for solid fertiliser?

Employees
Jobs needed will be:

  • unloading weed as delivered from lake
  • operating shredder
  • filling digester
  • emptying digester
  • handling nitrogen input (animal or human manure)
  • preparing output for sales: perhaps bagging solid compost, filling tanker carts or trucks
  • laying and maintaining gas pipes

Research
1. Which system to use: batch or continuous process?
a) Continuous process needs quasi fluid input. Will shredded weed behave as a fluid? If not, batch process must be used. Advantage of continuous process is that less handling is needed.
b) Batch process needs complete unloading of separate tanks. One tank would be unloaded and one filled every one or two days. If we assume a 30 day complete cycle there would need to be a number of separate tanks to produce a smooth rate of production. Probably to build separate tanks will cost more than to build a single tank for a continuous process. More labour will be needed. Possibly each tank could have a wire mesh cage to be lifted out with a crane. But then you need a crane. If it takes two days to fill there will be 15 tanks. One of them will be being emptied on any one day and one being filled, in rotation.
2. Use of carbon dioxide for growth enhancement:
running the water from the gasholder through a growing tunnel would raise the content of CO2 in the tunnel. Would this be worth doing?
3. Pricing the gas for sales. The gas will be replacing LPG, Kerosene (paraffin), charcoal and possibly electricity. The price asked for gas may have to be below that of the competing products.
4. Pricing the fertiliser products: liquid; compost. These will be the main income, so these prices are important.

 Energy Prices (1998)
All Uganda prices in pounds sterling equivalent

Price

equiv 1 m2 gas

Value m2 gas

1 tonne/day
diesel 0.62p/litre 0.72 lit 0.4464 13.39
kerosene 0.50p/litre 0.87 lit 0.435 13.05
petrol 0.75p/litre 0.8 lit 0.6 18
charcoal L4.50/30kg 1.45 kg 0.217 6.53
electricity .06p/kwh 2.2 0.132 3.56

 Column 5 shows the daily value of the biogas as a substitute for other fuels, assuming one tonne of weed processed per day.

Thus it is best to use the biogas to substitute for diesel, petrol and kerosene. People who are using these fuels may be able to pay the highest price. If there is electricity at a site, biogas is less likely to be a suitable substitute - providing the electricity supply is reliable and not subject to interruptions. Calculations made in 1973 show that LPG (bottled gas) is also a high price fuel, and biogas can profitably substitute for this too.

 Biogas can be used in fuel cells to produce electricity. This may well be the main use for biogas in the future.

see this website

Liquid fuels do have an advantage in that they can be used as portable sources, whereas biogas will be tied to a pipeline. Thus biogas might have to be sold at a slightly lower price to attract people who would value portability. The use in vehicles is possible but requires an investment in compressors and storage tanks that is probably not appropriate for this project. Compressed Natural Gas is being used for buses in some cities.

What is the future of oil prices?
The recent history of oil prices was a steady fall as new sources were found and developed. A recent London Observer article suggests there is a limit to this fall as oil is pumped faster than new sources are discovered. Clearly there is a finite limit to the amount of oil, but no-one knows what that is, nor when it will have an effect on prices.
The Observer reported that oil production is expected to peak between 2000 and 2005. Production would then begin to decline while demand continued to increase. This suggests prices would increase. This affects all pricing of solar-derived energy sources.

What it would mean for biogas in Uganda is that the value of biogas can be tentatively projected to increase after world oil production peaks - if it does. Its value for the national economy increases if we enter a period of increasing oil prices because it then becomes an important counter to inflationary tendencies.

However, others have pointed out the limit to oil pumping has been reported at intervals for many decades, and always the limit has been exceeded as a result of new discoveries.

2004 The world oil price has jumped following the Iraq war. Is this a permanent rise or will it fall again if more peaceful conditions occur in the Middle East? At the present price (August 2004) biogas becomes a more attractive substitute for oil products than in the recent past. Even more so in 2008 (see Peak Oil article).

 Compost and Liquid fertiliser prices
It is difficult to estimate the value of the fertiliser. However, given that farmers will gain a higher price for their produce - organic coffee sells for three times the amount of non-organic at the auctions - some of this extra value should be captured by the weed processor. The organic producer will no longer have to pay for pesticide sprays, especially the fungicides for Coffee Berry Disease (check that this is found in lowland coffee). The main income for the project will be the sale of fertiliser.

The British company Tropical Wholefoods buy other organic products from Uganda. These too would be potential customers.

 Sub-Project 2

A sub-project might be the production of the Motswedi Wind Pump.

Most of the suitable sites for water hyacinth processing projects have the typical convection wind systems that make wind pumping the best source of energy for lakeside projects. This is especially true of the Rusinga area and Bukoba in Tanzania. A strong wind blows up at about 11.00 in the morning after the land surrounding the lake heats up and then blows until about sunset.

The Motswedi wind pump was designed for use in Botswana where a large number have been built. Its design principles are to build it from parts available on the market using local labour. These principles could be applied to the Lake Victoria region. I suggest the designers - General Engineering Management - be asked to set up a factory to produce the Motswedi pump for use on the initial water hyacinth project and in the hoped for replica sites that will follow.

As it includes a rotating shaft this wind pump can also be used to generate electricity in small quantities.

 Sub-project 3

Workshop/factory to build Motswedis

Needs

Project Manager
Workers
Building and yard

Object
To assemble and sell Motswedi wind pumps for use in lakeside convection wind sites. UK price is about £5000.

One pump will be needed for the demonstration project. Every replica project will need one for the water supply to feed the biogas processors and other site needs for raw water. The Rusinga site could use water for irrigation during the dry season. Probably other sites could as well. Irrigation might be a large scale use for Motswedi pumps.

The Motswedi was designed by Max Ewens, of General Engineering Management, 3 Holmwood Drive, Leeds LS6 4NF.

Research
1. Adaptation for the needs of water pumping from lake level to a storage tank - this is different from the Botswana use of this pump, which is to raise water from boreholes.
2. Electricity from the shaft as an add on. How much electricity could we expect? The main use would be for lighting and electronics.

 Sub-Project 4

Public lavatory to provide nitrogen (Urban areas)

To digest water hyacinth, consisting mainly of cellulose, a supply of nitrogen is needed. In rural areas chicken manure, cow and pig manure might be the best sources. In urban areas human manure is the obvious source.
Object
To supply nitrogen for the digester.
A by-product of this project would be to divert sewage from entering the lake or groundwater. The ultimate destination of the nitrogen will be the farms when the compost and liquid is sold.

Design
The sub-project would be to build near the site a public toilet. An attendant should be provided who will maintain high standards of cleanliness in order to attract people to use it. As this is a source of raw material the attendant would be paid by the Biogas unit, and trained thoroughly. This should be a high prestige job. The design should prevent disease being spread and protect the workers. The facility should be inspected frequently.

It should be robust to resist rough usage but be attractive enough to cause people to use it. This suggests we should be ready to build to a high standard with good quality tiles and floor.

It should be simple to use.
There should be both low floor and sitting type cubicles
Local people should be consulted before building
It will be flushed from the site water supply.

 Employees

Jobs needed will be:

-cleaning and maintenance to a high standard

Research
How should the product be treated? WHO guidelines on preventing disease spread: Cholera, Bilharzia, AIDS, parasites and so on.
Do we need pre-treatment before adding the product to the biogas digesters? What precautions would workers need to avoid infection?
Will we need sewage pumps? If so, how would they be powered?
What quantities could we expect? How much is needed for digestion with water hyacinth?

Network of projects using human waste in Kenya

 Sub-Project 5
Mini-Industrial Estate

To rent land as sites for users of the gas.

Object
To sell the gas for the best price to small businesses.

Means

To prepare sites suitable for buildings, perhaps of the informal sector type (mud walls) equipped with gas supply pipe, raw water and drainage, with removal of solid waste.

Target businesses

  • Bakery
  • Potter
  • Metal workers (foundry with ceramic chips)
  • Glasswork

These are activities that need heat, at present provided by charcoal, firewood and oil products. Other businesses might be identified that will make use of the gas.

 Personnel

Site manager
Maintenance worker(s)

Means of payment
Payment will be as rent for the site. The rent to be negotiated with the renter. Should it include gas and water as a consolidated price, or should gas be paid by the amount used? This is to be discussed. Payment by the amount used might need meters for each site, which introduces a range of technology which might cost more than the advantage. The aim should be to keep the payments simple while ensuring that the activities make a profit for the Project (rent to bring in more than expenditure on servicing the site).

 Health and Safety
The site owner (the project) shall have the right to advise and order the gas user on safe usage of the gas, to avoid explosions and fires on the site. Buildings should be inspected and the siting of burners controlled. In Uganda conditions the main provision for safety is that there must be ventilation to allow any escaped gas to pass out of the building without accumulating in the roof space (where explosions might occur).

The site owner (the Project) should control the activities going on, especially the type of waste produced. That is, renters should not build up toxic wastes, should not put wastes into the Lake, nor affect the health of people on the site and outside.

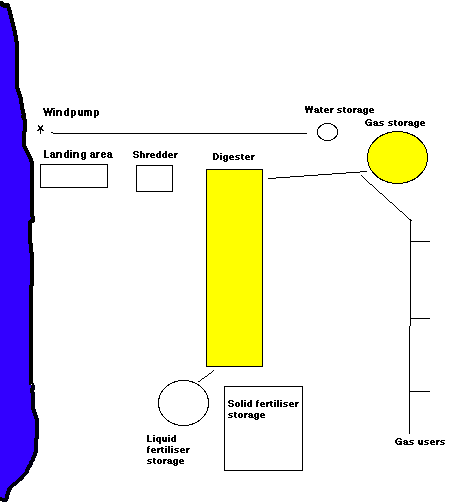

 Diagram of Site



The site is beside the lake to receive water hyacinth delivered by boat. It also needs to be connected by road to deliver solid and liquid products to customers, and to service the industries making use of the gas. It does not necessarily need electricity or clean water supplies. Thus it might be possible to site one of these projects in a place which does not at present have modern services. Electricity can be generated on site by wind, solar and from the gas.

Other Web sites

Green Trust

Last revised 1/11/11

(This plan was proposed in 1997 but didn't proceed, partly because Uganda went to war in Rwanda and the Congo - former Zaire)

 I would like to see this project happen but don't have any backers. If any reader is interested in helping with time or money I would like to hear from them.
Another site for this project could be the Niger Delta.

 In August 2009 it was announced that a large oil field had been discovered in the Lake Albert area of the Western Rift Valley. If this is developed it will change the economy of the country and probably make oil products much cheaper. Will Uganda benefit from this new industry? Who can tell? Wherever oil is the main product distortions occur and the people often see no benefit. The world's climate will not benefit from this discovery, which will inevitably be pumped.
