When retrofiting front disc brakes on my 1967 GMC G-10 Vqn, the stabilizer bar axle mounts need to be repositioned so the calipers will the stabilizer brackets on turns. Depending on the caliper mounting brackets, calipers and sway bar mounts, there are a number of methods which have been used to accomplish the proper clearances. I chose to fabricate bracket mount plates that attach at the stock sway bar position. The stock sway bar axle mount then bolts to the "new" locator position. The last row is my solution. I chose this solution because I wanted to keep the stabilizer pin as near as possible to the GM designed angles & position. |
|||
Front View Stock Location Note caliper clearance Click to Enlarge |

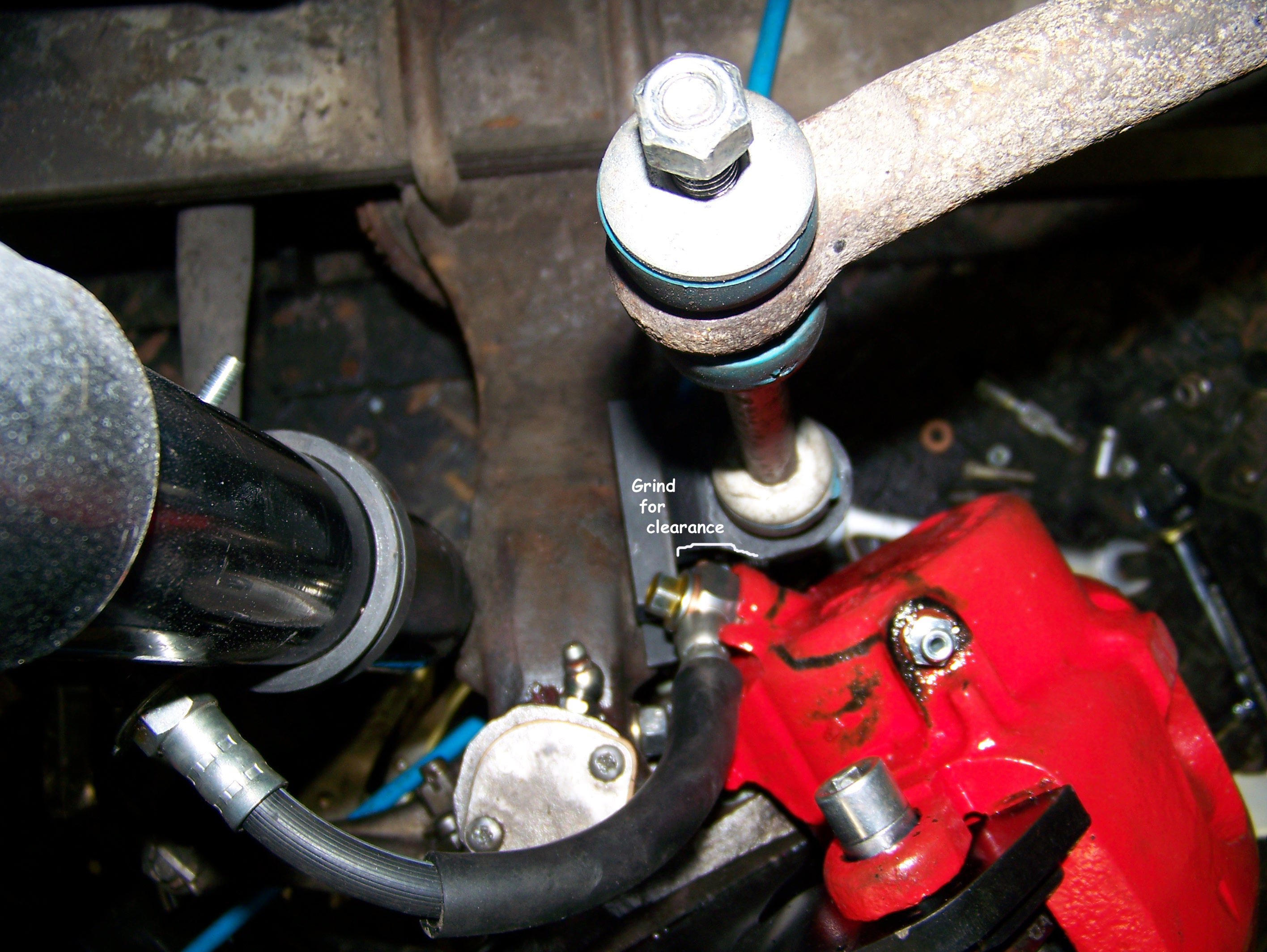

Top View Stock Location Note caliper clearance & pin mount offsets Click to Enlarge |

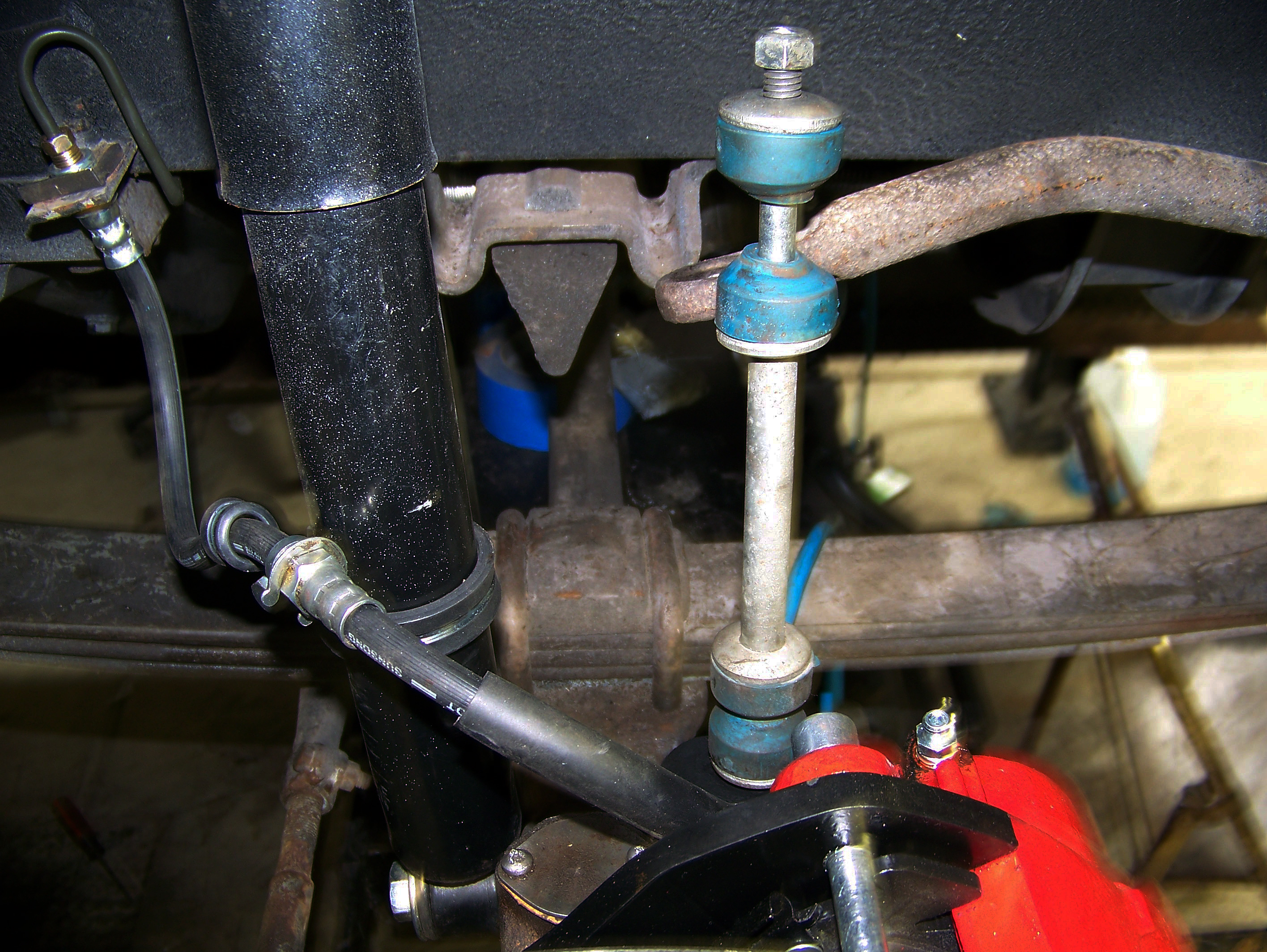

Stock
Location Note pin angle Click to Enlarge |
Stock Location Click to Enlarge |

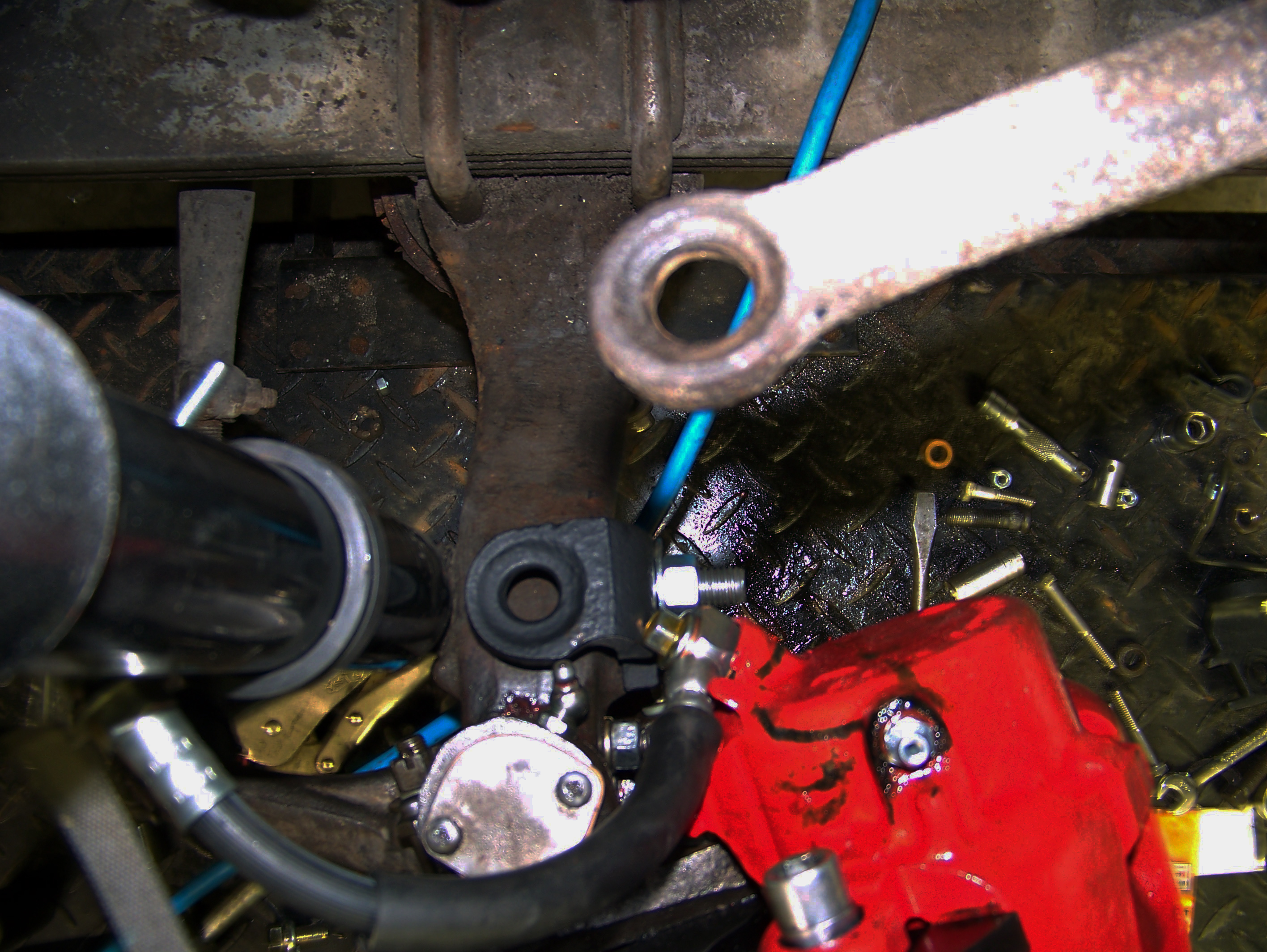

Front View Reverse Mount Note caliper clearance Click to Enlarge |
Top View Reverse Mount Note caliper clearance & pin mount offsets Click to Enlarge |
Reverse
Mount Note pin angle Click to Enlarge |
Reverse
Mount Click to Enlarge |

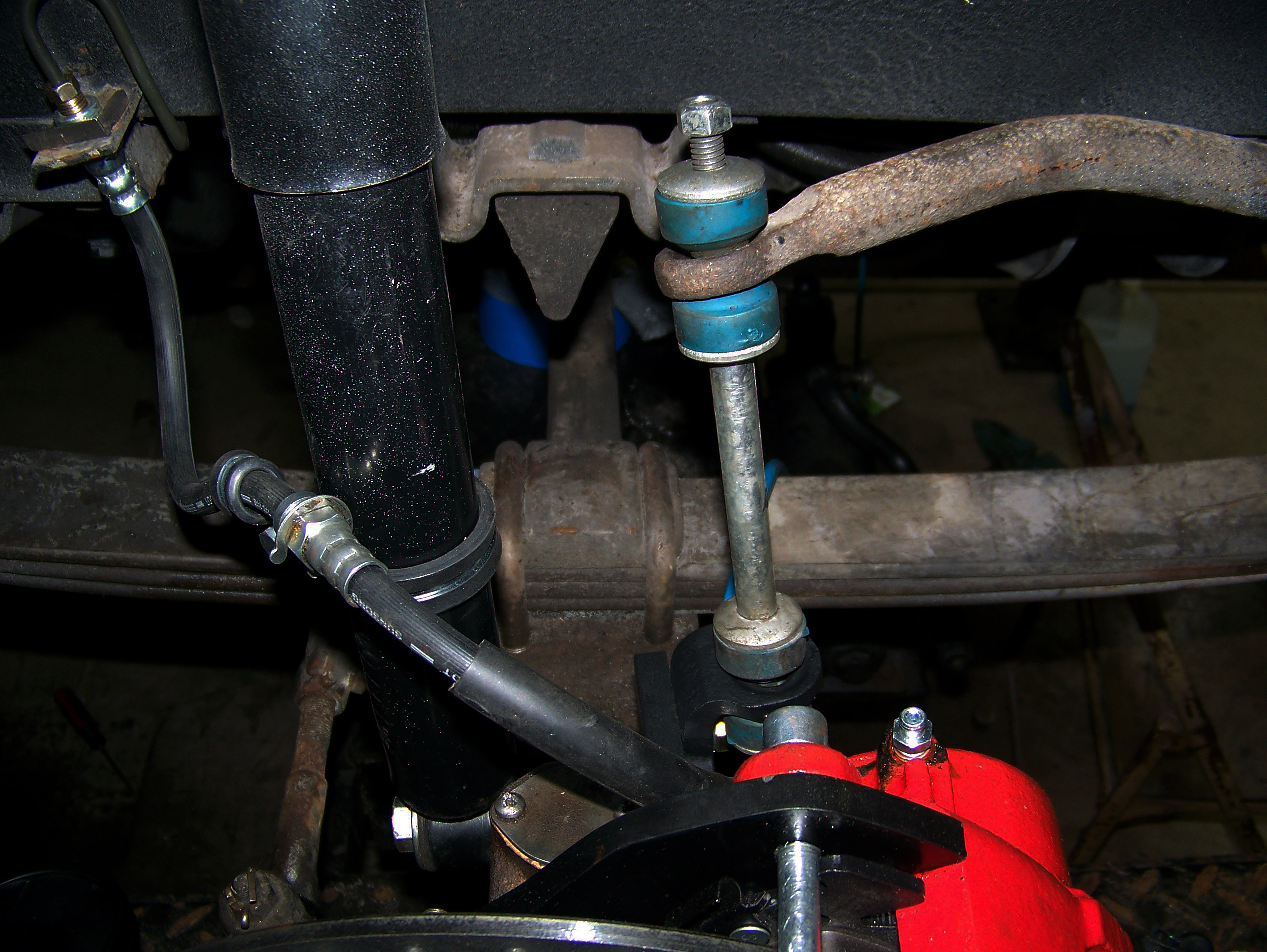

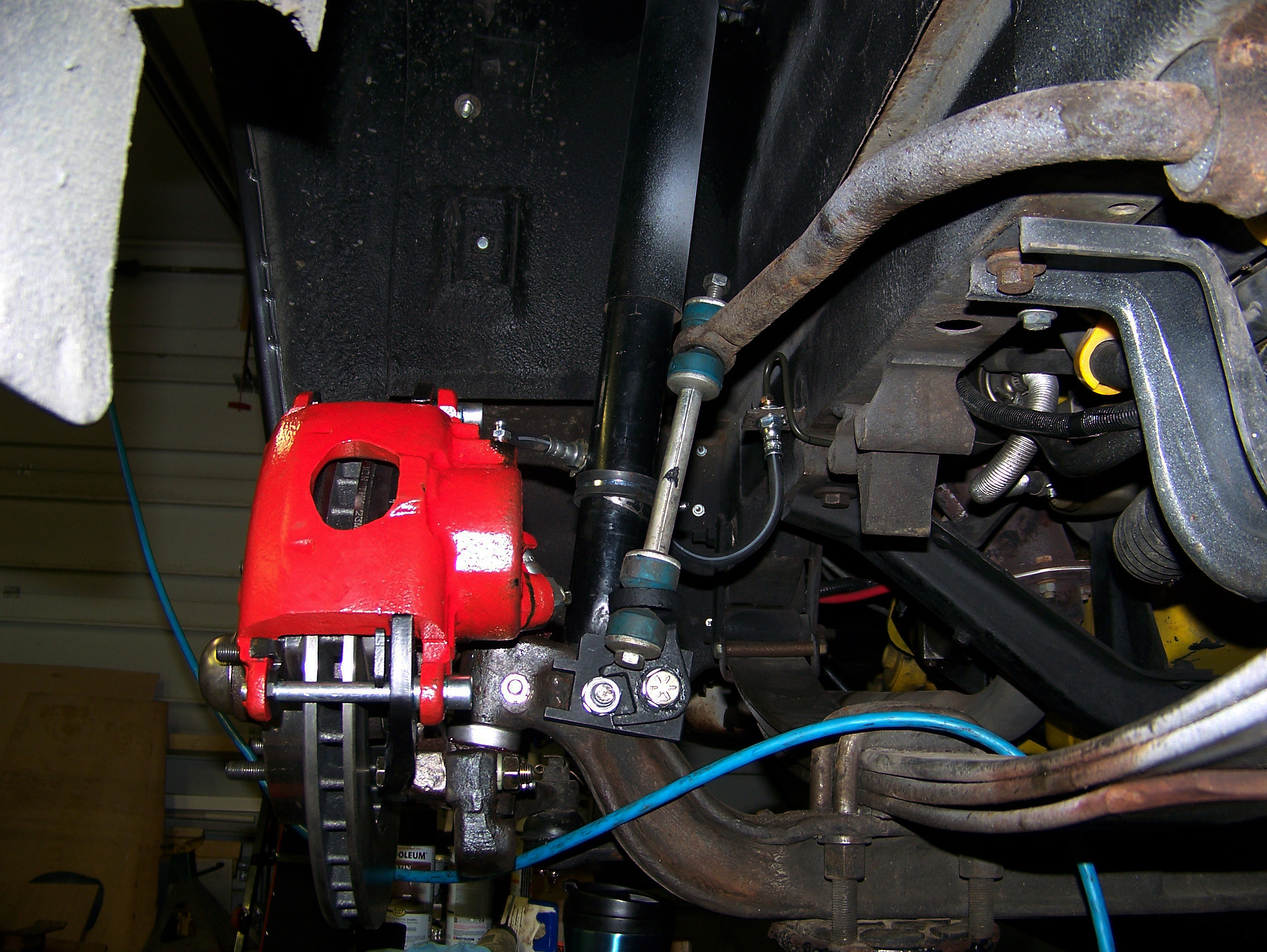

Front View Modified Bracket Plate Note caliper clearance Click to Enlarge |
Top View Modified Bracket Plate Note caliper clearance & pin mount offsets Click to Enlarge |
Modified
Bracket Plate Note pin angle Click to Enlarge |
Modified
Bracket Plate Click to Enlarge |
. | . | . | . |
