Page 13 Installation of the Pro-Jection Fuel System

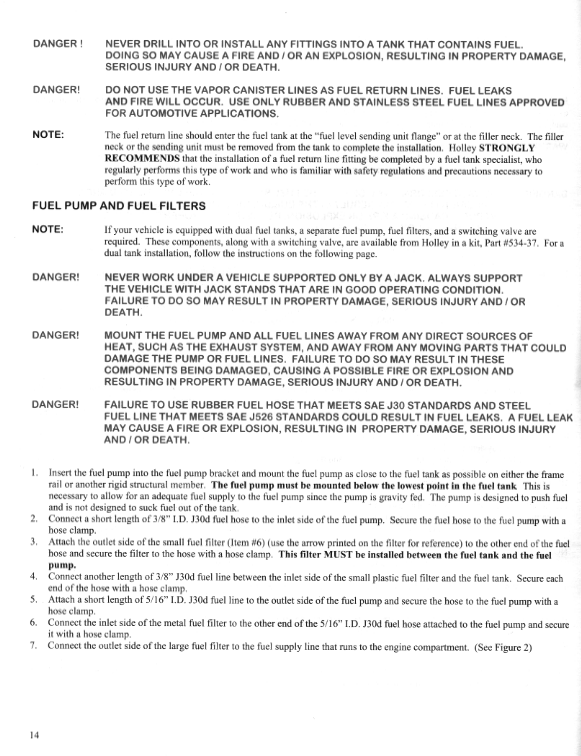

Page 14 Fuel Pump & Fuel Lines

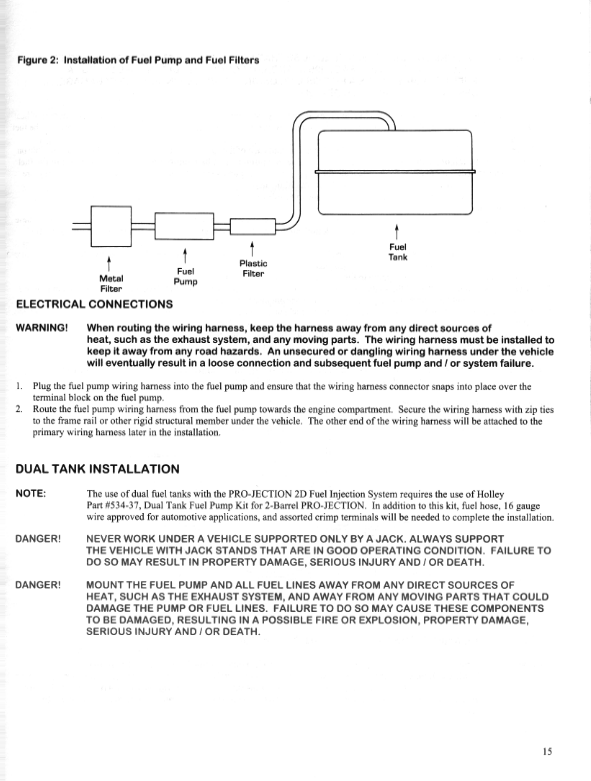

Page 15 Dual Tank Installations
Page 16

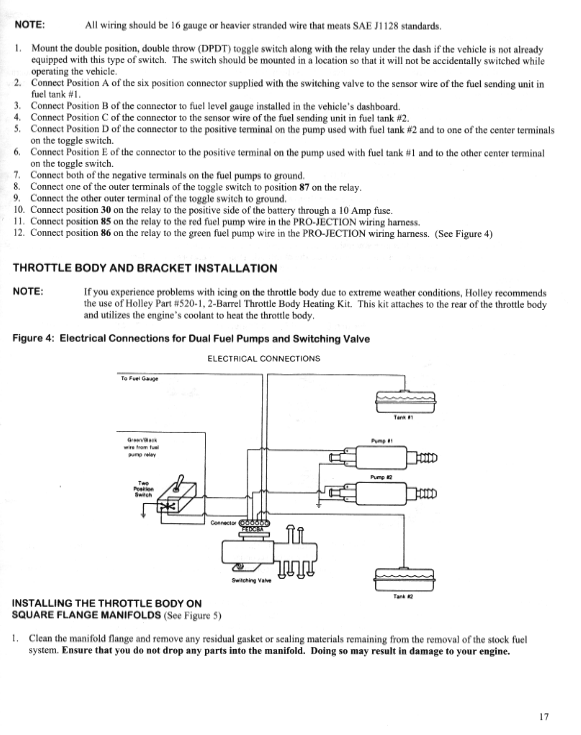

Page 17 Throttle Body and Bracket Installation

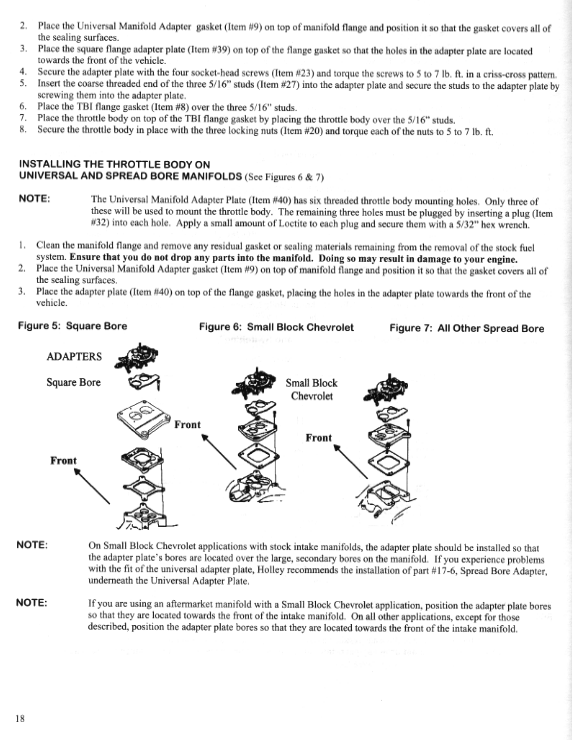

Page 18

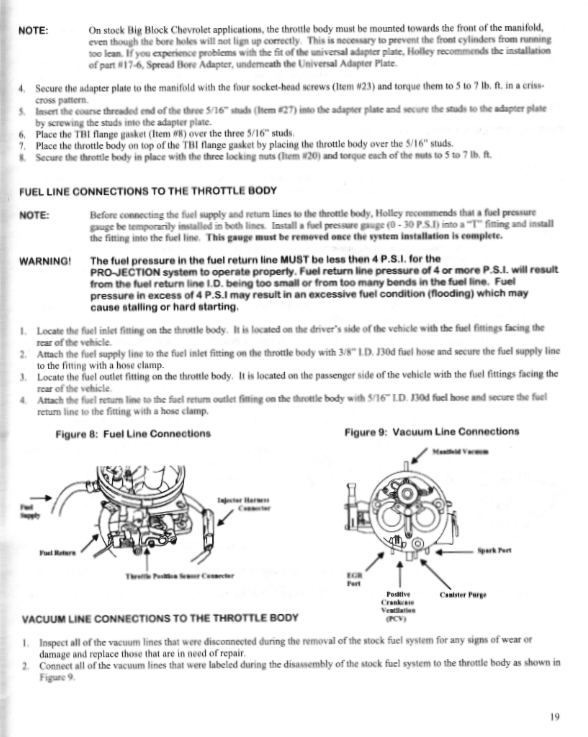

Page 19 Fuel Line Connections to the Throttle Body

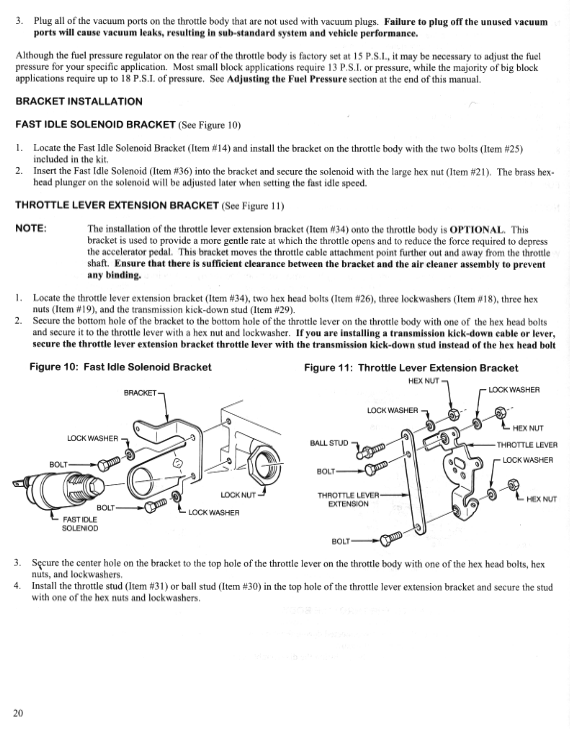

Page 20 Fast Idle & Throttle Extension Brackets

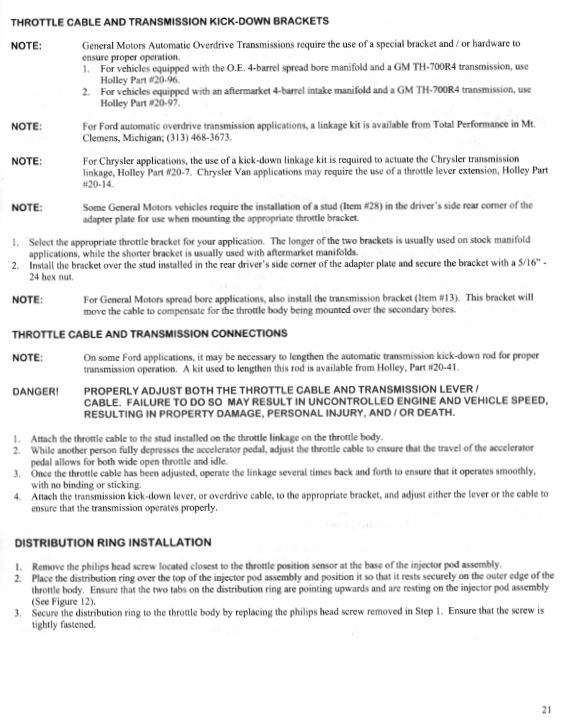

Page 21 Throttle Cable & Tranny Kick-down Brackets

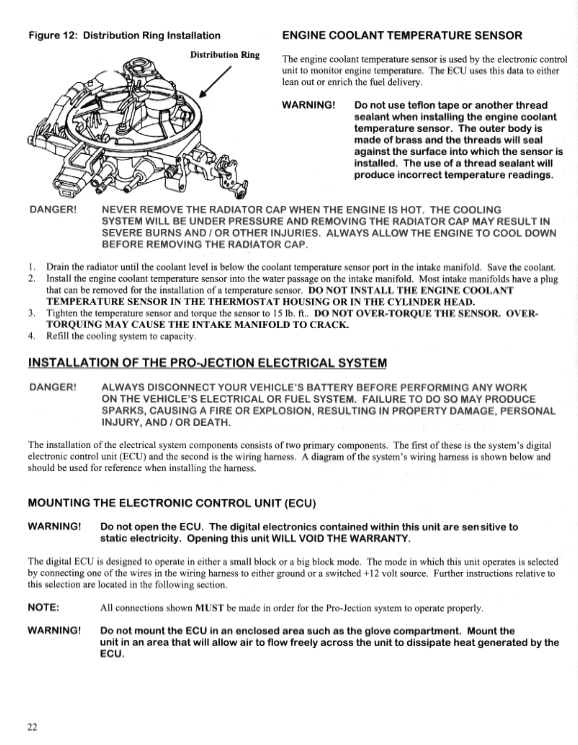

Page 22 Engine Coolant Temp. Sensor
Page 23 Installing the Wiring Harness

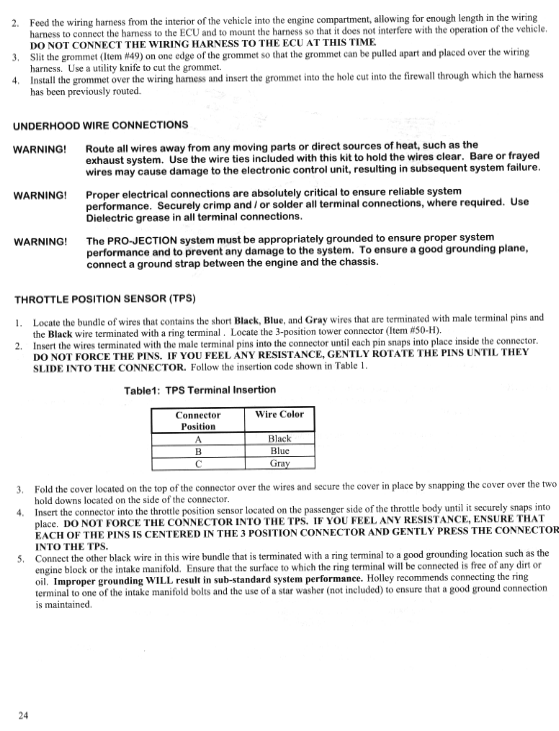

Page 24 Underhood Wire Connections
Page 25

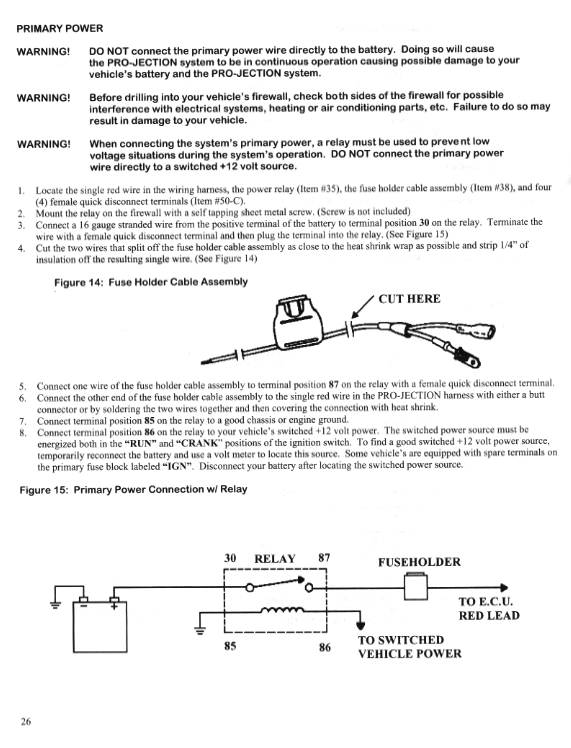

Page 26 Primary Power

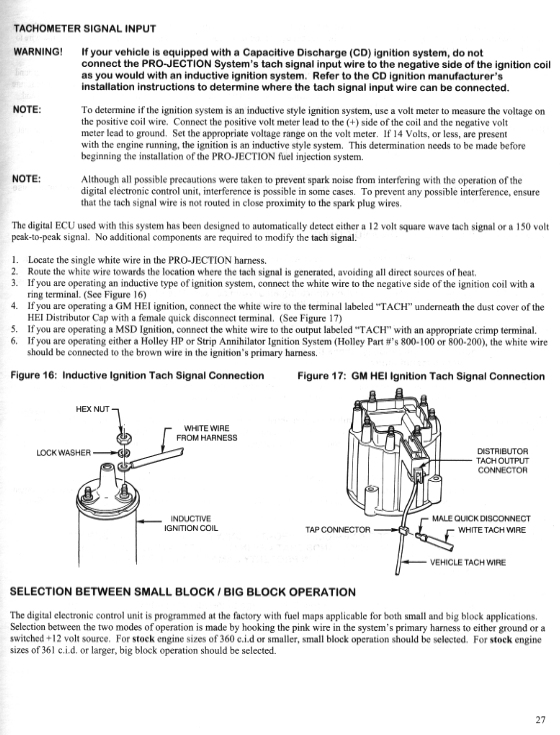

Page 27 Tach Signal Input

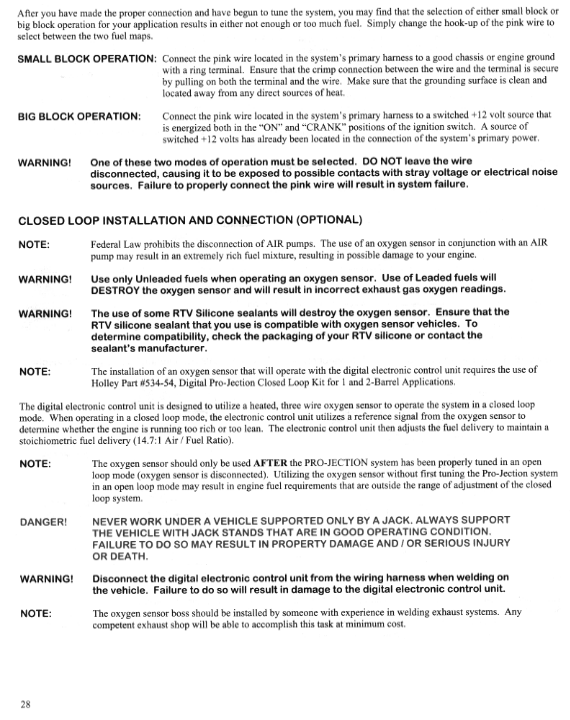

Page 28 Closed Loop Installation

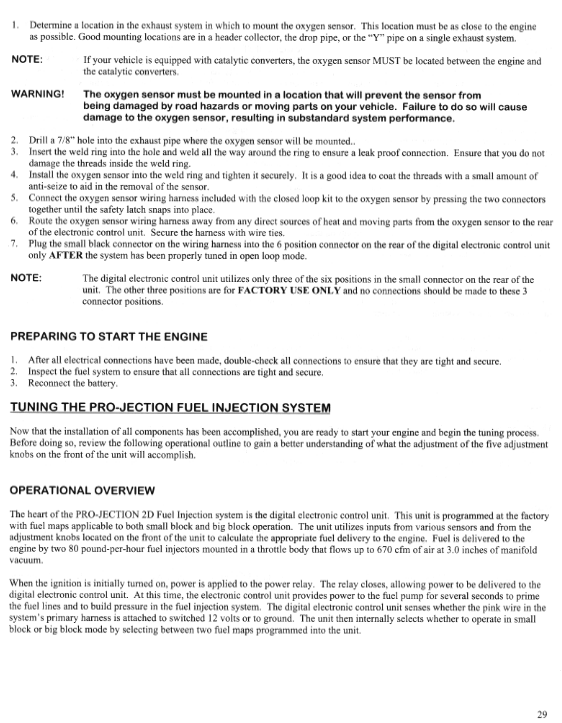

Page 29 Tuning the ProJection

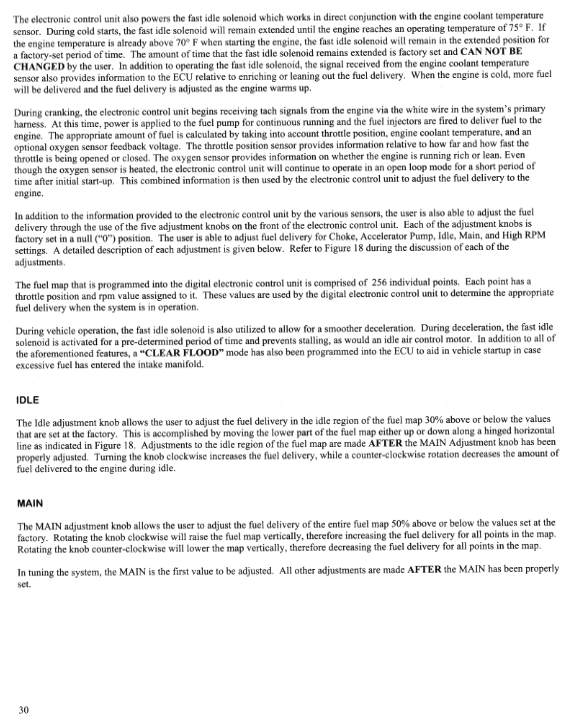

Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
