PCI Serial Cards

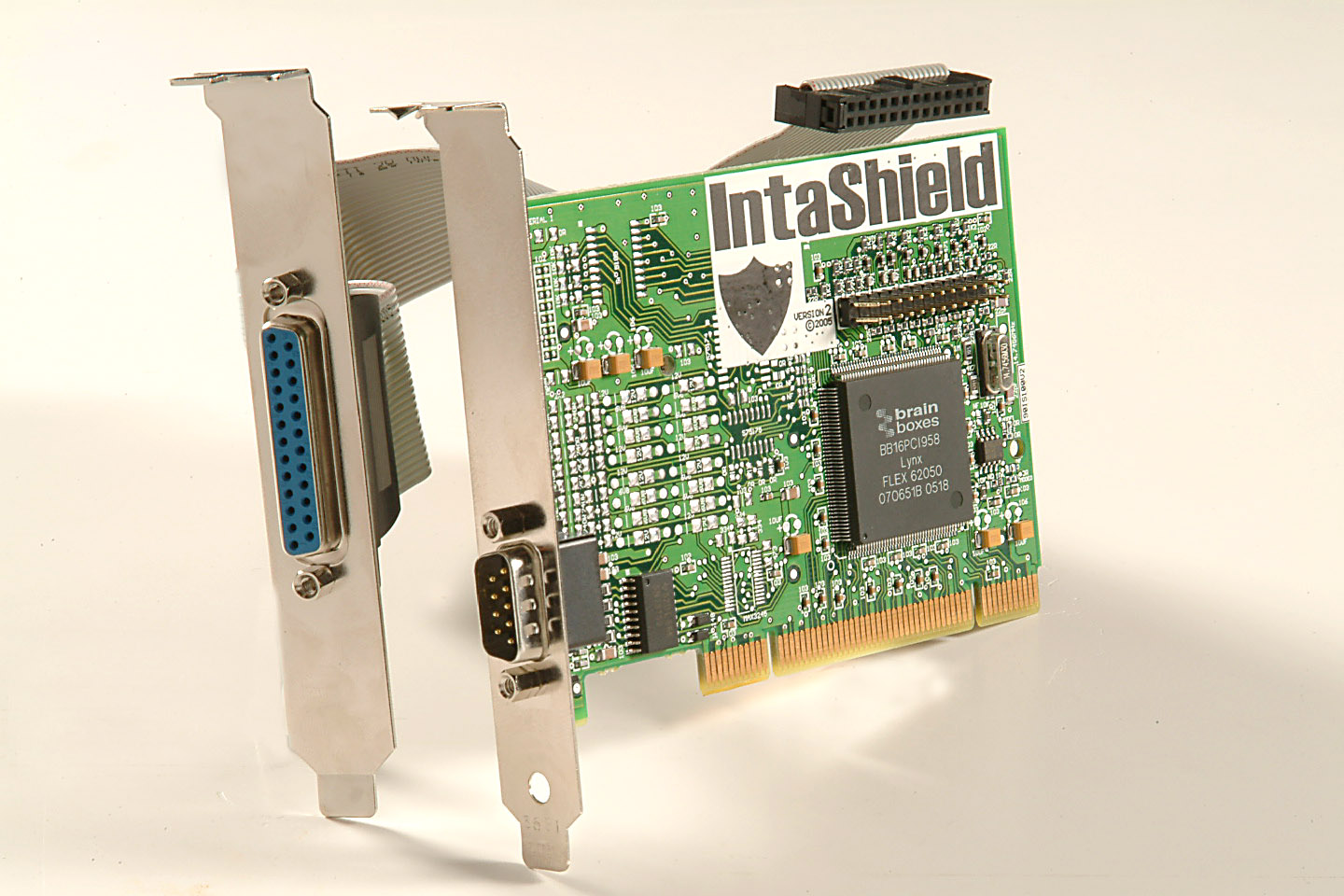

Intashield IS-300 1 Port RS232/ 1 Port LPT

This card provides 1 industry standard 9 pin RS232 serial COM port in a single PCI slot.
By adding the LPT adapter cable, a parallel printer port becomes available.

As PCI is fully Plug & Play compatible the operating system or BIOS automatically configures the card ensuring conflict free installation.

Product Information


Operating Systems:

Windows 2000, Windows XP, Windows Server 2003

Product Features:

- 1 - 9 pin, D type RS232 Serial Port
- 1 LPT Port on adapter cable
- PCI Bus – Fully Plug & Play
- PCI 2.3 Compliant
- 16 Byte transmit and receive FIFO
- Greater controls of FIFO trigger levels, and readable FIFO
  levels for improved transfer efficiency
- Supports both 3.3V / 5V standards
- Drivers for all popular operating systems
- Test software provided
- Install guide, FAQ and other support documents provided

Specifications:

- Serial Ports: 1 RS232
- Parallel Ports: 1
- UART: 16550
- Speed: 115,200 maximum baud rate
- Data Bits: 5, 6, 7 or 8
- Stop Bits: 1 or 2
- Parity: Odd, even, none, mark or space
- FIFO Size: 16 byte
- Bus type: 32-bit PCI
- IRQs: Plug and play – Shared interrupts for all ports
- Product Code: IS-300 Version 2
