  DesignXpert Visio Edition

Netformx

   Application Goal:

   DesignXpert Visio Edition gives you the ability to build, configure,
   and validate your network devices online without ever leaving Visio or closing your Visio drawing.

   DesignXpert Visio Edition is a Visio add-on module, so all its powerful network design, configuration
   and validation features are in addition to Visio's standard capabilities.
   DesignXpert Visio Edition is compatible with Visio 2000 and Visio 2002.

   Application Modules:

      1. C++ wrapper for legacy code.
      2. C++ add-on client.
      3. Entity/Session EJBs that have been used in Servlets and JSPs.
      4. XML based language that been used to display information at the Visio client.


   Platform: Weblogic application server 5.1 SP8 runs on Win32 server or UNIX, Visio 2000/2002

   Database Server: Oracle 8i

   Development Languages:  C++, Java JNI, Java RMI, J2EE and Oracle PL/SQL.

   Development Duration: 8 months.

   Application screen shots

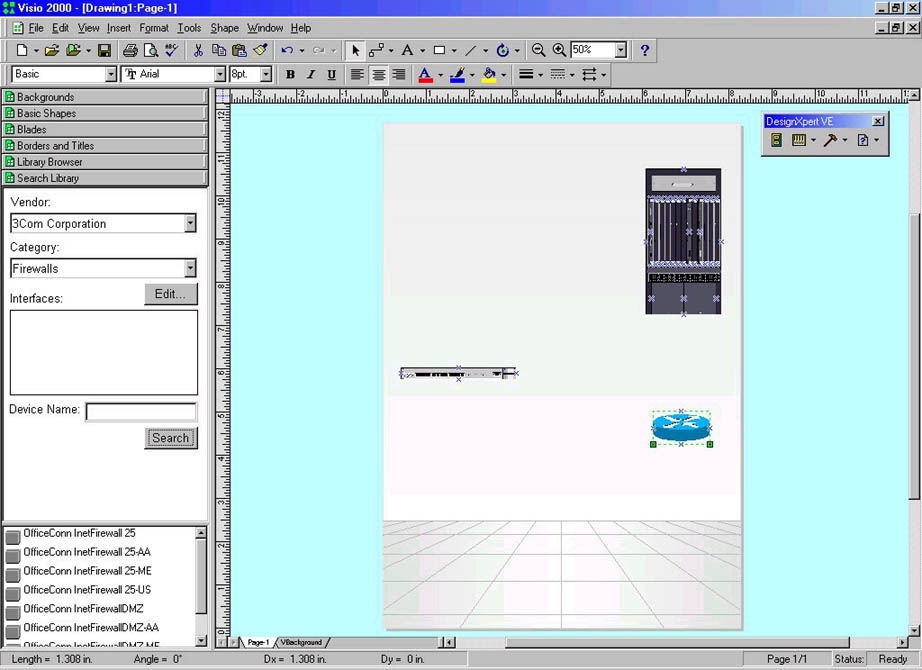

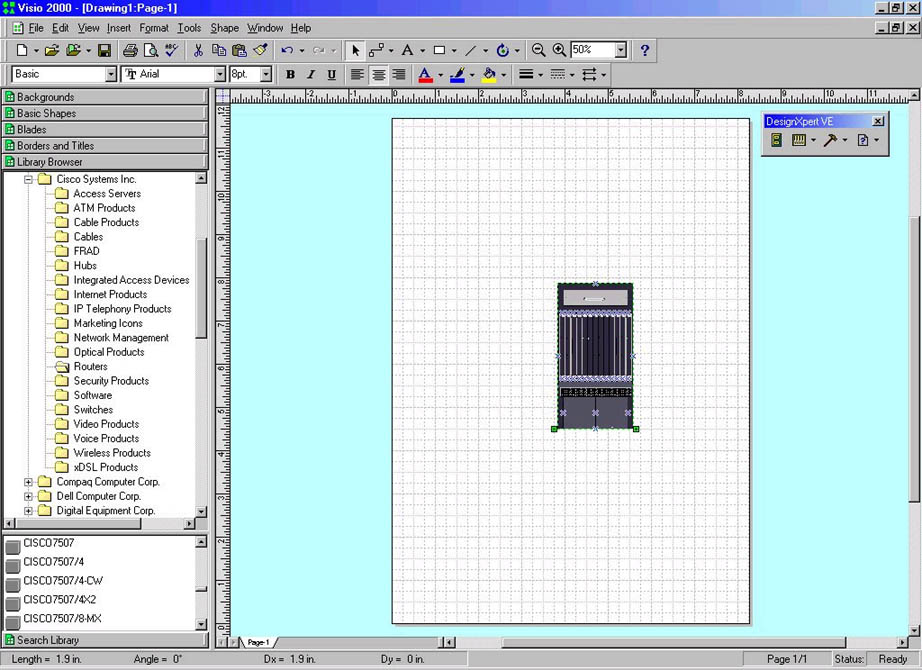

Device Library Search Device Configuration
Click to enlarge Click to enlarge Click to enlarge

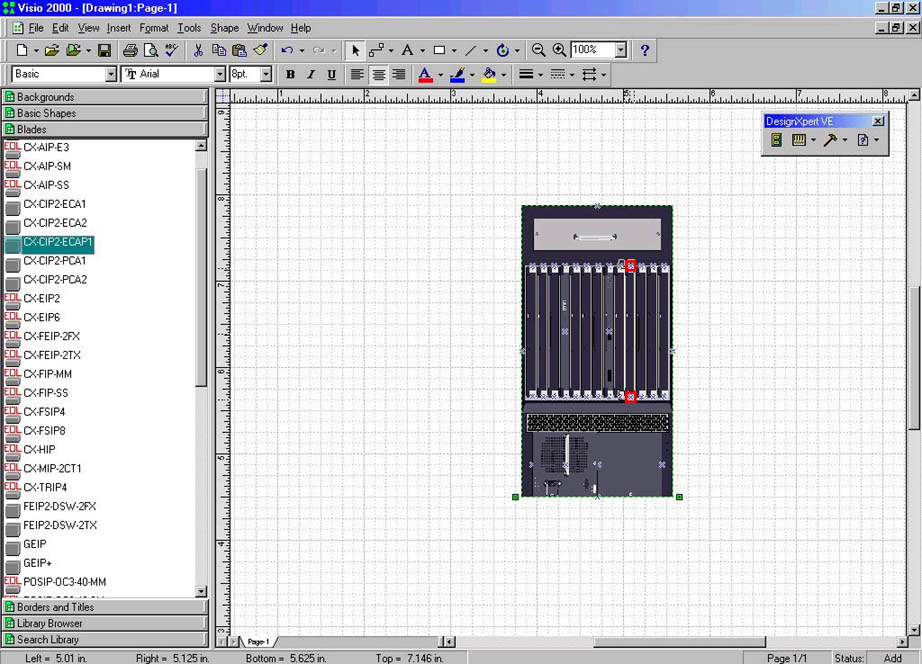

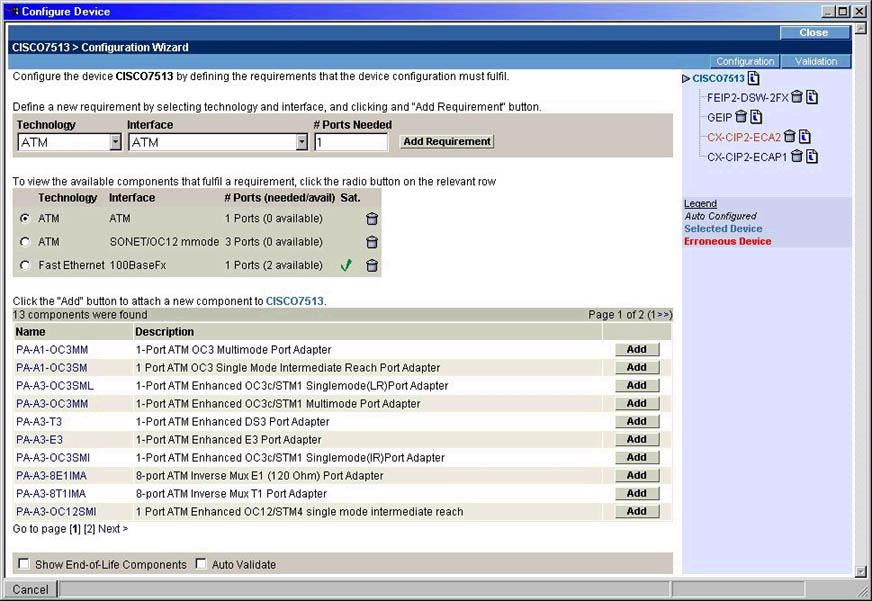

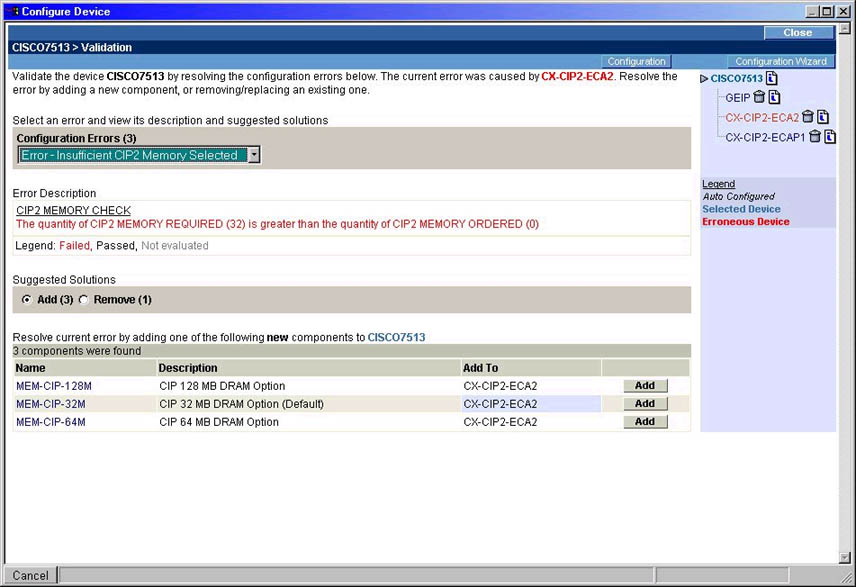

Device Validation Configuration Wizard Device Blades
Click to enlarge Click to enlarge Click to enlarge



   Related Links
   Select and search for desired components in the Netformx Multi-Vendor Library - Demo
