Cisco Systems Labview Project

    Application Goal:

   The Labview 4 tool will provide users with complete and remote control over all the
   elements in any of Cisco's network labs - including searching, scheduling,
   designing, connecting, configuring and so forth.
   By providing accurate device configuration and validation, intelligent device searches,
   and a graphical network design interface.

    Application Moudles:

         1. Graphical interface implemented by java applet.
         2. Strong server side that reply to applet requests.

   Platform:

         Fornt-end: Apache JServ Web Server.
         Back-end.: Weblogic application server (Cluster) 5.1 SP8 runs on Win32 server or UNIX.
         Database.: Oracle 8i server.

   Development Languages:  Java Applet, J2EE.

    Development Duration: 7 months.

   Application screen shots

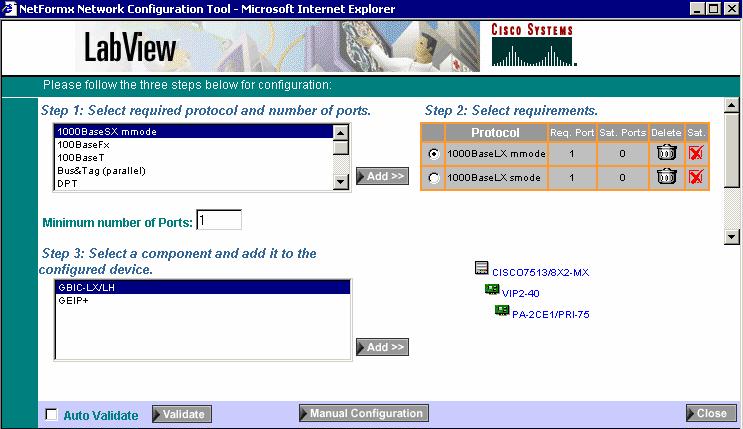

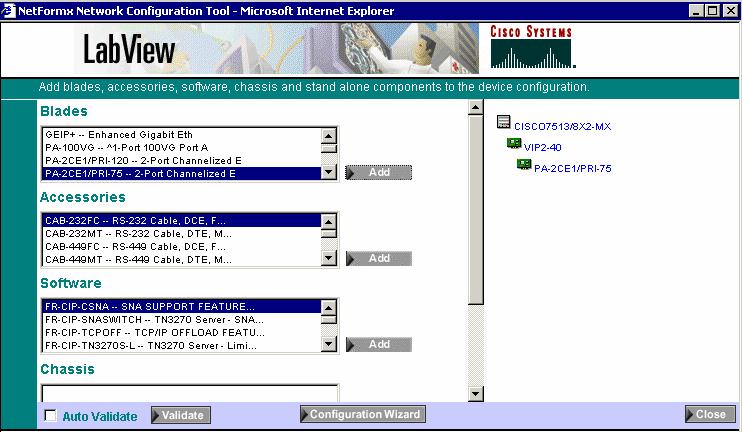

Labview Configuration Wizard	Labview Manual Configuration	Labview Device Link Expert	Labview Device Information

Network topology done via Labview application
