MIT-5A116

MIT-5A116

PHOTOINTERRUPTER

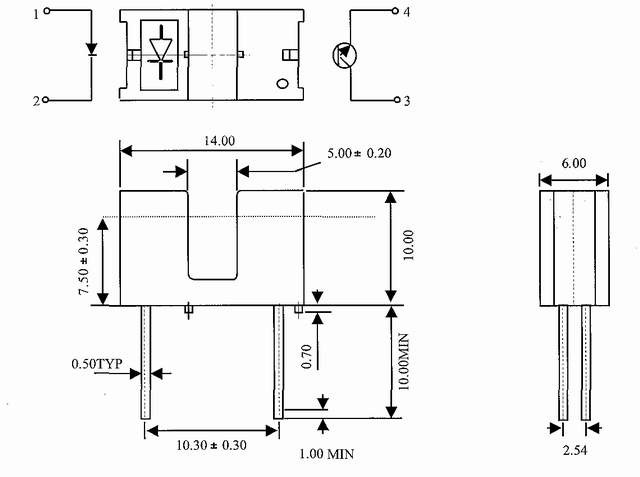

The MIT-5A116 consists of a Gallium Arsenide infrared emitting diode and a NPN phototransistor built in a black plastic housing

Part Number	Device Description			Electrical & Optical Characteristics
	Package	Slit Width (mm)	Detector & Emitter Gap (mm)	Input IR	Output Phototransistor		Coupled
				Forward Voltage VF(V) @ IF = 20mA	Collector Dark Current Iceo (nA) @ Vce = 10V	Stauration Voltage Vce(sat)(V) @ IC = 0.1mA Vce = 5V	On-State Collector Current IC(on)(mA) @Vce = 5V IF = 20mA
				Typ.	Max.	Max.	Min.
MIT-5A116	Transmissive	0.5	5	1.2	100	0.4	0.4
Datasheet
