ISDN Implementation
-------------------

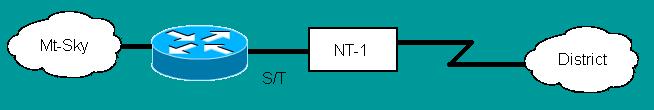

An ISDN WIC (WAN Interface Card) will be installed in the Shaw Butte Community School router.
This WIC will provide remote (District) access for the Shaw Butte Community School.
Dial-on-Demand Routing will be set up as there is no need for a permanent (an high-speed)
connection between the Community School and the District network.

A BRI connection will be used, so the total (usable) bandwidth will be 128kbps. This should be
sufficient for the small amount of data Shaw Butte Community and the District will be
transfering. Connections will be made on a need-to-use (?) basis.

A Cisco 1 port ISDN BRI NT-1 WIC (WIC-1B-U-V2) will be used for this ISDN connection.


Router Configuration for ISDN Interface:
!
isdn switch-type basic-ts013
ip route 172.155.27.0 255.255.0.0 172.155.27.29
dialer-list 1 protocol ip permit
!
interface bri 0
ip address 172.155.27.62 255.255.0.0
!
dialer-group 1
!
dialer wait-for-carrier timeout 15
dialer idle-timeout 300
!
dialer map ip 172.155.27.29 name SButte 445
