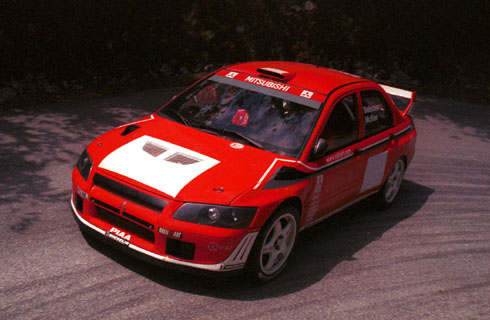

WRC2 Specification
- 2002 Rally Great Britain - |
|
Dimensions: |
|
Overall length: |
4,360 mm |
|
Overall width: |
1,770 mm |
|
Wheelbase: |
2,600 mm |
|
Front Track: |
1,550 mm |
|
Rear Track: |
1,550
mm |
|
Engine: |
|
Model: |
4G 63 |
|
Type: |
4 cylinders, 16-valve |
| |
DOHC-Intercooled Single Scroll Turbocharger |
| |
(Post Combustion Control System) |
|
Fuel system: |
ECI Multi injection |
|
Bore x stroke: |
85.5 x 86.9 mm |
|
Displacement: |
1,996 cc |
|
Maximum output: |
220 Kw/300 ps/5,500 rpm |
|
Maximum torque: |
540 Nm/55 Kgm/3,500 rpm |
|
Clutch: |
Carbon triple plates |
|
Transmission: |
6-speed INVECS type shift (sequential) |
|
4WD System: |
Active Control Locking System |
|
Front Diff: |
Active Control Locking System |
|
Rear Diff: |
Active Control Locking System |
|
Suspension: |
Front: Independent - MacPherson strut
with coil spring |
| |
Rear: Independent - MacPherson strut
with coil spring |
|
Dampers: |
Ohlins with adjustable system |
|
Steering: |
Power assisted rack & pinion |
|
Brakes: |
Front: Ventilated discs with 6-pot calipers |
| |
Rear: Ventilated discs with 4-pot calipers |
|
Tyres: |
Michelin |
|
Wheels : |
ENKEI |
