Desert
View's

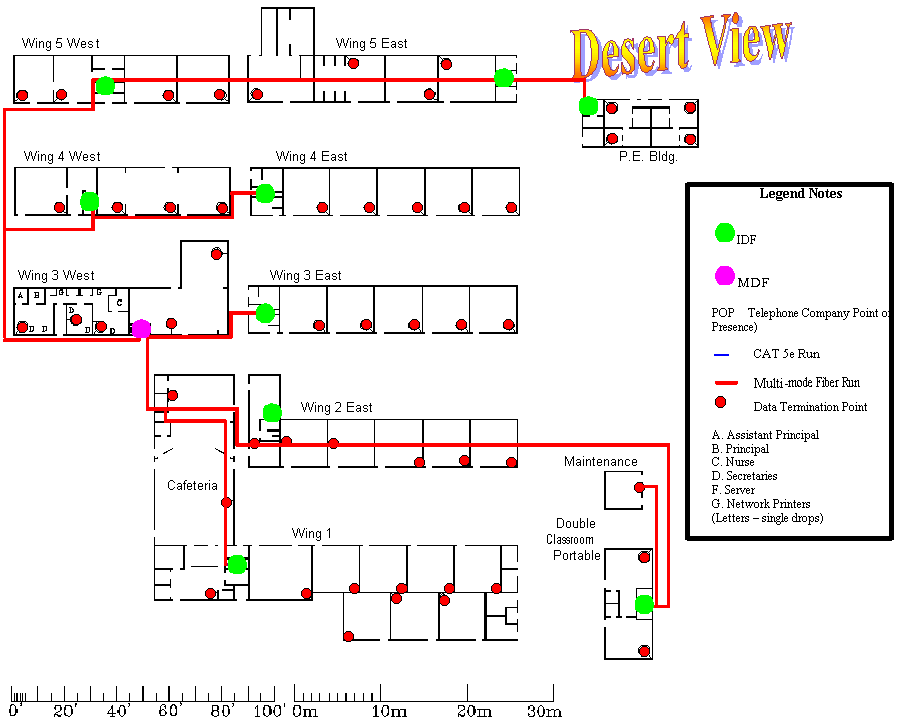

Desert View is the demonstration school for LAN planning of the Washington School District Project. Both the Administrative and the Study/Curriculum LANs will have a cable infrastructure complying with EIA/TIA 568 standards, consisting of Ethernet 10BaseT, 100BaseT, and 100BaseFx. The vertical (backbone) cabling will be multi-mode fiber from the MDF to the IDFs. The horizontal cabling will go from the switches in the IDFs to the locked cabinets in each classroom or requested distribution point. From that location there will be CAT5e drops to distributed points along each room’s wall.

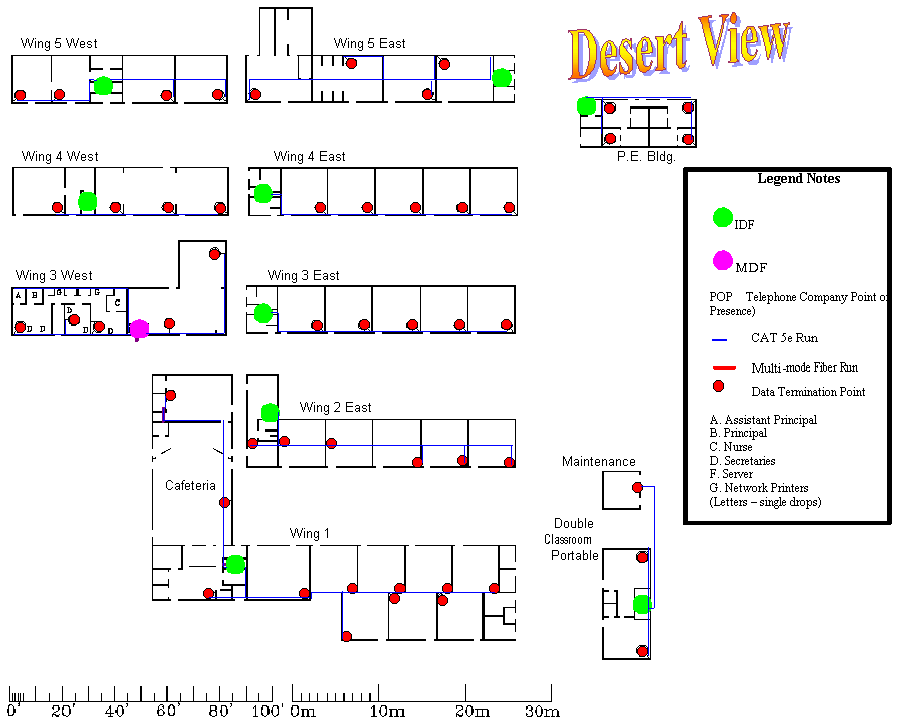

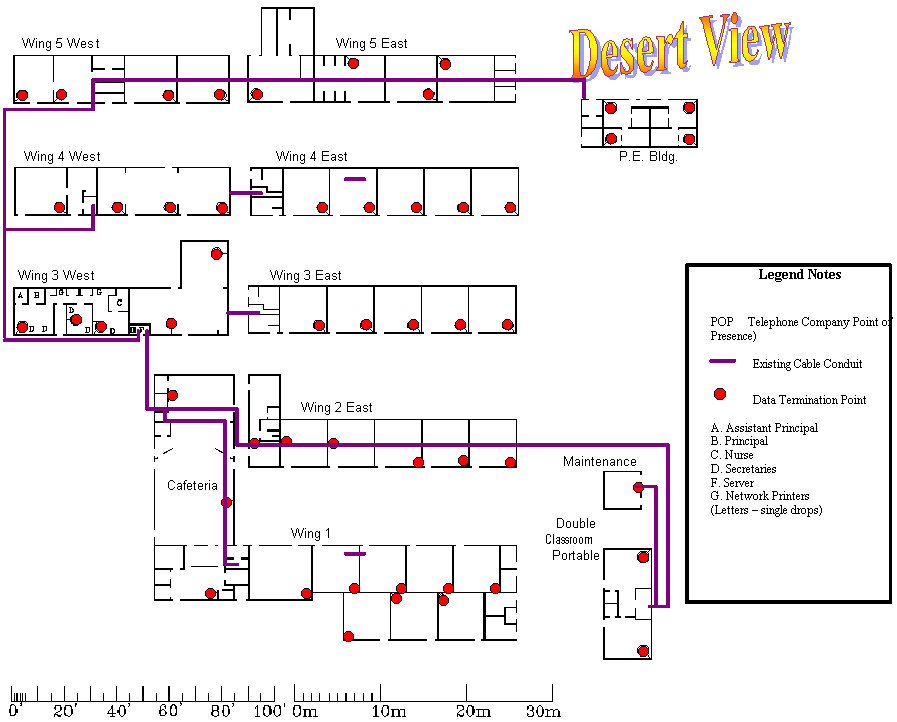

Due to the number of separate buildings and the request for CAT5e to the classrooms there will be nine IDFs on this site. Refer to the drawings below for location of MDF/IDF and the physical cable runs.
| Item | Part Number | Quantity | Unit Price | Total |
| Cat 5e Cable solid (1000 ft roll) | Belden 1585A Paired Data Twist Five Horizontal/BackBone Cable Fire Resistant | 19 | 197.00 | 3743.00 |
| Cat 5e Cable Stranded (1000 ft roll) | Belden 1875B Paired Media Twist Patch Cable (CAT 6) | 5 | 250.00 | 1250.00 |
| RJ-45 jack for solid | 1300 | 0.30 | 390.00 | |
| RJ 45 jack for stranded | 1300 | 0.30 | 390.00 | |
| Cat 5 Enhanced Keystone Jacks | 1300 | 4.70 | 6110.00 | |
| RJ45 wall Plates ( 6 port) | 220 | 1.85 | 407.00 | |
| RJ45 wall Plates ( 1 port) | 55 | 1.66 | 91.30 | |
| Multi-mode Fiber | 2500 | N/A | N/A | |
| Cisco 1548M Micro Switch 10/100 - 8-port autosensing 10/100 managed switch | 1548M Microswitch | 204 | 1195.00 | 243780.00 |
| 24-port 10/100 Switch w/Two Module Slots (Enterprise Edition | WS-C2924M-XL-EN | 18 | 2495.00 | 44910.00 |
| 1000BASE-SX "Short Wavelength" GBIC (Multimode only) | WS-G5484 | 18 | N/A | N/A |
| GigaStack Stacking GBIC and 50cm cable | WS-X3500-XL | 2 | N/A | N/A |
| Catalyst 4912G Switch, fixed 12-ports switched 1000BaseX (GBIC) | WS-C4912G | 2 | 9995.00 | 19990.00 |
| Dual 10/100 E Cisco 3660 6-slot Modular Router-AC with IP SW | CISCO3662-AC | 1 | 11700.00 | 11700.00 |
| 1-Port Fast Ethernet Network Module, FX Only | NM-1FE-FX= | 2 | N/A | N/A |
| 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card | WIC-1DSU-T1 | 1 | N/A | N/A |
