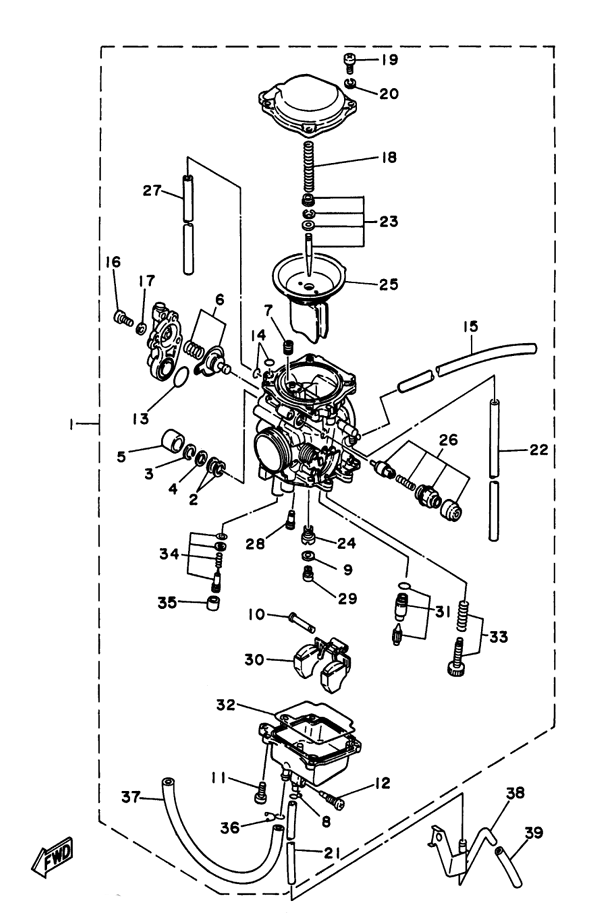

| REF NUM | PART NUMBER | DESCRIPTION | REQ | Retail Price |
| 1 | 4BE-14901-11-00 | CARBURETOR ASSY 1 (UR NON-CA) | 1 | 322.60 |
| 2 | 2A2-14997-00-00 | ...SEAL | 2 | 4.83 |
| 3 | 812-14137-00-00 | ...CLIP | 1 | 3.70 |
| 4 | 22F-14126-00-00 | ...GASKET | 1 | 5.26 |
| 5 | 36X-14169-00-00 | ...CAP | 1 | 5.47 |
| 6 | 3LD-1490H-00-00 | ...DIAPHRAGM SET, 5 (26H-1490H-00-00) | 1 | 28.92 |
| 7 | 2A2-14172-12-00 | ...PILOT JET, AIR (1.2) (UR) | 1 | 9.06 |
| 8 | 22F-14139-00-00 | ...CLIP, PIPE | 1 | 1.22 |
| 9 | 137-14153-00-00 | ...WASHER, MAIN JET | 1 | 0.74 |
| 10 | 537-14186-00-00 | ...PIN, FLOAT | 1 | 4.40 |
| 11 | 98517-04012-00 | ...SCREW, PAN HEAD | 4 | 0.63 |
| 12 | 12R-14191-00-00 | ...PLUG, DRAIN | 1 | 5.67 |
| 13 | 2LN-14561-00-00 | ...O-RING | 1 | 2.95 |
| 14 | 93210-04230-00 | ...O-RING | 2 | 2.74 |
| 15 | 26H-14197-01-00 | ...PIPE (UR NON-CA) | 1 | 7.76 |
| 16 | 98580-04008-00 | ...SCREW, PAN HEAD | 3 | 2.31 |
| 17 | 92990-04100-00 | ...WASHER, SPRING | 3 | 1.23 |
| 18 | 2LN-14933-00-00 | ...SPRING, DIAPHRAGM | 1 | 3.36 |
| 19 | 98507-04008-00 | ...SCREW, PAN HEAD | 4 | 0.63 |
| 20 | 92907-04100-00 | ...WASHER, SPRING | 4 | 0.63 |
| 21 | 3UH-14193-00-00 | ...PIPE (UR NON-CA) | 1 | 3.12 |
| 22 | 55X-14196-00-00 | ...PIPE (NON-CA) | 1 | 3.56 |
| 23 | 4BE-1490J-00-00 | ...NEEDLE SET (UR) | 1 | 35.75 |
| 24 | 4BE-14141-31-00 | ...NOZZLE, MAIN (UR) | 1 | 25.23 |
| 25 | 2LN-14940-00-00 | ...DIAPHRAGM ASSY | 1 | 89.93 |
| 26 | 3RW-1410A-00-00 | ...STARTER SET | 1 | 19.98 |
| 27 | 90445-084J3-00 | ...HOSE (NON-CA) | 1 | 5.04 |
| 28 | 4G0-14142-40-00 | ...JET, PILOT ( 40) (UR) | 1 | 9.88 |
| 4G0-14142-42-A0 | ...JET, PILOT (#42.5) (UR) | 1 | 9.88 | |
| 29 | 620-14231-26-A0 | ...JET, MAIN (#130.0) (UR) | 1 | 9.26 |
| 30 | 2VA-14185-00-00 | ...FLOAT | 1 | 30.50 |
| 31 | 1UY-14107-20-00 | ...NEEDLE VALVE SET | 1 | 23.14 |
| 32 | 2LN-14147-00-00 | ...O-RING | 1 | 2.74 |
| 33 | 4CW-14103-00-00 | ...THROTTLE SCREW SET | 1 | 7.02 |
| 34 | 12R-14105-00-00 | ...PILOT SCREW SET (UR) | 1 | 14.08 |
| 4BE-14105-00-00 | ...PILOT SCREW SET (UR) | 1 | 10.72 |
