| Since my OE 'Chain guard' kept getting shorter and shorter, despite
not thinking I'd hit anything, I decided to try a home made one.

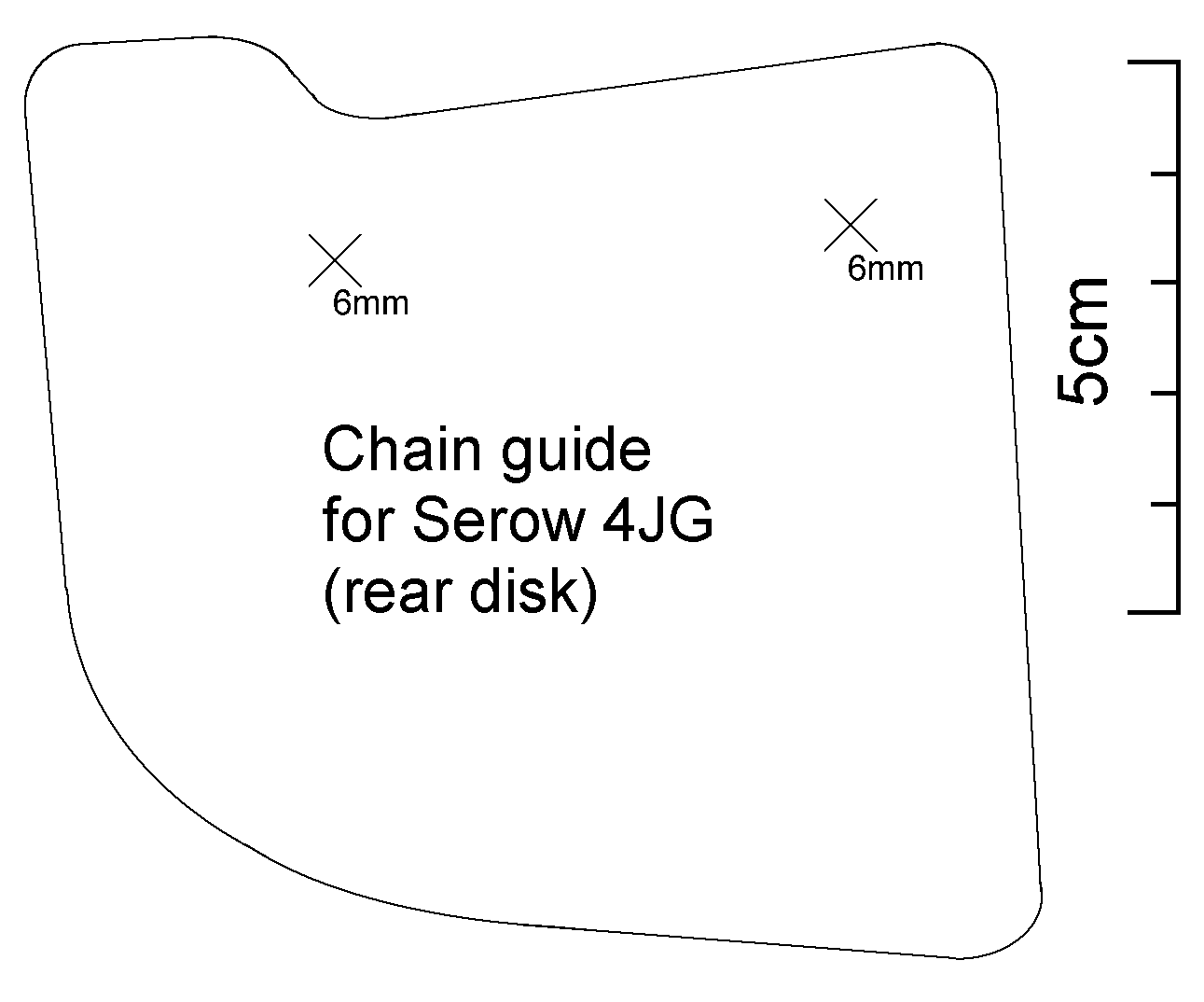

This outline was cut out of 9mm PVC, the upper edge being adjusted to contact the swingarm over as long a length as possible. The bolts are M6x20mm, but I used the brass bushes from the OE one and so needed 9.5mm holes. I don't know how different the mounting points are on drum brake models. If you download the GIF image (300dpi) and print out via a suitable package the scale should be OK. |
 |
