Software Engineering - Introduction

Table of Contents

• Overview

• Definition

• The Birth of a Discipline

• The Problem

• Characteristics of Software Engineering

• Myths of Software Engineering

• Software Life-Cycle Models

  • Waterfall

  • Prototyping

  • Spiral

Overview

Software delivers what many believe will be the most important product of the next century - information.  Whether it resides on a desktop computer, in a cell phone, or in a supercomputer, software transforms data and provides a means of acquiring it from a worldwide network of information.

The role of computer software has undergone significant change since the 1950's.  Dramatic improvements in hardware performance, profound changes in computing architectures, vast increases in memory and storage capacity, and a wide variety of exotic input and output options have yielded sophisticated and complex systems.  Sophistication and complexity can produce dazzling results when everything works properly, but they pose huge problems for those who must design, build and maintain them.

The evolution of software may be characterized by four eras [1]:

I. The Early Years (50's - mid 60's)

• Batch orientation - simple, task-oriented programs.
• Custom software - written "in-house"
• Limited distribution - maintained "in-house"

We learned much about the implementation of computer-based systems, but little about standardization, testing or maintenance.

II. The Second Era (mid-60's - late 70's)

• Multiuser - VMS, UNIX
• Real-time - increased speed
• Database - increased storage capacity
• Product software - widespread distribution

With widespread distribution, a crisis in software maintenance arose.

III. Third Era (mid-70's - mid-80's)

• Distributed systems - local and global networking
• Embedded "intelligence" & low cost hardware - microprocessor based products (cars, robots, medical devices)
• Consumer impact - the personal computer

Computers became accessible to the public at large.

IV.  The Fourth Era - (mid-80's - present)

• Powerful desktop systems, client-server architectures
• Object-oriented technologies
• Expert systems and artificial intelligence - complex problems
• Artificial neural networks - pattern recognition, human-like information processing
• Parallel computing

Dramatic changes in the way that we build computer programs.

Unfortunately, a set of software-related problems has persisted throughout the evolution of computer-based systems, and these problems continue to intensify.

1. Hardware advances continue to outpace our ability to build software to tap hardware's potential.
2. Our ability to build new programs cannot keep pace with the demand for new programs, nor can we build programs rapidly enough to meet business and market needs.
3. The widespread use of computers has made society increasingly dependent on the reliable operation of software.  Enormous economic damage and potential human suffering can occur when software fails.
4. We struggle to build computer software that has high reliability and quality.
5. Our ability to support and enhance existing programs is threatened by poor design and inadequate resources.

It is for these reasons that software engineering has evolved as a discipline.

Definition: Software Engineering

We can find many definitions of Software Engineering. For example, the IEEE definition is:

Software Engineering.
The application of a systematic, disciplined, quantifiable approach to the development, operation, and maintenance of software; that is, the application of engineering to software.  (IEEE Std 610-1990)

•  Input: description of the problem (from a client)
• Output: software system as a long-term solution for the problem of the client.

The Birth of a Discipline

It is a fact that electric power generators fail, but far less frequently than payroll products do.  It is true that bridges sometimes collapse, but considerably less often than operating systems do.  In the belief that software design, implementation, and maintenance could be put on the same footing as traditional engineering disciplines, a NATO study group in 1967 coined the term software engineering.   The first software engineering conference was sponsored by NATO in 1968, with the proclamation that there was a software crisis, namely, that the quality of the software of the day was generally unacceptably  low and that deadlines and cost limits were not being met.  The consensus was that software engineering should use the philosophies and paradigms of established engineering disciplines.

This is easier said than done.  Although there have been success stories, a considerable amount of software is still being delivered late, over budget, and with residual faults.

• For every 6 large scale projects are 2 canceled
• 75% of large scale systems are "operational failures"

That the "software crisis" is still with us, 30 years later, suggests that the software production process, while resembling traditional engineering in many respects, has its own unique properties and problems.  There are several reasons why software has not been "engineered" as is done in other fields:

• Complexity.  As it executes, software goes through discrete states.  The total number of such states may be vast, such that it may be impossible to consider all possibilities.  Complexity continues to grow as computing demands evolve: multiuser, distributed environments place considerable demands upon the underlying software.
• Fault tolerance.  The failure of a bridge has obvious disastrous implications.  The same regard is generally not given to software systems.  Faults in software are not only common, but they are almost expected, given their prevalence.  When an operating system fails, instead of considering redesign, it is assumed that one will simply reboot and continue.  The exception, of course, is in safety-critical systems, where human life or substantial economic value is at stake.
• Flexibility.  It is expected that one can do almost anything in software, since it can be modified so easily.  Changing requirements of the software as a project progresses create problems in design, testing and maintenance.  This greatly impacts the quality, cost, and delivery time of the product.

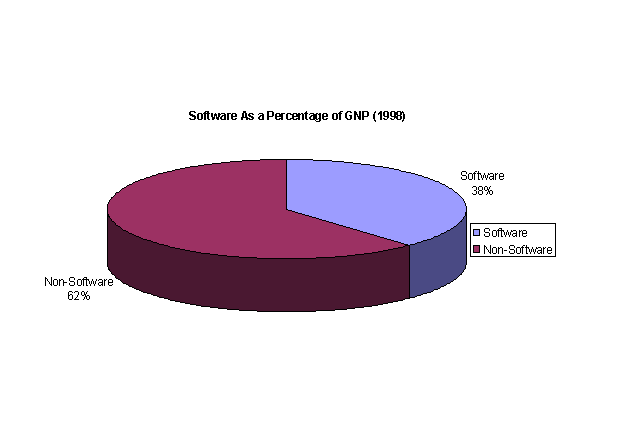

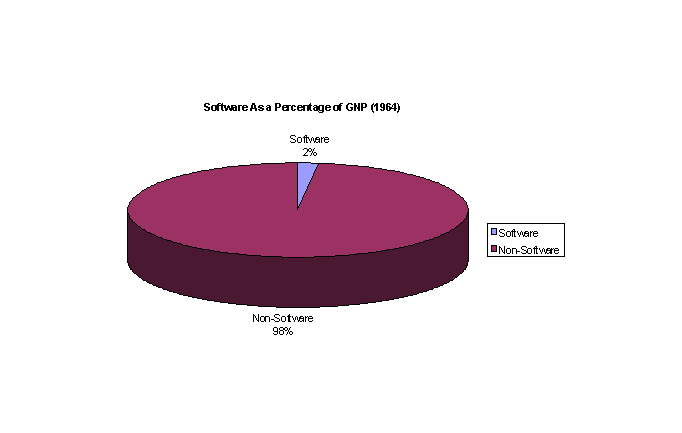

The Problem

Myths of Software Engineering

Management Myths

Managers are often under pressure to maintain budgets, keep schedules from slipping, and improve quality.  It is not uncommon for mismanagement to result from the following fallacies.

Myth:  "State-of-the-art tools are the solution."
Reality:  Computer aided software engineering (CASE) tools are important for achieving good quality and productivity, yet the majority of software developers do not use them.  Even if they are used, "a fool with a tool is still a fool."

Myth:  "If we get behind schedule, we can add more programmers and catch up."
Reality:  Software development is not a mechanistic process like manufacturing.  Adding people to a late software project makes it later [7].  This is because new people must be brought up to speed, and communication overhead increases.

Management Myths

Customer myths lead to false expectations (by the customer) and ultimately, dissatisfaction with the developer.

Myth:  "A general statement of objectives is sufficient to begin writing programs - we can fill in the details later."
Reality:  Poor up-front definition of requirements is the major cause of failed software efforts.  A formal and detailed description of information domain, function, performance, interfaces, design constraints, and validation criteria is essential.  These characteristics can be determined only after thorough communication between customer and developer.

Myth:  "Project requirements continually change, but change can be easily accommodated because software is flexible."
Reality:  The impact of a requirements change varies with the time at which it is introduced.  If serious attention is given to up-front definition, early requests for change can be easily accommodated.  When changes are requested later in the software development cycle, the cost impact grows rapidly.

Practitioner's Myths

Myths that are still believed by software practitioners have been fostered by decades of programming culture, where programming was viewed as an art form.

Myth:  "One we write the program and get it to work, our job is done."
Reality:  Industry data indicate that between 50 and 70 percent of all effort expended on a program will be expended after it is delivered to the customer for the first time.

Myth:  "Until I get the program running, I really have no way of assessing its quality."
Reality:  One of the most effective software quality assurance mechanisms can be applied from the inception of a project - the formal technical review.  This has been found to be more effective than testing for finding certain classes of software errors.

Myth:  The only deliverable for a successful project is the working program.
Reality:  A working program is only one part of a software product which includes programs, documents, and data.  Documentation forms the foundation for successful development and, more importantly, provides guidance for the software maintenance task.

Recognition of software realities is the first step toward formulation of practical solutions for software development.

Software Life-Cycle models

A software product usually begins as a vague concept, such as "Wouldn't it be nice if the computer could gather, process, and plot all of our data."  Once the need for a software product has been established, the product goes through a series of development phases.  Typically, the product is specified, designed, and then implemented.  If the client is satisfied, the product is installed, and while it is operational it is maintained.  When the product finally comes to the end of its useful life, it is decommissioned.  The series of steps through which a product progresses is called the life-cycle model.

The best life-cycle model for a given product may be different.  The factors which determine the the appropriate model include the size of the project, the complexity, the required development time, the degree of risk, the degree of certainty as to what the customer wants, and the degree to which the customer requirements may change.

The two most widely used life-cycle models are the waterfall mode and the prototyping model.  In addition, the spiral model is now receiving considerable attention.  The strengths and weakness of these models will be examined here.

Waterfall Model

The following activities occur during the waterfall life cycle paradigm:

• Requirements analysis and definition.  The system's services, constraints and goals are established by consultation with the customers and users.  These are then defined in an manner which is understandable by both customers/users and development staff.
• Specification Phase.  From the requirements, a specifications document is produced which states exactly what the product is to do (but not how it will be done).
• System and Software Design.  The systems design process partitions the requirements to either hardware or software systems.    Software design is actually a multistep process the focuses on four distinct attributes of a program: data structure, software architecture, interface representations, and procedural (algorithmic) detail.  In contrast to the specifications document that specifies what requirements will be met, the design documents contain representations that describe how the product will meet them.
• Implementation and unit testing.  During this stage, the software design is realized as a set of programs or modules.  Unit testing involves verifying that each unit meets its specification.
• Integration and system testing.  The individual program units are integrated and tested as a complete system to ensure that the software requirements have been met.
• Acceptance testing.  The purpose of acceptance testing is for the client to determine whether the product satisfies its specifications as claimed by the developer. During acceptance testing, the product is evaluated for its correctness, robustness, performance, and documentation.
• Operations and maintenance. The operations and maintenance phase involves is the re-application of each of the preceding activities for existing software. The re-application may be required to correct an error in the original software, to adapt the software to changes in its external environment (e.g., new hardware, operating system), or to provide enhancement to function or performance requested by the customer.  This is generally the longest life-cycle phase.

These stages are shown diagrammatically below.  Normal development is shown by the solid green arrows.  Maintenance occurs along the path of the dashed arrows.

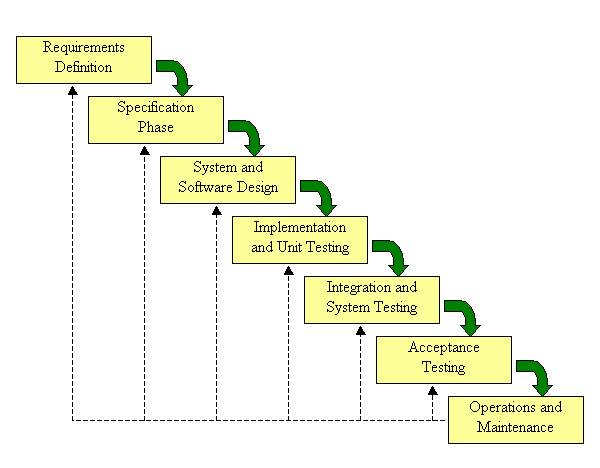

Figure 1 - The Waterfall Model

The waterfall model is the most widely used in software engineering. It leads to systematic, rational software development, but like any generic model, the life cycle paradigm can be problematic for the following reasons:

1. The rigid sequential flow of the model is rarely encountered in real life. Iteration can occur causing the sequence of steps to become muddled.
2. It is often difficult for the customer to provide a detailed specification of what is required early in the process. Yet this model requires a definite specification as a necessary building block for subsequent steps.
3. Much time can pass before any operational elements of the system are available for customer evaluation. If a major error in implementation is made, it may not be uncovered until much later.

Do these potential problems mean that the life cycle paradigm should be avoided? Absolutely not! They do mean, however, that the application of this software engineering paradigm must be carefully managed to ensure successful results.

Prototyping Model

Prototyping moves the developer and customer toward a "quick" implementation. Prototyping begins with requirements gathering. Meetings between developer and customer are conducted to determine overall system objectives and functional and performance requirements. The developer then applies a set of tools to develop a quick design and build a working model (the "prototype") of some element(s) of the system. The customer or user "test drives" the prototype, evaluating its function and recommending changes to better meet customer needs. Iteration occurs as this process is repeated, and an acceptable model is derived. The developer then moves to "productize" the prototype by applying many of the steps described for the classic life cycle.

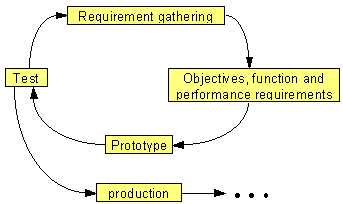

Figure 2 - The Prototyping Model

In object oriented programming a library of reusable objects (data structures and associated procedures) the software engineer can rapidly create prototypes and production programs.

The benefits of prototyping are:

1. a working model is provided to the customer/user early in the process, enabling early assessment and bolstering confidence,
2. the developer gains experience and insight by building the model, thereby resulting in a more solid implementation of "the real thing"
3. the prototype serves to clarify otherwise vague requirements, reducing ambiguity and improving communication between developer and user.

But prototyping also has a set of inherent problems:

1. The user sees what appears to be a fully working system (in actuality, it is a partially working model) and believes that the prototype (a model) can be easily transformed into a production system. This is rarely the case. Yet many users have pressured developers into releasing prototypes for production use that have been unreliable, and worse, virtually unmaintainable.
2. The developer often makes technical compromises to build a "quick and dirty" model. Sometimes these compromises are propagated into the production system, resulting in implementation and maintenance problems.

3. Prototyping is applicable only to a limited class of problems. In general, a prototype is valuable when heavy human-machine interaction occurs, when complex output is to be produced or when new or untested algorithms are to be applied. It is far less beneficial for large, batch-oriented processing or embedded process control applications.

Spiral Model

There is almost always risk involved in the development of software.  For example,

• key personnel may resign before the product has been adequately documented,
• the manufacturer of hardware on which the product is critically dependent may go bankrupt,
• too little (or too much) time may be invested in testing,
• technological breakthroughs may render the product obsolete,
• a lower-priced, functionally equivalent product may come to market.

For obvious reasons, software developers try to minimize risks whenever possible.  A product built using the waterfall model may be subject to substantial risk because of its linear development cycle.  The prototyping model is quite effective at minimizing risk, allowing a periodic reassessment of the requirements.

The idea of minimizing risks via the use of prototypes and other means is the underlying concept of the spiral model [8].  A simplistic way of looking at the spiral model is as a series of waterfall models, each preceded by a risk analysis.  Before commencing each phase, an attempt is made to control (or resolve) the risks.  If it is impossible to adequately resolve all the significant risks at a given stage, the project is immediately terminated.  Prototypes can be used to provide information about certain classes of risk.  For example, timing constraints can be tested by constructing a prototype and measuring whether the prototype can achieve the necessary performance.

The spiral model is shown in the figure below.  The radial dimension represents cumulative cost to date, the angular dimension represents progress through the spiral.  Each cycle of the spiral corresponds to a development phase.

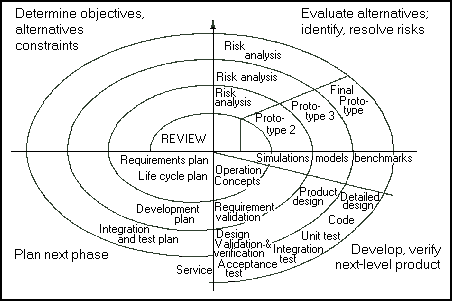

Figure 3 - The Spiral Model

A phase begins (in the top left quadrant) by determining objectives of that phase, alternatives for achieving those objectives, and constraints imposed on those alternatives.  Next, that strategy is analyzed from the viewpoint of risk. Attempts are made to resolve every potential risk, in some cases by building a prototype.  If certain risks cannot be resolved, the project may be terminated or scaled down.  If all risks are resolved, the next development step is started.  This quadrant of the spiral model corresponds to the pure waterfall model.  Finally, the results of that phase are evaluated and the next phase is planned.

The advantages of the spiral model are:

• The primary advantage is that the spiral model has a wide range of options to accommodate the good features of other lifecycle models. It becomes equivalent to another lifecycle model in appropriate situations. Also the risk-avoidance approach keeps from having additional difficulties.
• The spiral model focuses its early attention on the option of reusing existing software.
• It prepares for lifecycle evolution, growth, and changes of the software product. Major sources of this change are included in the product objectives.
• It incorporates software quality objectives into software product development. Emphasis is placed on identifying all objectives and constraints during each round.
• The risk analysis and validation steps eliminate errors early on.

• Maintenance is included as another cycle of the spiral; there is essentially no distinction between maintenance and development.  This helps to avoid underestimation of resources needed for maintenance.

The weaknesses include:

• The risk-driven model is dependent on the developers' ability to identify project risk. The entire product depends on the risk assessment skills of the developer. If those skills are weak then the product could be a disaster. A design produced by an expert may be implemented by non-experts. In a case such as this, the expert does not need a great deal of detailed documentation, but must provide enough additional documentation to keep the non-experts from going astray.
• The process steps need to be further elaborated to make sure that the software developers are consistent in their production. It is still fairly new compared to other models, so it has not been used significantly and therefore the problems associated with it haven't been widely tested and solved.

Project Phases for the Development of any Large System,

1. Initial conception
2. Requirements analysis
3. Specification
4. Initial design
5. Verification and test of design
6. Redesign
7. Prototype manufacturing
8. Assembly and system-integration tests
9. Acceptance tests (validation of design)
10. Production (if several systems are required)
11. Field (operational) trial and debugging
12. Field maintenance
13. Design and installation of added features
14. System discard (death of system) or complete system redesign.

Boehm [8] gives figures for several systems showing about

• 40% of effort on analysis and design
• 20% on coding and auditing (handchecking)
• 40% on testing and correcting bugs.

Documentation was not included, estimated at extra 10%.

As a project progresses, the cost of changes increase dramatically. The reasons for increases in cost are:

1. Testing becomes more complex and costly;
2. Documentation of changes becomes more widespread and costly;
3. Communication of problems and changes involves many people;
4. Repeating of previous tests (regression testing) becomes costly;
5. Once operation is begun, the development team is disbanded and reassigned.

References:

1. Pressman, R.S., Software Engineering: A Practitioner's Approach, McGraw-Hill (4th ed.), 1997.
2. Sawyer, K., "The Mess at the IRS," Washington Post National Weekly Edition, pp. 6-7, November 11, 1985.
3. Parnas, D., "Software Aspects of Strategic Defense Systems," Datamation, 28(12), December, 1985.
4. Pfleeger, S.L., Software Engineering: Theory and Practice, Prentice-Hall, 1998.
5. Leveson, N., and C. Turner, "An Investigation of the Therac-25 Accidents," IEEE Computer, 26(7), pp. 18-41, July, 1993.
6. Gibbs, W., Scientific American, pp. 86-95, Sept. 1994.
7. Brooks, F., The Mythical Man-Month, Addison-Wesley, 1975.
8. Boehm, B., "A spiral model for software development and enhancement," IEEE Computer, 21(5), pp. 61-72, 1988.
9. Jones, C., “Our Worst Current Development Practices”, IEEE Software, March 1996, pp. 102-104.

CMPE 3213 - Advanced Software Engineering
(Fall 1999)

Back to top
