AC Cobra.
Here follows a suite of general pictures, showing frame and body in various stages. |
|||||
Januari 1995. Bodyshell and degreased engine from an -82 Mustang. |
|||||
Beginning to make frame. |
|||||

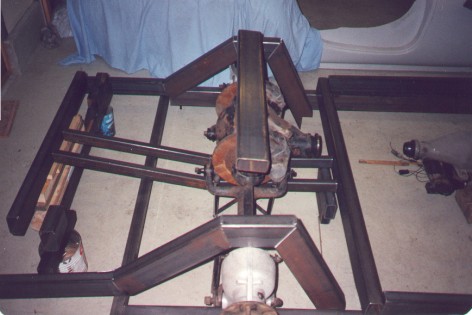

Rear end is built up around Jaguar axle. |
|||||

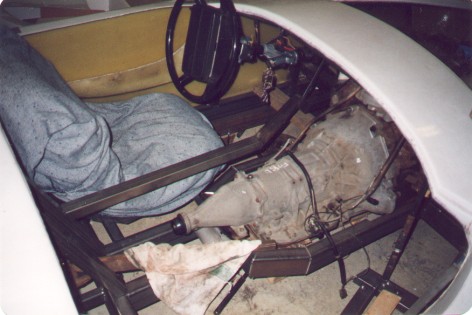

Trial-fit with bodyshell and seat and prop-shaft. |
|||||
Front axle. |
|||||

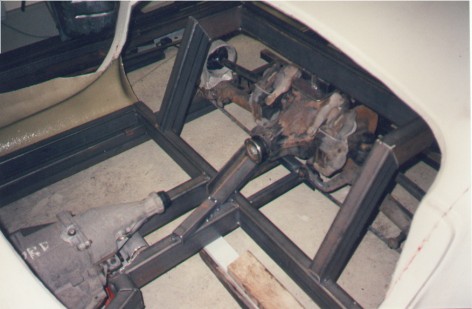

Making certain that a straight line is made throughout drivetrain. |
|||||

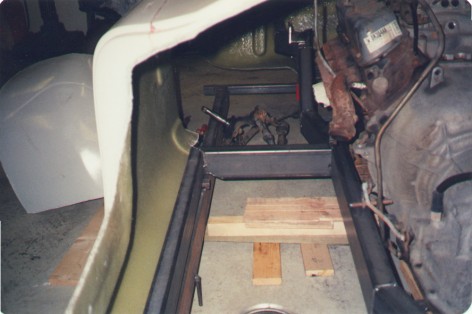

Drivers footwell. |
|||||
Front wheelhouse. Notice how much rearwards the engine is assembled. |
|||||
LH front wheelhouse. |
|||||
LH rear wheelhouse with 10 cm shortened drive shafts. Doesnt it look very empty? |
|||||
Main frame parts finished. |
|||||
Front view of finished frame. |
|||||

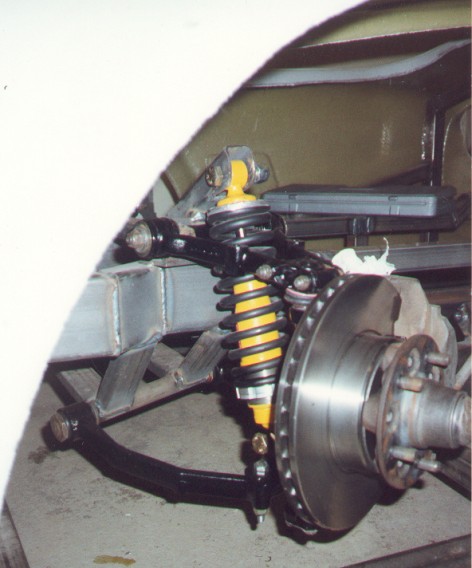

Top view of RH front wheel. |
|||||
Front axle and bridge that keeps radiator and brackets for 2 fans, one is pushing, one pulling. |
|||||
Rear end with boot lid. |
|||||
Inside boot a shortened Jaguar XJ6 rearend is found with Spax coil-overs. New homemade control arms points rearward - towards center. Holley fuel pump in center, this area is covered with an Opel Ascona B fuel tank and plywood floor. |
|||||
And here owner is bleeding the brakes..... as anyone can see....... |
|||||

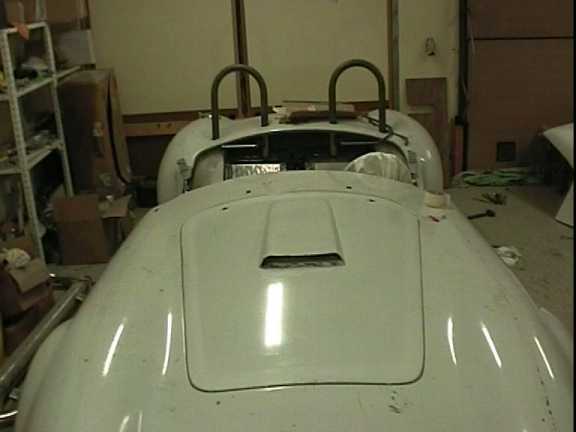

Engine bay covered. The rollover loops will be reduced in height by approx. 7 cm. |
|||||
