Exhaust system.
Exhaust system is all home-made. 10 mm thick head plates bought from "Europa", primary pipes is di= xx mm and 3.2 mm thick, secondary pipes di = 60 mm and 1.5 mm thick. Perforated pipes, mineral and stainless wool from "Ferrita", all pipes visible from outside are stainless steel.
|
|

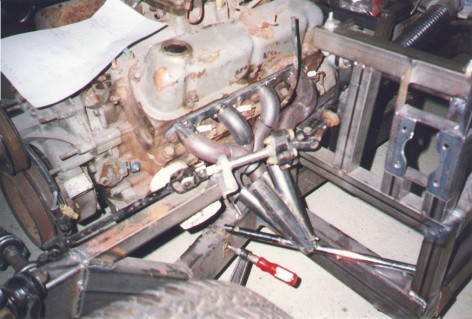

Trial fitting of drivers side, collector is very scientific made, see separate picture. Simultainously steering position was set. |
||||
|
|

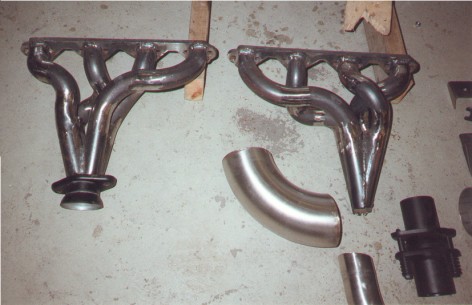

Before assembly. Black flexible joint allows engine twisting without too much movement on side pipes, which also is soft mounted with 2 rubber cushions. |
||||
|
|
Another view. |
||||
|
|
Beginning to see the end? Primary pipes are NOT symmetrical, pipes are drawn so that ignition sequense forms a circular pattern. |
||||
|
|
Now its coming together...... |
||||
|
|
Indeed....... |
||||
|
|
It does....... Rear bend was later cut for an not so awkward look. |
||||
|
|
Finished passenger side. Frame had to be re-routed on both sides. Difference between shortest and longest primary pipe is approx. 50%, a good result in a very limited space. |
||||
