Status Bar control plus others added to ToolBox

< Project > (from menu bar at top)
< Components >
< Microsoft Windows Common Controls 6.0 >

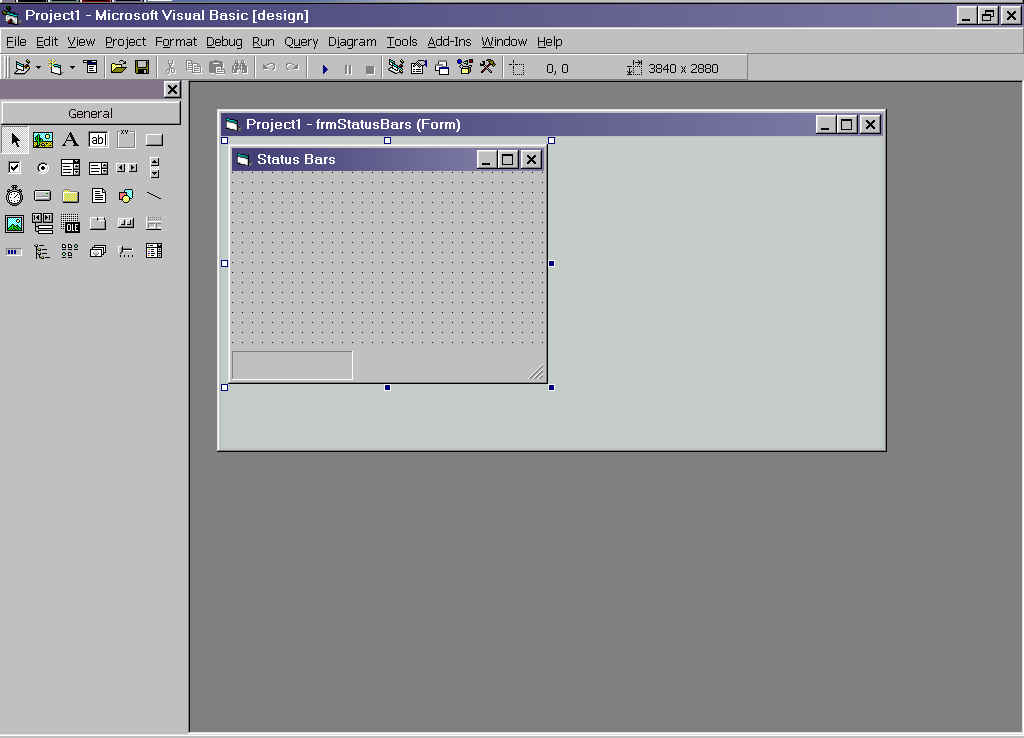

Click on Status bar Icon in Toolbox

Property Pages

3 methods to obtain :

Status bar selected -
- < View > (see menu bar at top)
- < Property Pages >
Status bar selected -
- < shift > <F4 >
3rd method
- Right click Status bar
- < properties > (from pop-up menu)

Set up Status Bar using Property Pages

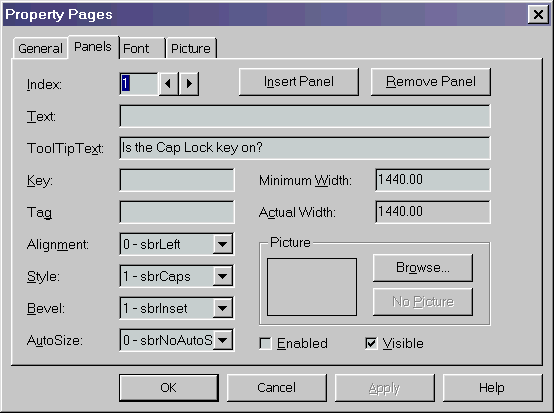

Click on 'Panel' tab :

Style set to 'sbrCaps'

Enter 'Tool Tip text'

Press <OK>

Form

Log of Run :

To add another Status Bar panel :

View property page again, clicking on 'panel' tab :

Click on 'Insert Panel' button

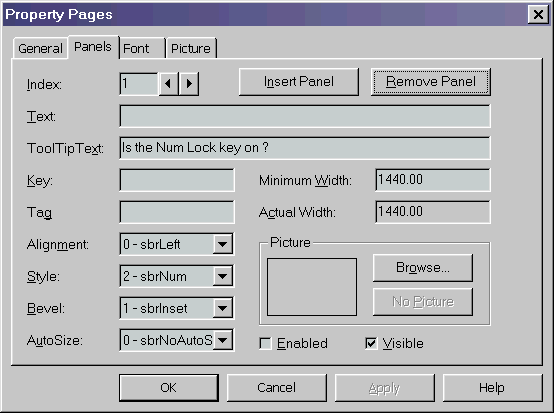

Click on right arrow next to 'index', to move on to next panel :

Select '2 - sbrNum' in the 'Style' box
Enter 'Is the Num Lock key on ?' in the 'Tool Tip Text' box

Click <OK>

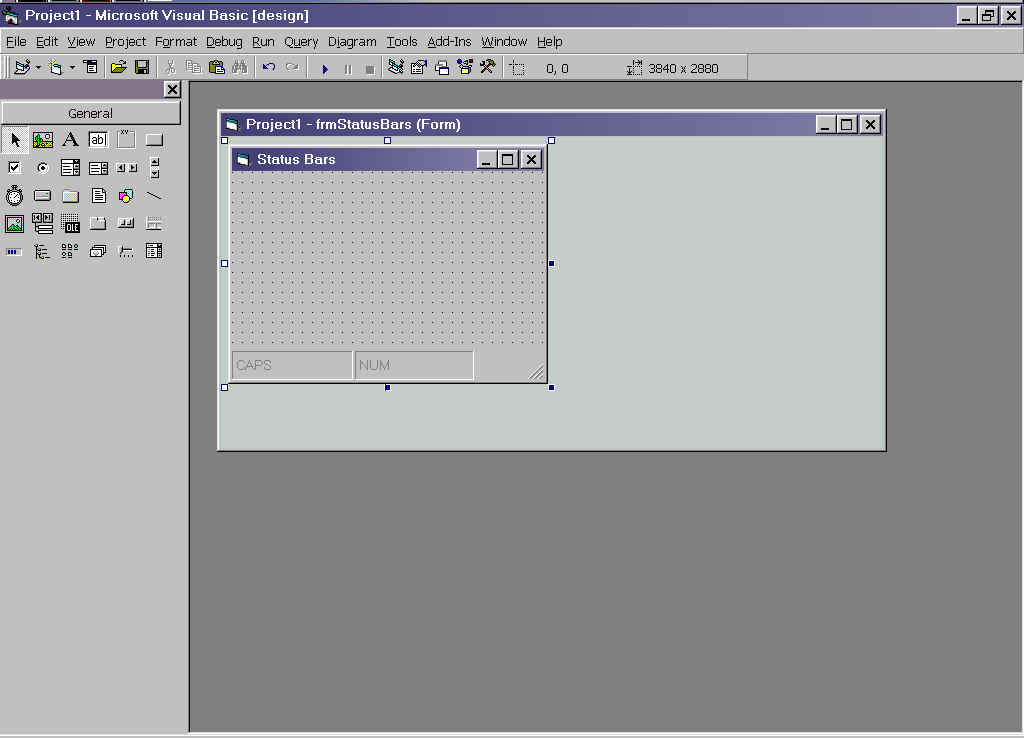

Form

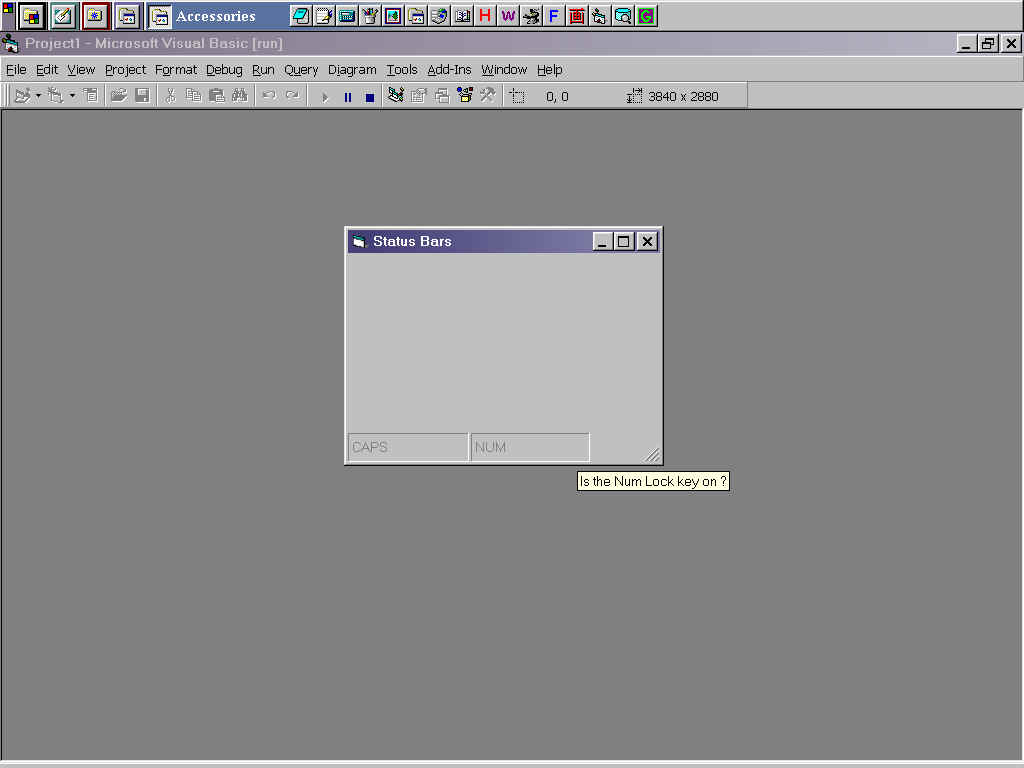

Log of Run

To Add A Text Panel

< View >
< Property Pages >
Click on 'Panels' tab

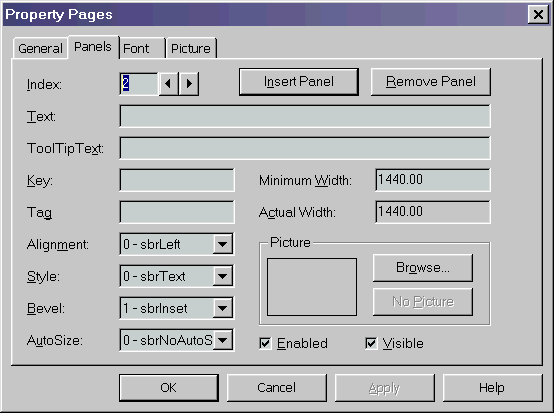

Click on arrows to right of 'Index' box, to set index to '2'
Click on 'Insert Panel'

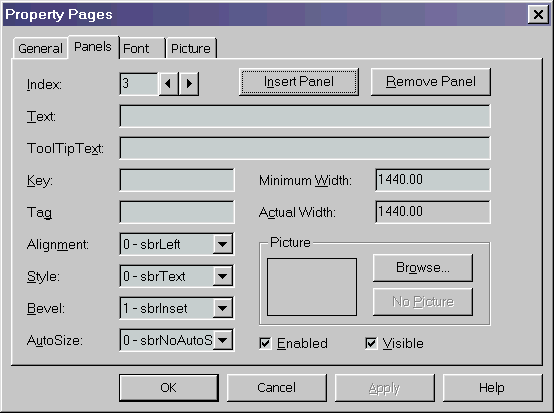

Click on arrow to right of 'Index' box, to set index to '3'

Leave 'Style' box set to '0 - sbrText'

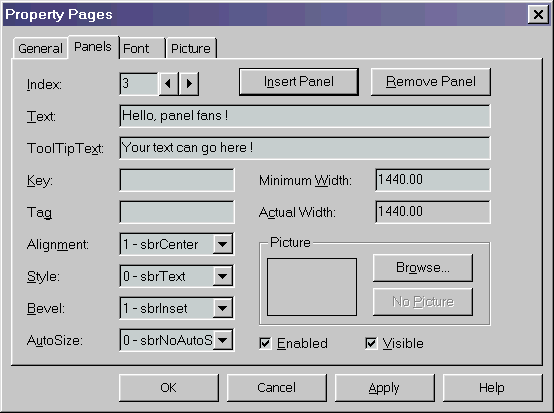

Set the 'Alignment' box to '1 - sbrCenter'
Add text in 'Text' box (to display in the Panel on the status bar)
Add text 'ToolTip Text' box

Form

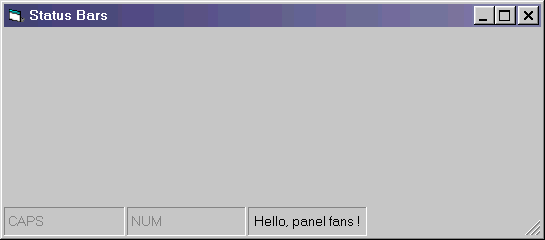

Log of Run

To Remove Panel

< View >
< Property Pages >
Click on 'Panel' tab
Ensure 'Index' field is pointing at correct Panel
Click on 'Remove Panel' button

To Toggle the Status bar

Code:

Option Explicit

     Private Sub Form_Click()
          If staDemo.Visible = True Then
               staDemo.Visible = False
          Else
               staDemo.Visible = True
          End If
     End Sub

Log of Run :

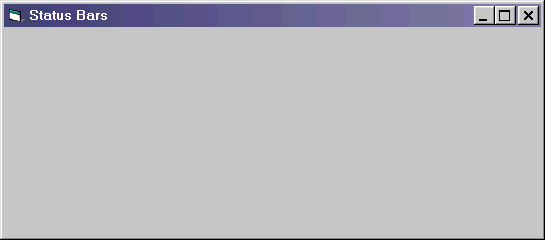

(Toggle - i.e. click on form)

(Toggle)

Resizing the Status Bar when the User resizes a Form

In the properties window, set the form's BorderStyle to '2 - Sizeable' :

Add to the code :

     Private Sub Form_Resize()
          If frmStatusBars.Width < 6300 Then
               frmStatusBars.Width = 6300
              'Use trial and error to find this number
          End If

        staDemo.Panels(3).Width =
                          frmStatusBars.ScaleWidth
                        - (staDemo.Width
                        - staDemo.Panels(3).Width)
     End Sub

Log of Run

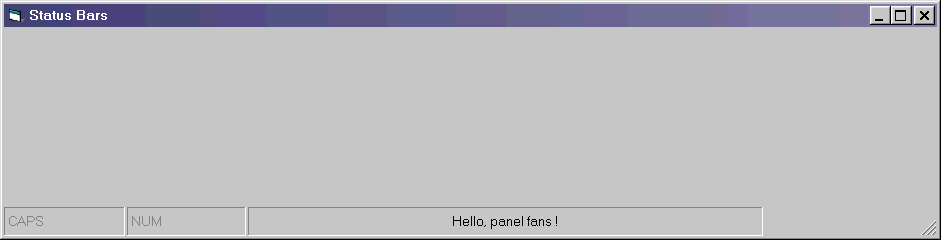

(Elongate form, using Mouse)

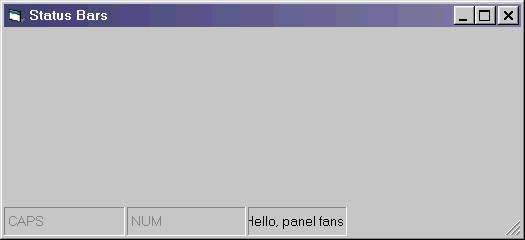

(Shorten form, using mouse)

n.b. this is the shortest the code allows the form to go.
