Welcome to the tutorial section of Black Board! Here I'll teach you how to make your very own drawing program.
I know you want to get started, so let's dive right in!



Step 1. Getting Started

Open up Visual BASIC and start a new project. (Standard.exe)

Set up a simple menu structure for your project using the Menu Editor. It should look like this:

File
   New
   ----------
   Exit

Properties for these menu items should be as the following:

Caption	Name
&File	mnuFile
&New	mnuNew
-	mnuDash1
E&xit	mnuExit

Step 2. Create the GUI

Put a picture box and a single label box (will be used to set color) on the form. Set the following properties:

Form1:
BorderStyle	1-Fixed Single
Caption	Blackboard
Name	frmDraw

Picture1:
Name	picDraw

Label1:
BorderStyle	1-Fixed Single
Caption	[Blank]
Name	lblColor

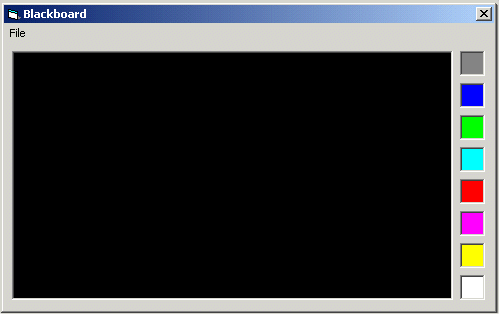

Your program should now look something like this:

Now, copy and paste the label box (create a control array named lblColor) until there are eight boxes on the form
lined up vertically under the original box. When done, the form will look just as above, except there will be eight label boxes.

Step 3. Programming!!

I know, this is what you've all been waiting for...so let's get busy!

Type these lines in the general declarations area. DrawOn will be used to indicate whether you are drawing or not:

Option Explicit
Dim DrawOn As Boolean

• Attach these lines of code to their procedures.

  The Form_Load procedure loads colors into each of the label boxes to allow choice of drawing color.
  It also sets the BackColor to black and the ForeColor to Bright White.

  Private Sub Form_Load()
  'Load drawing colors into control array
  Dim I As Integer
  For I = 0 To 7
      lblColor(I).BackColor = QBColor(I + 8)
  Next I
  picDraw.ForeColor = QBColor(15) ' Bright White
  picDraw.BackColor = QBColor(0) ' Black
  End Sub

  In the mnuFileNew_Click procedure, we check to see if the user really wants to start over.
  If so, the picture box is cleared with the Cls method.

  Private Sub mnuFileNew_Click()
  'Make sure user wants to start over
  Dim Response As Integer
  Response = MsgBox("Are you sure you want to start a new drawing?", _
    vbYesNo + vbQuestion, "New Drawing")
  If Response = vbYes Then picDraw.Cls
  End Sub

  In the mnuFileExit_Click procedure, make sure the user really wants to stop the application.

  Private Sub mnuFileExit_Click()
  'Make sure user wants to quit
  Dim Response As Integer
  Response = MsgBox("Are you sure you want to exit the Blackboard?", _
    vbYesNo + vbCritical + vbDefaultButton2, "Exit Blackboard")
  If Response = vbYes Then End
  End Sub

  When the left mouse button is clicked, drawing is initialized at the mouse cursor location in the picDraw_MouseDown procedure.

  Private Sub picDraw_MouseDown(Button As Integer, Shift As Integer, X As Single, Y As Single)
  'Drawing begins
  If Button = vbLeftButton Then
      DrawOn = True
      picDraw.CurrentX = X
      picDraw.CurrentY = Y
  End If
  End Sub

  When drawing ends, the DrawOn switch is toggled in picDraw_MouseUp.

  Private Sub picDraw_MouseUp(Button As Integer, Shift As Integer, X As Single, Y As Single)
  'Drawing ends
  If Button = vbLeftButton Then DrawOn = False
  End Sub

  While mouse is being moved and DrawOn is True, draw lines in current color in the picDraw_MouseMove procedure.

  Private Sub picDraw_MouseMove(Button As Integer, Shift As Integer, X As Single, Y As Single)
  'Drawing continues
  If DrawOn Then picDraw.Line -(X, Y), picDraw.ForeColor
  End Sub

  Finally, when a label box is clicked, the drawing color is changed in the lblColor_Click procedure.

  Private Sub lblColor_Click(Index As Integer)
  'Make audible tone and reset drawing color
  Beep
  picDraw.ForeColor = lblColor(Index).BackColor
  End Sub

  Run the application. The final product should look something close to this:



  Click on the label boxes to change the color you draw with. Fun, huh? Save the application.
