Motorola Universal Programming Adaptor (UPA)

---

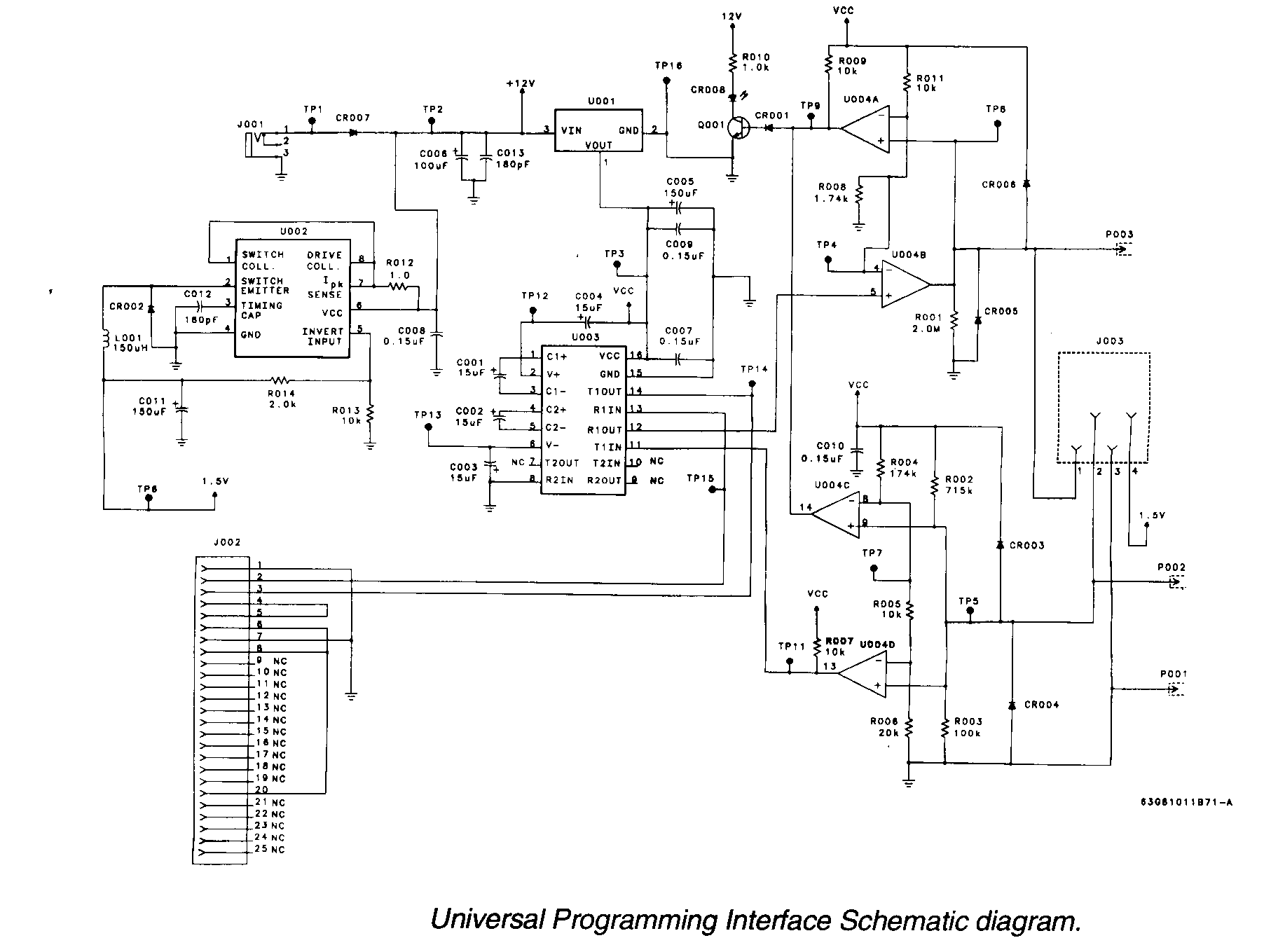

Schematics Courtesy of Techmo(DDL):

upa.jpg - Image Format
upa.gif - Image Format

Unofficial parts list:

• U001 = 78L05
• U002 = MC33063 DC to DC converter
• U003 = max 232
• U004 = LM339
