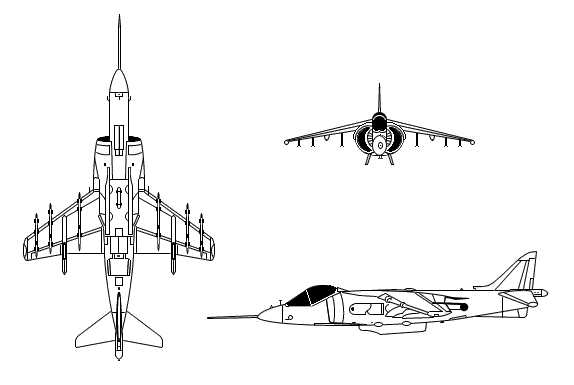

AV-8B HARRIER II

Specifications

Type	single-seat STOVL close support plane
Contractor	BAe/McDonnell Douglas
Country of Origin	USA
Powerplant	one Rolls-Royce F402-RR-408 Pegasus turbofant engine
Thrust	23,800lbs
Length	46ft 4in
Height	11ft 7.75in
Wingspan	30ft 4in
Wing Area	230 Sq. ft
Max Speed	661mph @ sea level
Climb Rate	14,715ft/minute
Service Ceiling	50,000ft
Range	172 mile radius
Empty Weight	13,086lbs
Max Take-Off Weight	31,000lbs
Armament	one 25-mm GAU-12U cannon up to 17,000lbs of: AAMs, ASMs, freefall or guided bombs cluster bombs dispenser weapons napalm tanks rocket launchers
