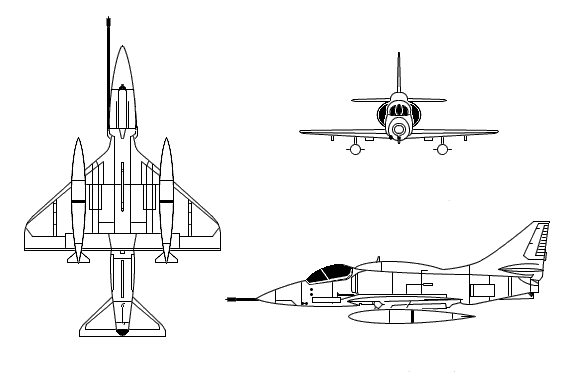

A-4M SKYHAWK II

Specifications

Type	single-seat attack plane
Contractor	McDonnell Douglas
Country of Origin	USA
Powerplant	one Pratt & Whitney J52-P-408A turbojet engine
Thrust	11,200lbs each
Length	40ft 3.75in excluding refuelling probe
Height	15ft
Wingspan	27ft 6in
Wing Area	260 Sq. ft
Max Speed	645 @ 34,000ft
Climb Rate	8,440ft/minute
Service Ceiling	unknown
Range	2,055 miles
Empty Weight	10,465lbs
Max Take-Off Weight	27,420lbs
Armament	two 20-mm Mk 12 cannon in wing roots one fuselage and four wing racks for Sidewinder, Shrike, and Walleye missiles, 1,000lb bombs, and drop tanks
