Section 1

Infrared Rays Emission

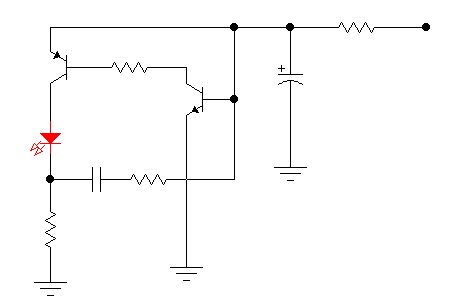

This section projects infrared rays to sense obstacles to evade. Infrared rays are emitted from a light emitting diode (LED) in the form of pulse. Pulse emission of infrared rays enables high luminosity at low electricity conculption with simple electronic circuit. Pulse is generated in the circuit with bipolar transistors. See diagram below!
