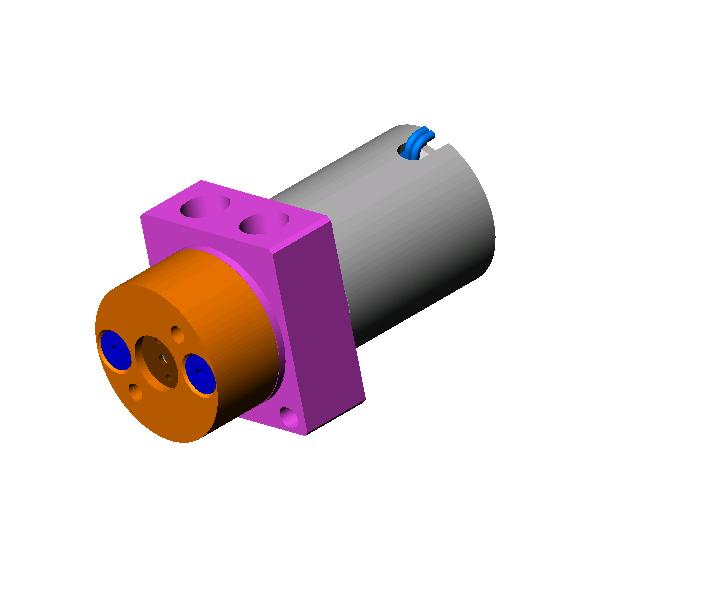

3-Way 3/4 Inch Syringe Solenoid Valve. This valve is a modified valve from an OEM Kloehn 3/4" valve to accommodate the syringe pump mounting fittings. Modifications of the valve body led to the desired design. |
 |

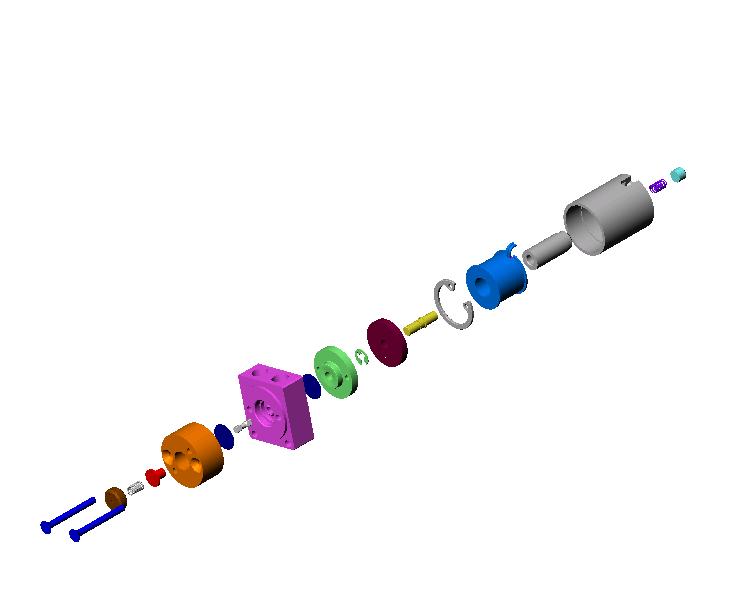

3-Way 3/4 Inch Solenoid Valve. Exploded view of the 3-Way 3/4 Inch Solenoid Valve showing the 20 components (out of which 6 are off-the-shelf parts) and the interactions between them. |
 |

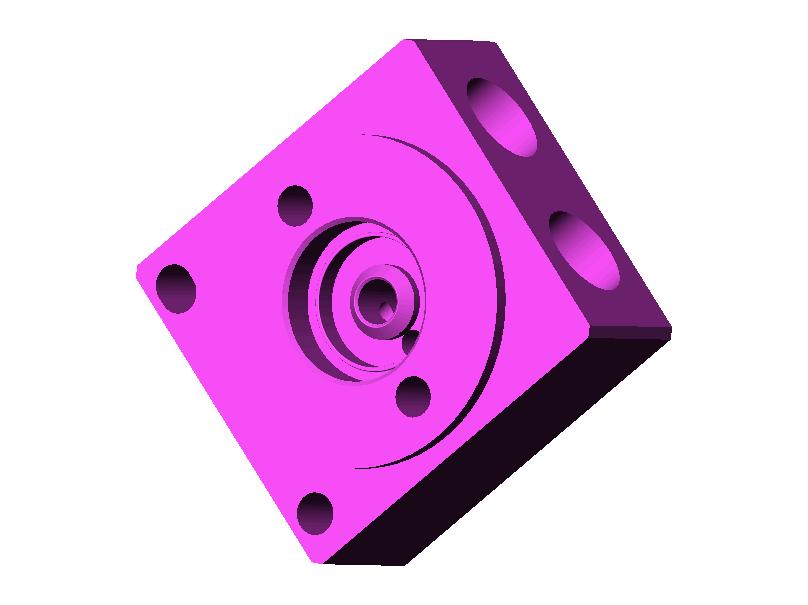

3-Way 3/4 Inch Syringe Valve Body. This valve body has a special configuration to accommodate the syringe ports of a syringe dispension pump. |
 |

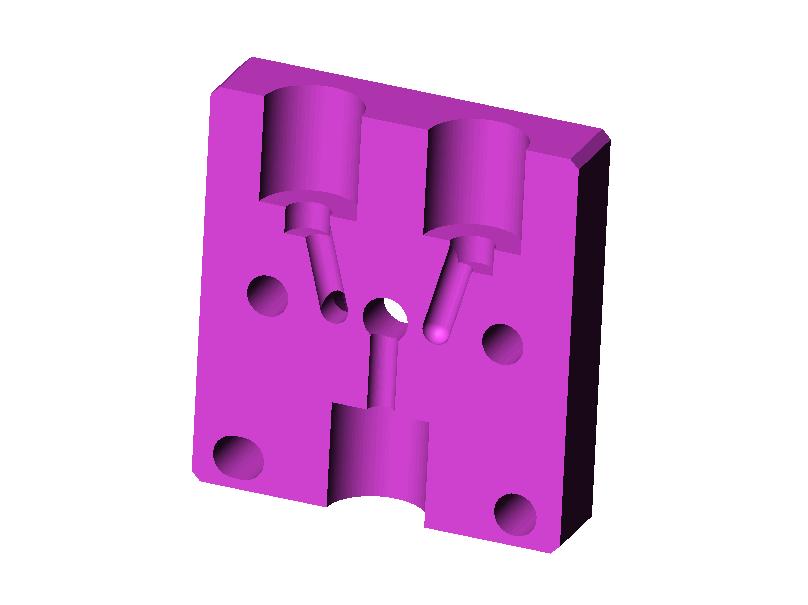

3-Way 3/4 Inch Syringe Valve Body. Cross sectional view of the valve body that shows the internal fluid path solution. The upper blind holes represent the NC and NO ports, whereas the lower blind hole represents the COM port. |
 |
3-Way 3/4 Inch Syringe End Cap. Modification of the End Cap to accomodate the new design of the valve body. |
