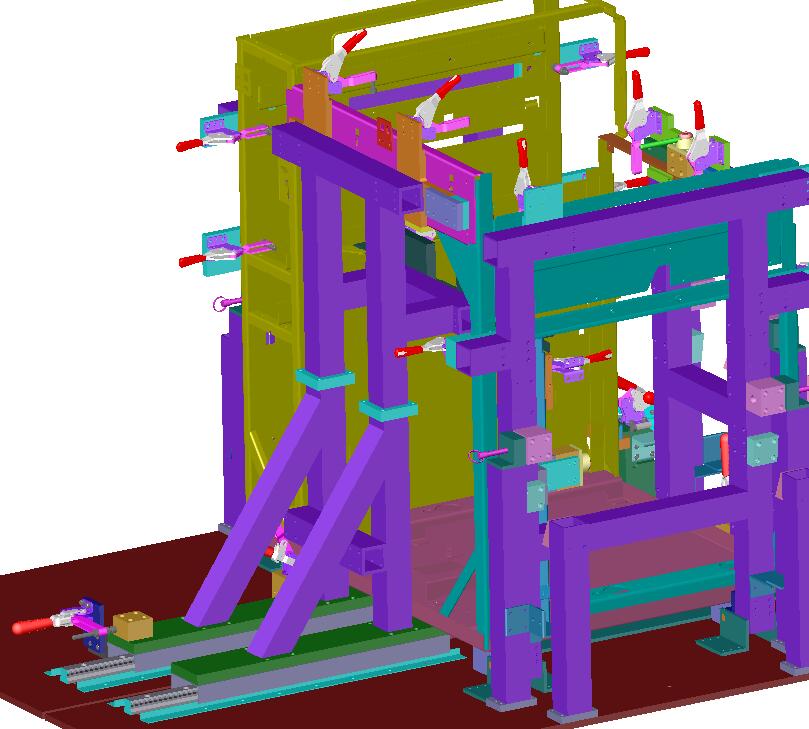

Welding Fixture for Robotic Weld Cell. An Welding Fixture for a Robotic Cell Welding is shown. It is used to weld a Xerox copier frame (see the colored parts). The purple parts are mobile to allow the frame to be removed after welding. Various locating features ensure mounting repeatability of the subassemblies (dowel pins, hardened steel buttons, THK rails, etc.). |
 |
Welding Fixture for Robotic Weld Cell. Opposite view of the Welding Fixture, showing the THK rail used for ease of removing the welde frame, as well as for maintaining the mounting repeatability of the subasembly. |
 |
Welding Fixture for Robotic Weld Cell. |
 |

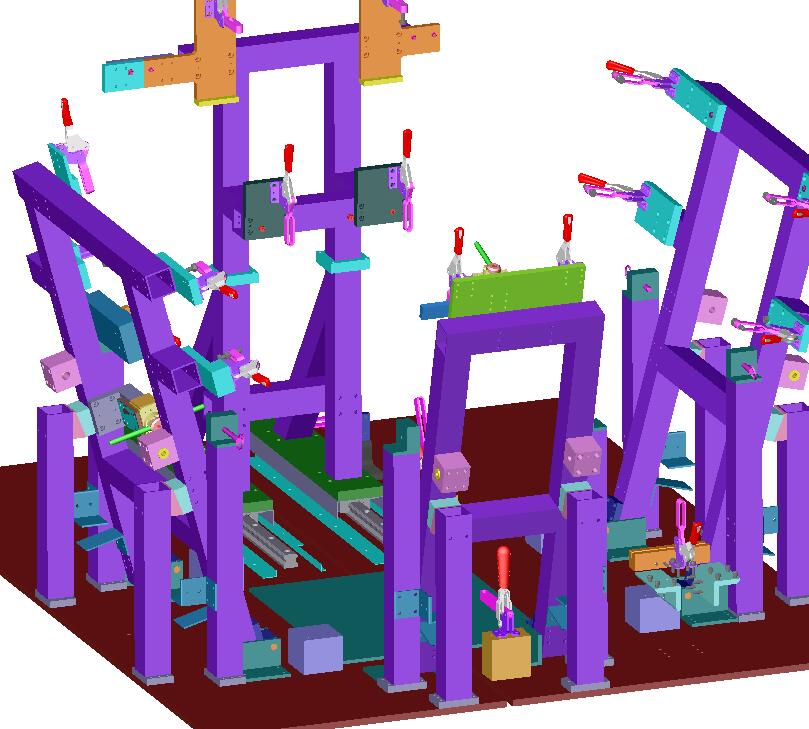

Welding Fixture for Robotic Weld Cell. This view shows only the Welding Fixture, without the Xerox copier frame. |
