The following represent examples of my work using Pro/E 2000i2.

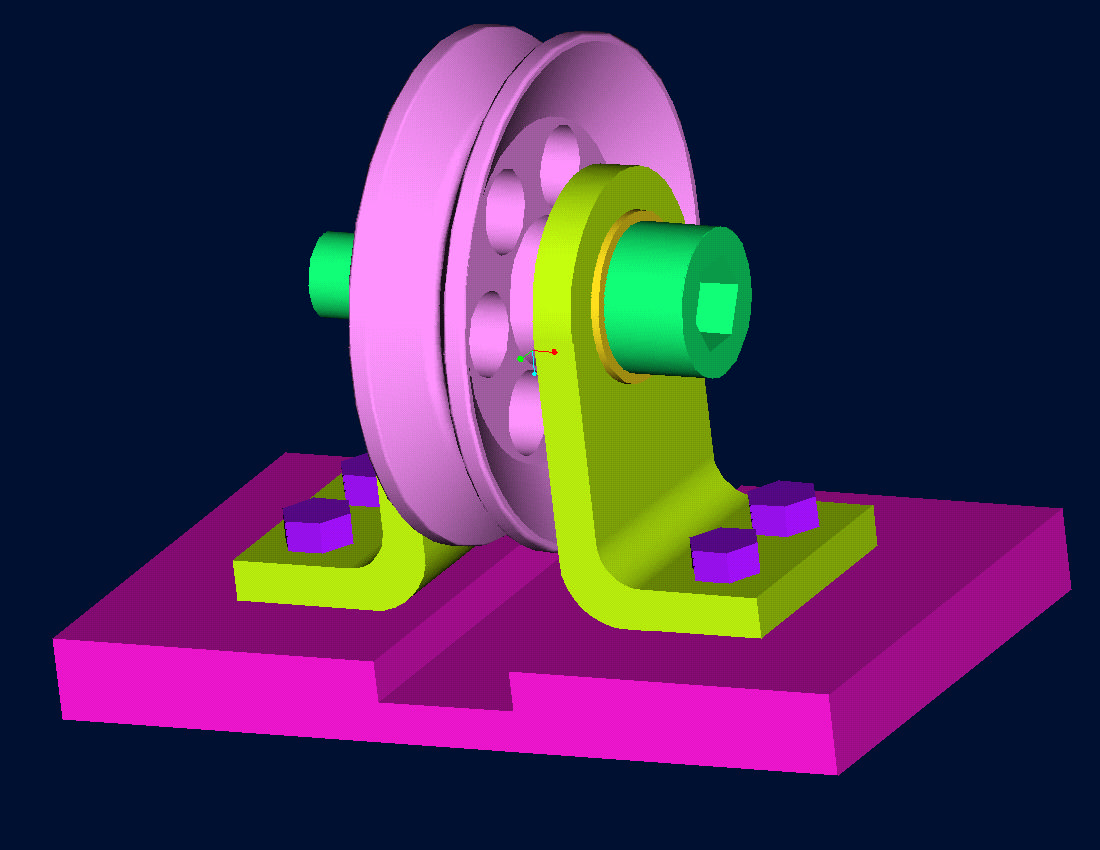

	A pulley assembly. Several parts were created and assembled together. In addition to that, the key between the axle and the pulley was created as a top-down feature.
	A longitudinal section through the pulley assembly.

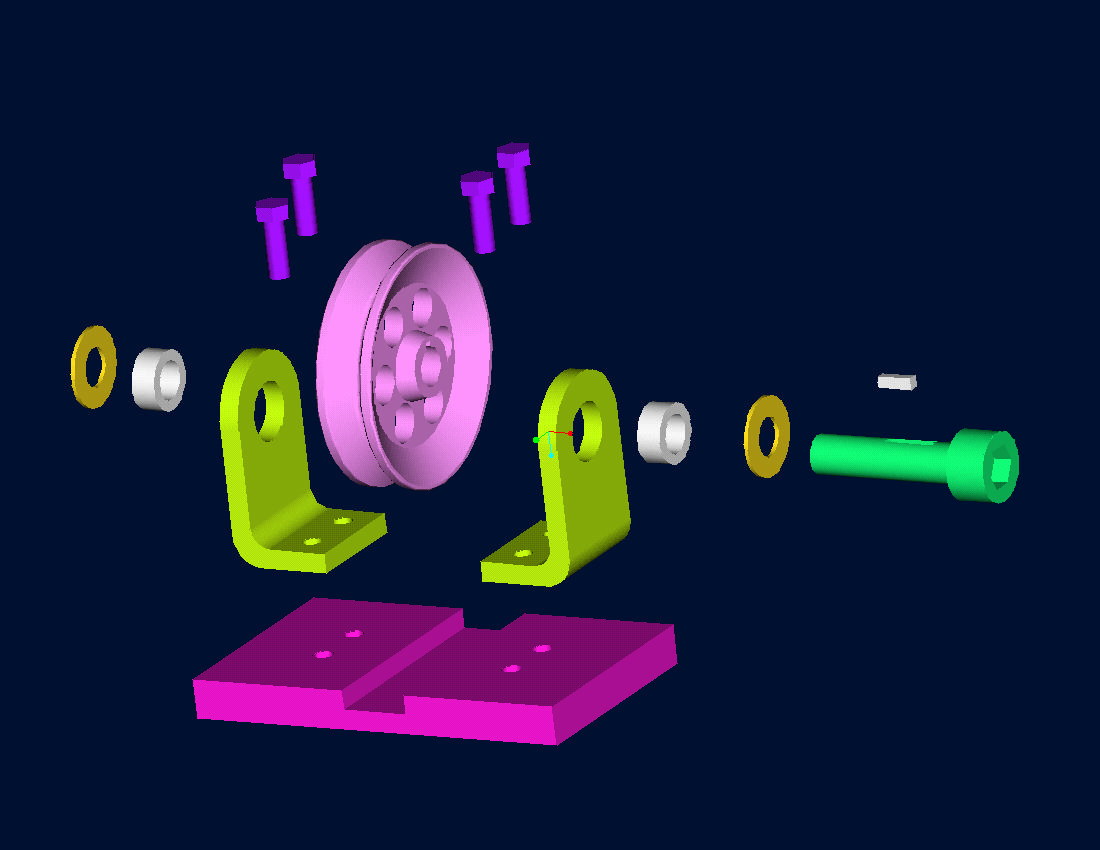

	An exploded view of the pulley assembly.
