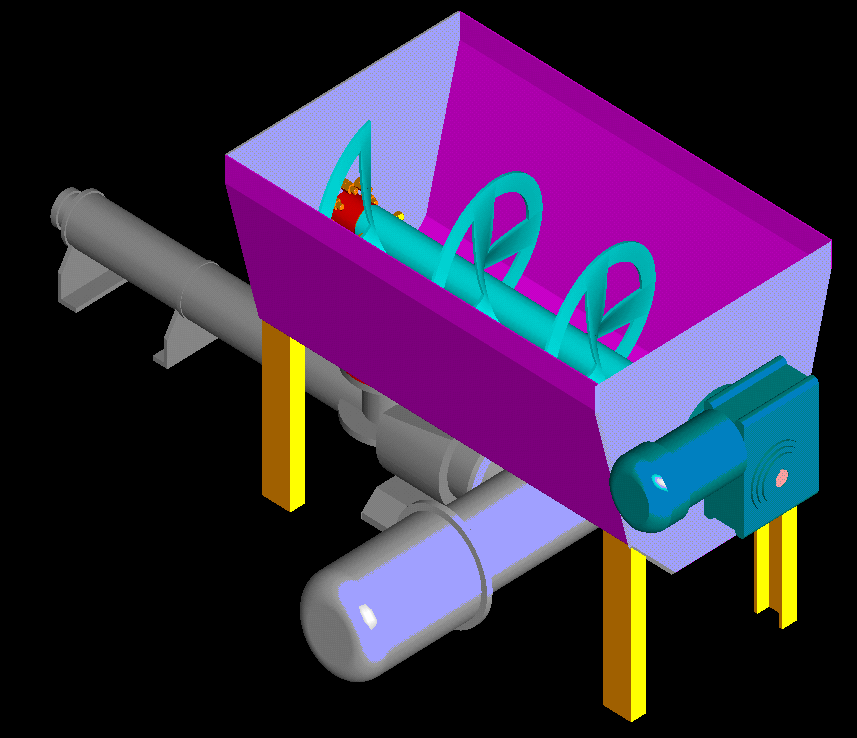

An Ice Mix Tank Assembly. It has an auger that mixes the ice sitting in the tank. At the bottom of the tank is a Moyno Pump used for delivery of the ice. |
 |

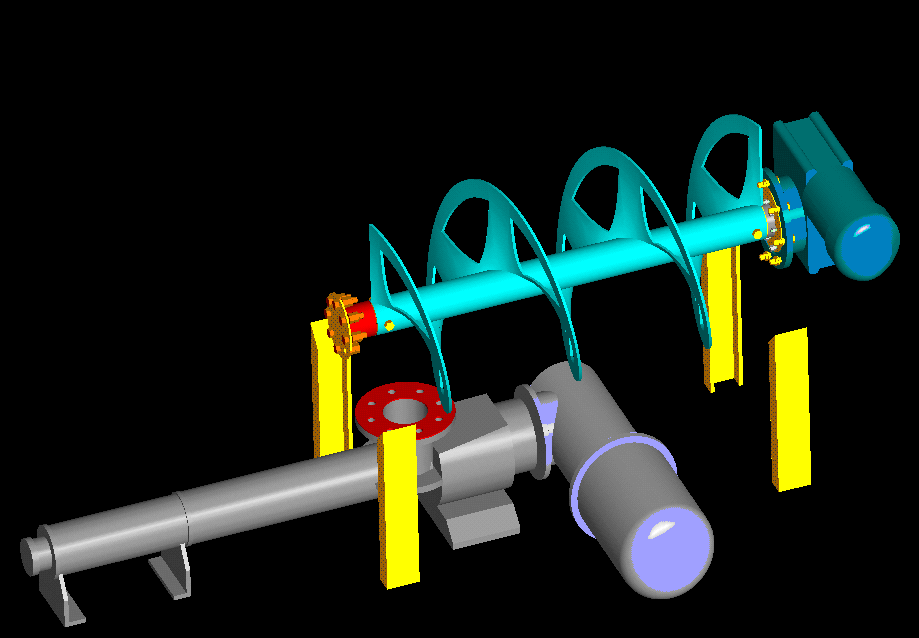

This is a better view of the Mix Tank, where the tank body part was suppressed. One can see very well the bearings, nuts & bolts that comprise the assembly. |
 |

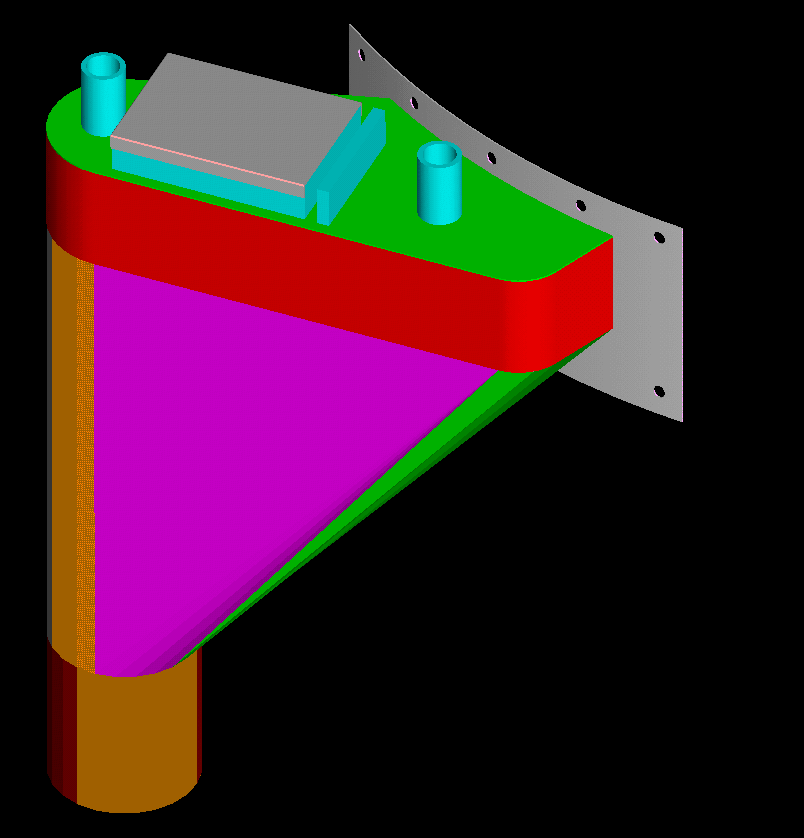

An Ice Chute made out of sheet metal parts. |
 |

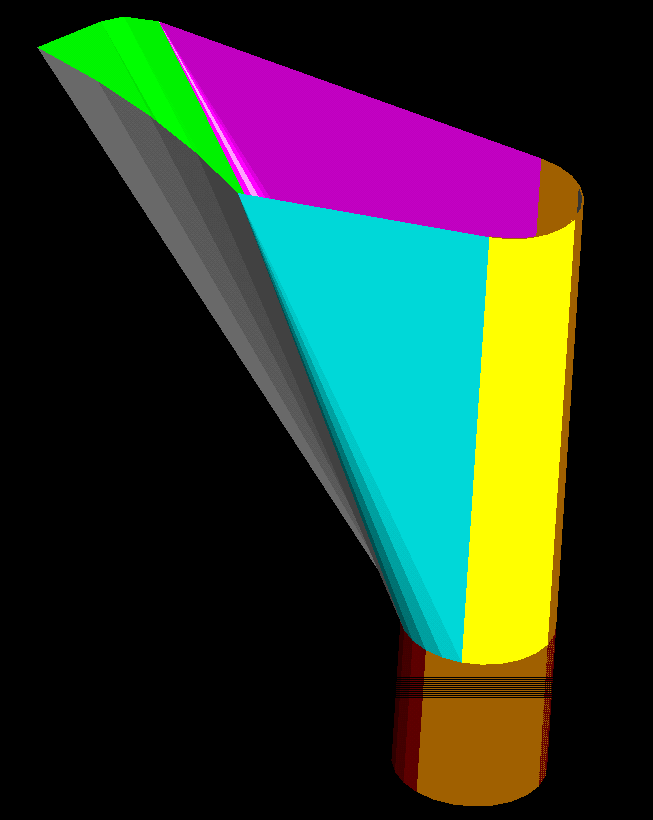

Same Ice Chute, only the body shown. |
 |
Another angle of view of the Ice Chute. |
