This page is under Construction. This site Contains pictures of The new WTTM transmitter site for the city Of Lindenwold,NJ there are lots of photos so if you have a slow Connection it will take awhile to load .
Installing the Shirt(uniPole antenna.

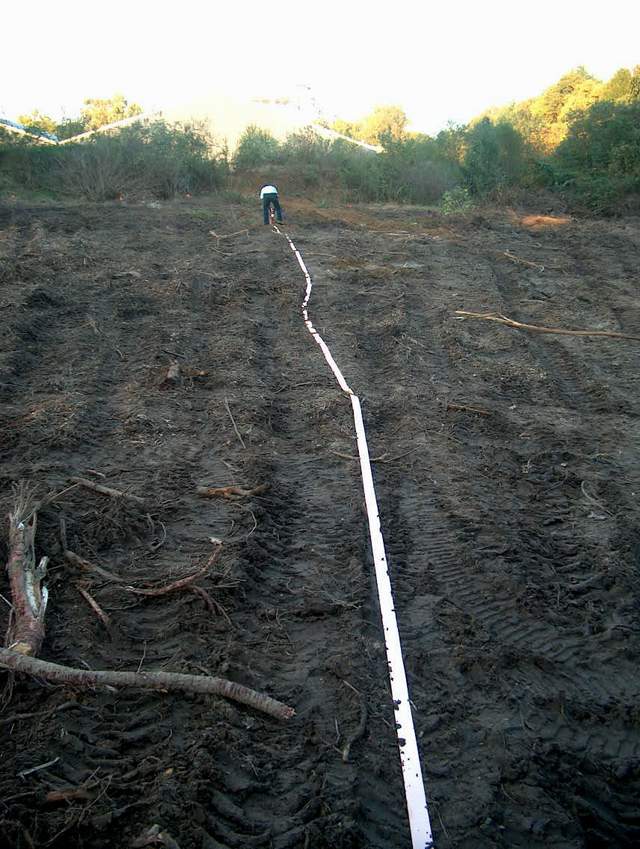

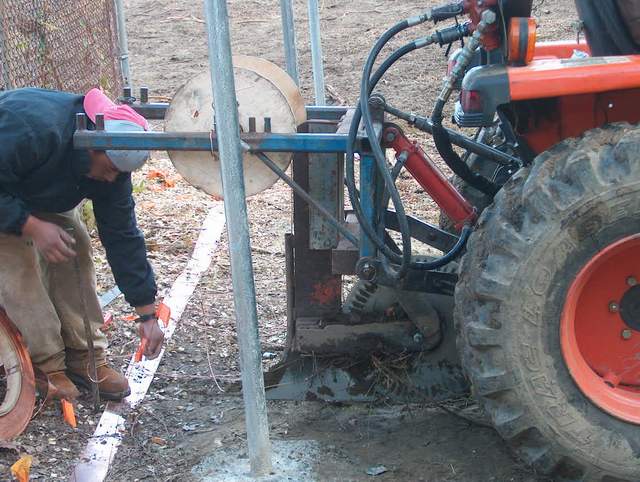

First 2" strap being Run Out

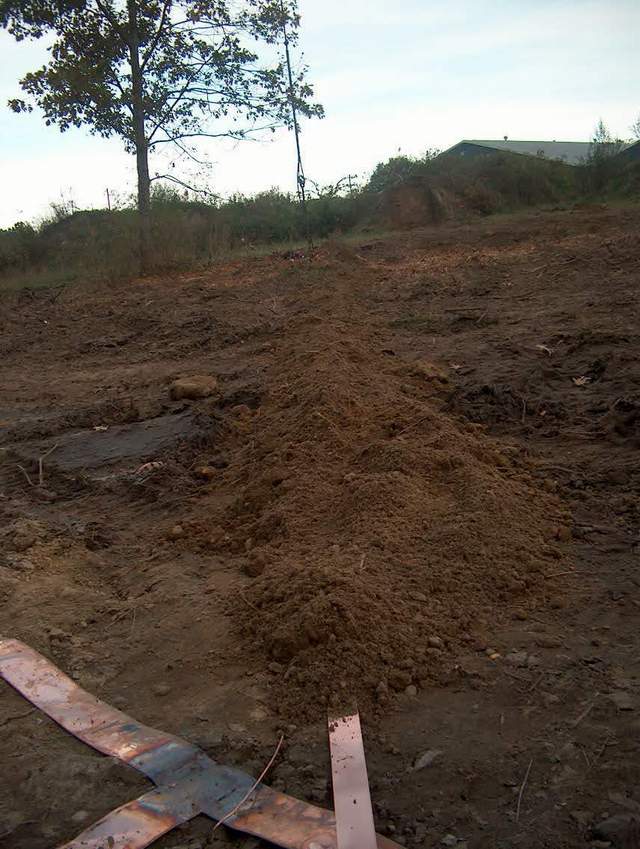

second strap run out and buried

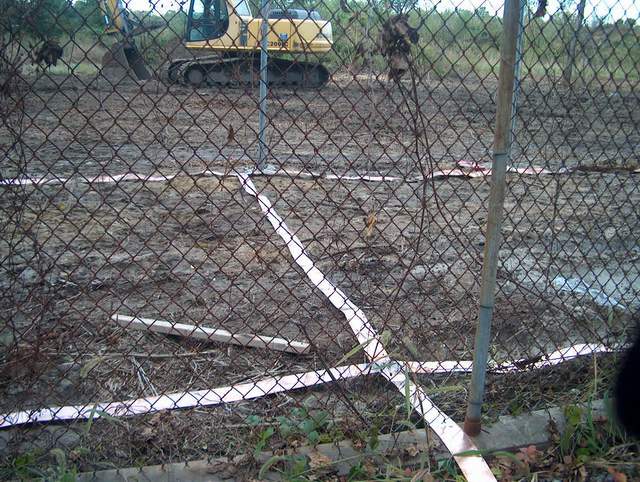

First 4 2" straps laid down 4 more to go

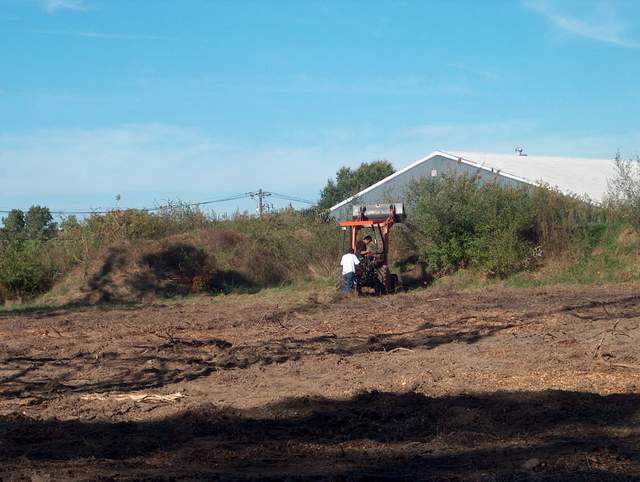

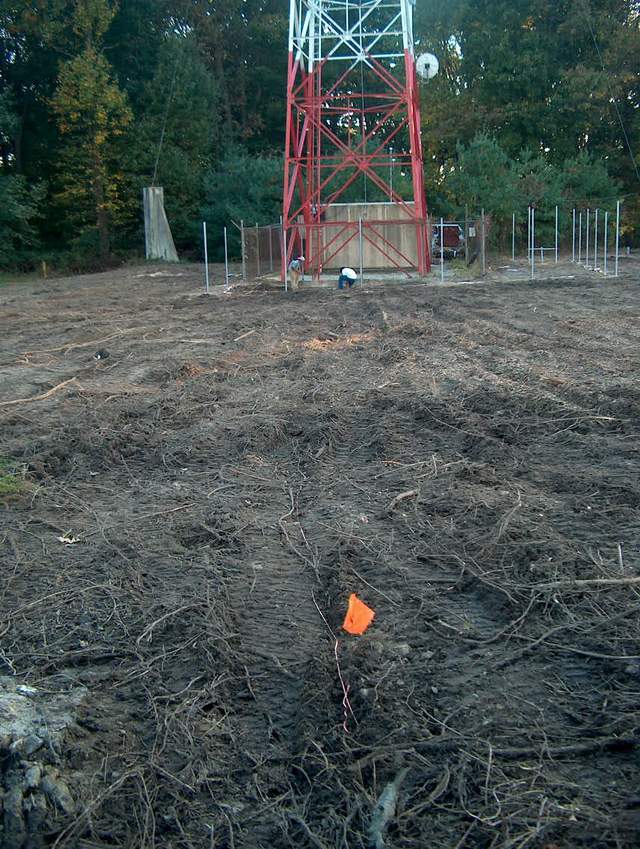

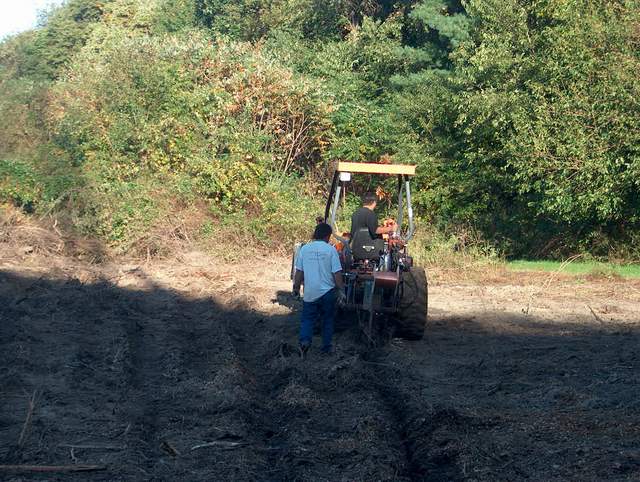

Wire Pulling Rig starting on laying another radial

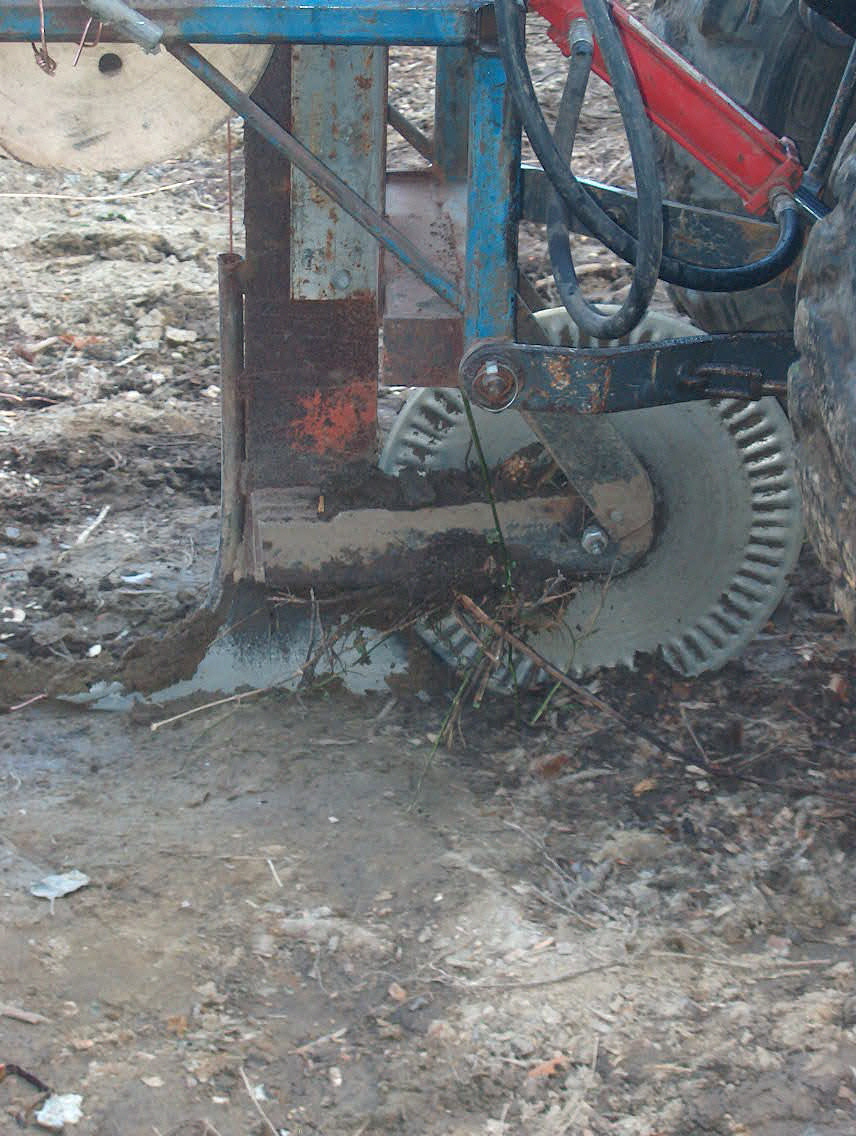

Closeup Of wire plow Rig
I thought they were going to take out these trees But they had to trim them For the wire Pulling tractor to pass under to drop radials
Lots of Copper mesh the Tower is 23 feet from leg to leg
along with the copper Mesh and the 112 #10 wire radials there are 8 2" strap radial Runs

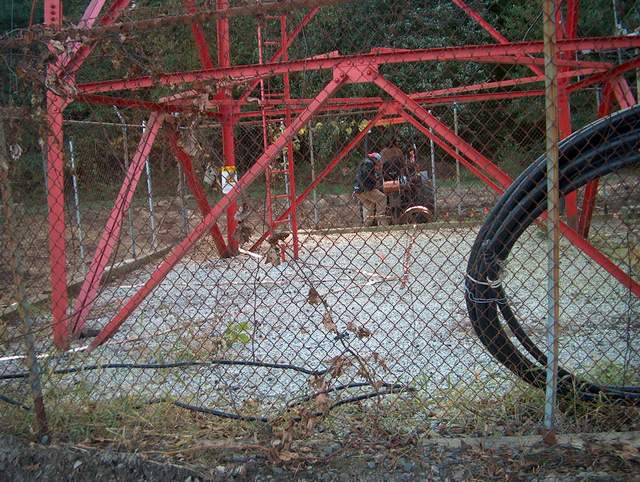

Here you can see the Copper screen layed down under the tower

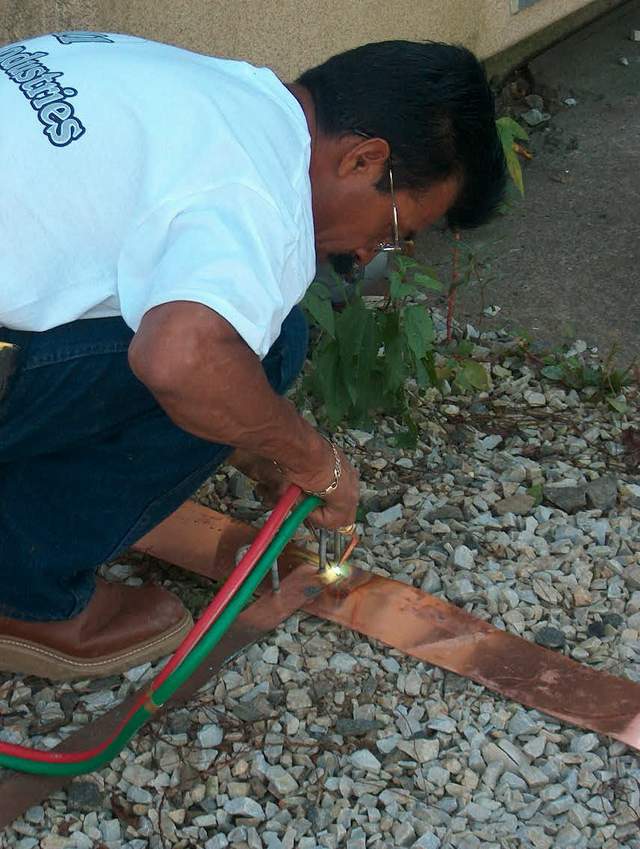

ground strap around the Building base
Guy cable grounded with 2" strap
Copper strap grounding the Eastern guy cable
above ground guy base support Because Of gas lines right of way 20 feet Behind it where it should really Be.

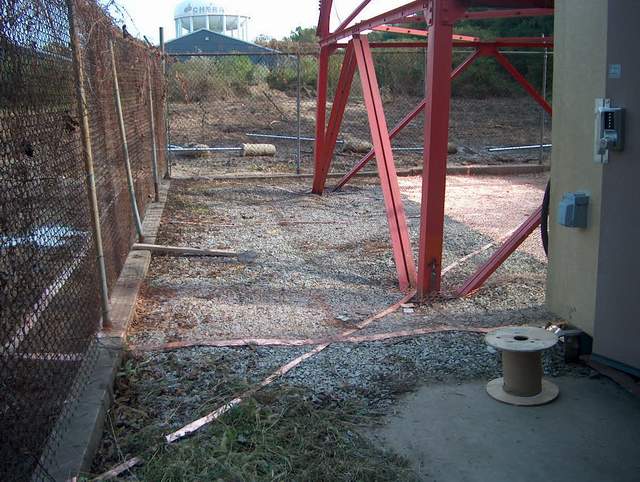

Copper screen mesh extends to copper strap around outside tower base
