9. Analog Switching Multiplexer/Demultiplexer
<

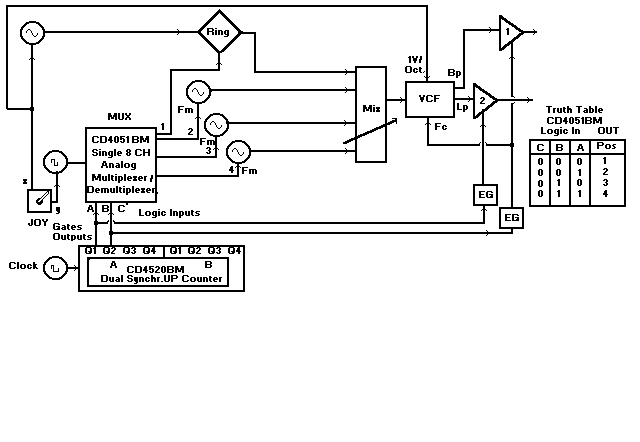

This patch uses an analog switching multiplexer configured as a
1 input /4 outputs switching device: the logic Gates inputs A,
B and C determines which outputs will be sequentially activated ( see
the truth table below). You can also use this Multiplexer as an 8 inputs/1
output switching device.
Note : The CD 4051 BM Multiplexer/Multiplexer chip processes all sorts of analog signals such as Audio, CV and Gates ....
