BOAT SPECIFICATIONS

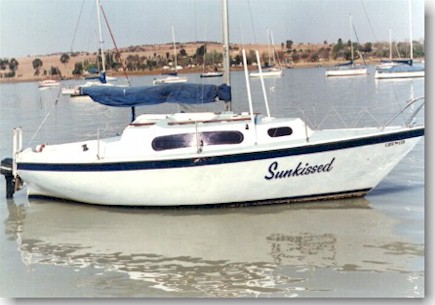

 E.I. Marine Theta

CONSTRUCTION

Sloop rigged racing/cruising keelboat, configured with four bunks, foreward hatch, galley, toilet, laserette storage and sail locker. Pulpit and pushpit railings with safety lines along each side. Inboard rudder and tiller. Hull and deck constructed from GRP. Wood internal finishings. Internal power supply from 12 volt battery with engine driven generator.

SAIL PLAN

Sloop rigged -  Alumininium mast and boom. Sails include:

Main sail with two reefing points.

No. 1 Jib with reefing point/Roller furling option

No. 2 Working jib

Double rigged sheets.

Rigged for single handed sailing

DIMENSIONS:

L.O.A. 27 ft.   -   L.W.L. 26 ft   -   Beam 12 ft    -    Draught 4 ft.

Displacement 1.5 tons   -   Hull speed 8 knots   -   Keel Cast iron fin keel - 0,75 tons.

Maximum number of persons - 8                            Minimum crew required - 1

Maximum passengers to be carried on charter - 6

STANDARD EQUIPMENT

9.9 hp.petroil outboard engine mounted on movable engine bracket. Tank range - 10 hours.

1 x 12kg Danforth anchor - 1 x5 kg Fishermans anchor - 8 ft GRP Dinghy with sealed bouyancy compartments, paddles and petroil outboard engine.Depth sounder - Distance log -

Compass - Gas stove - Chemical toilet - 20 litre water tank - 2x dry powder fire extinguishers -

Navigation lights - life jackets - Hand operated bilge pump  - Heaving line and floating ring -

Life ring - First Aid Kit - VHF Radio - Foghorn - Boathook - Emergency kit - Toolkit - Boarding ladder.

 Van de Stadt Bucanneer 24

CONSTRUCTION

Sloop rigged racing/cruising keelboat, configured with four bunks, galley, laserette storage and sail locker. Fore and aft hatches. Pulpit and pushpit railings with safety lines along each side. Inboard rudder and tiller. Constructed from wood beams and stringers and covered with 10mm marine ply- treated and painted. Internal power supply from engine charged -12volt battery .

SAIL PLAN

Sloop rigged -  Alumininium mast and boom. Sails include:

Main sail with two reefing points.                 No. 1 Jib (Genoa)                           No. 2 Jib (Cruising jib)

No. 3 Jib (Working jib)                                No. 4 Jib ( Storm jib)                       Double rigged sheets.

Rigged for single handed sailing

DIMENSIONS:

L.O.A. 24 ft.   -   L.W.L. 23 ft   -    Beam 7 ft   -   Draught 4 ft.

Displacement 1.0 tons   -   Hull speed 6 knots    -   Keel Cast iron bulb keel - 0,5 tons.

Maximum number of persons - 6                                           Minimum crew required - 1

Maximum passengers to be carried on charter - 4

STANDARD EQUIPMENT

8 hp.petroil outboard engine mounted on movable engine bracket. Tank range - 10 hours.

1 x 12kg Danforth anchor - 1 x 5 kg Fishermans anchor - 8 ft GRP Dinghy with sealed bouyancy compartments, paddles and petroil outboard engine.Depth sounder - Distance log -

Compass - Gas stove - Chemical toilet - 20 litre water tank - 2x dry powder fire extinguishers -

Navigation lights - life jackets - Hand operated bilge pump  - Heaving line and floating ring -

Life ring - First Aid Kit - VHF Radio - Foghorn - Boathook - Emergency kit - Toolkit - Boarding ladder.
