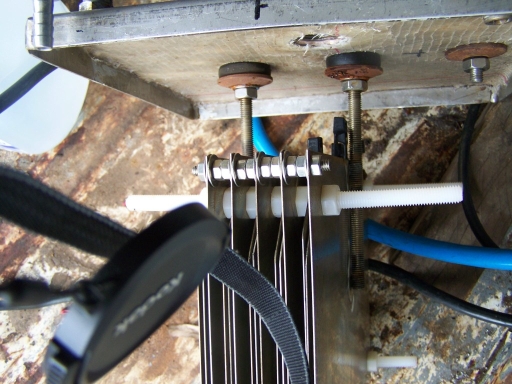

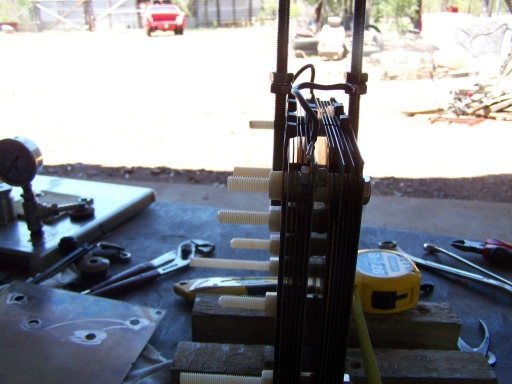

This stack is one of my latest, made in Dec 09 did not work
Same stack
same again
Same again

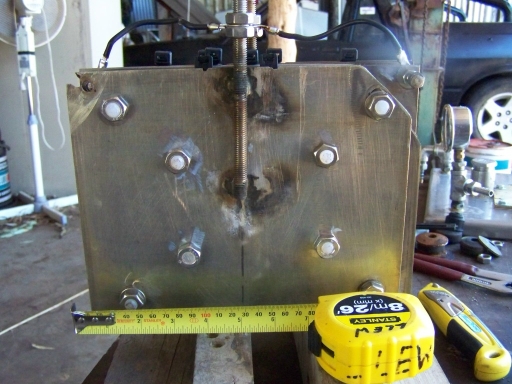

This is my latest stack, controls amperage but does not develop any pressure.
same cell
Same again

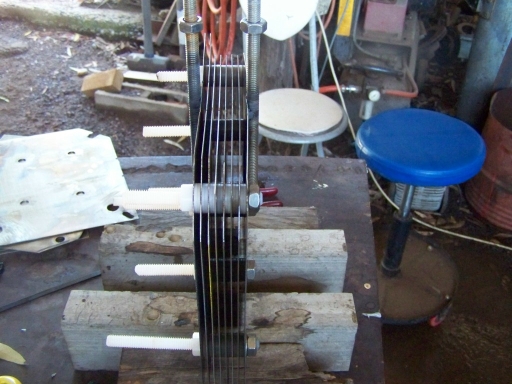

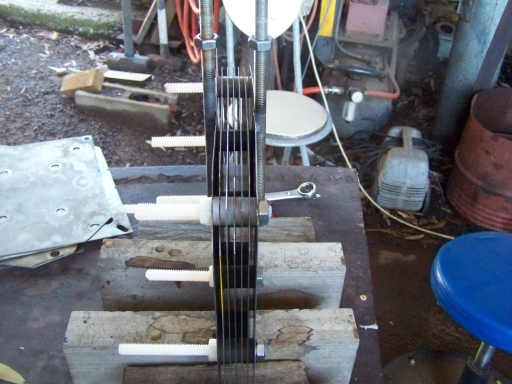

Same gain, showing the plate arrangement. Pos NNNNN Neg 8 mm gap Pos NNNNN Neg
Same again Jan.10. 2010

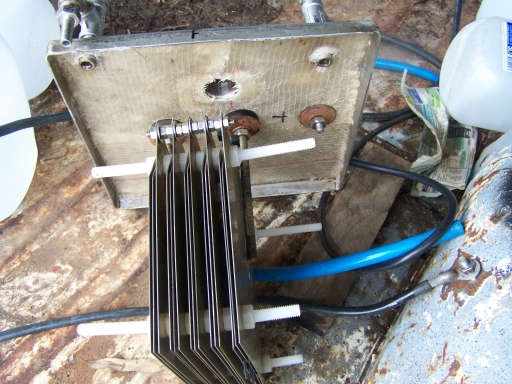

This is my last plate stack, two gangs of seven plates.
Neg nnnnn Pos, tried with the strong caustic mix it worked very well.
The plate gap was .075 inches ( or nearly 2 mm )
The nuts provided a gap between gangs, of .320 inches ( 8 mm )

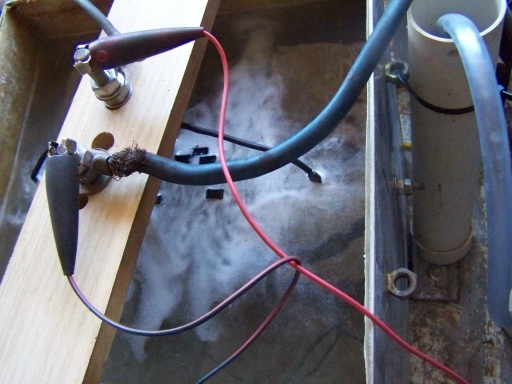

The current draw was 106 amps, it was making more bubbles
than I have ever seen.

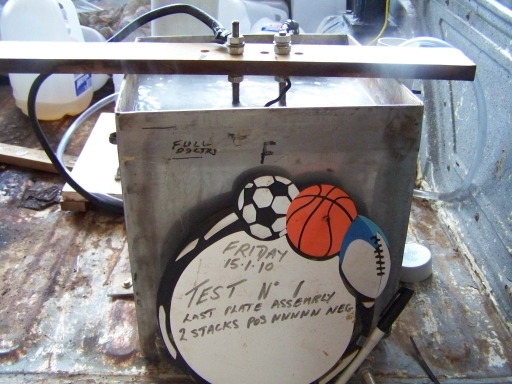

HOD Test very strong caustic solution 15th Jan 2010
Test number Two
Plate assembly with .150 inch ( close to 4 mm ) Pos nnnn Neg Ho gas less than test number one, still drawing 160 amp

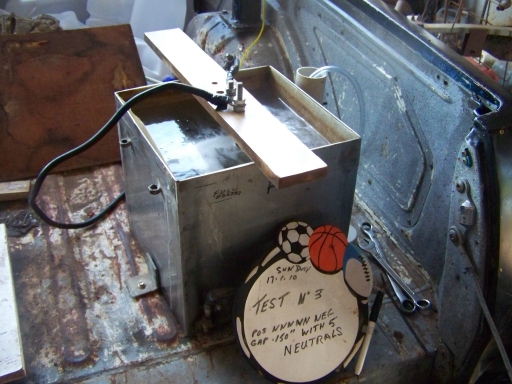

Test number Three
Same gap, five neutral plates.130 amps. Gas about the same as test number two.

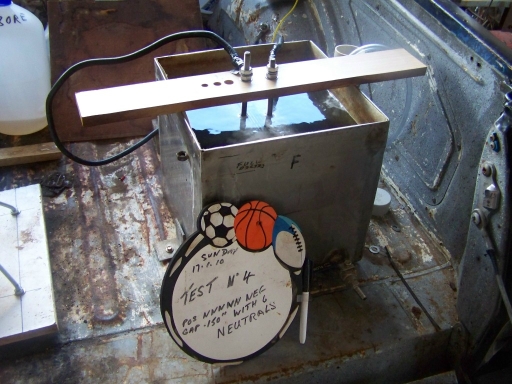

Test number four
Six neutral plates, same gap.
Less bubbles, battery fully charged. Draw 160 amps, unable to continue test as do not have anything capable of putting out 160 amps.
Position has not changed, what I need is a device to control amps.
First test using digital DC welder, disappointing the voltage across the HOD terminals was only 2 volts at 100 amps.
2 volts only, same stack as one below.
Test using standard AC welder with rectifier, still only 2 volts, 140 amps. Will have to do research, the welding voltage is supposed to be around 50 volts.

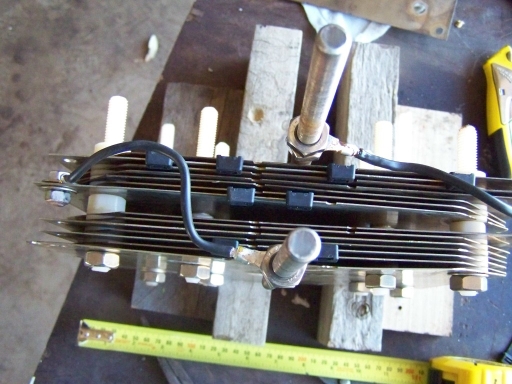

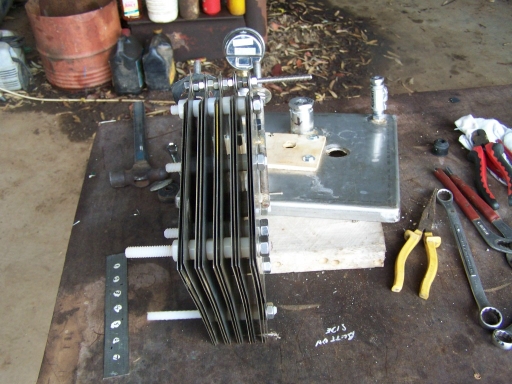

This is the two gang stack. Pos nnnnn Neg 8 mm gap Pos nnnnn Neg.
