"V" Speeds

Symbol

Description

Value (KIAS)
VA Maneuvering speed @4750lbs: 140           @3205lbs: 114
VFE Flap extended speed 10o:  140       25o: 122      40o: 115
VLE Landing gear extended speed 130
VLO Landing gear operating speed Extend: 130      Retract: 108
VMCA (VMC) Air minimum control speed (lowest speed at which airplane is controllable with one engine operating at takeoff power and no flaps) 66
VNE Never exceed speed 205
VNO Maximum structural cruising speed 166
VS Stalling speed 64
VSO Stall speed in landing configuration 61
VSSE Intentional 1 engine inoperative speed 85
VX Best angle of climb speed 76
VY Best rate of climb speed 92
VYSE Best rate of climb on 1 engine 92
VXSE Best angle of climb on 1 engine 78
VMCP Maximum continuous power 5 min: 2800RPM (T/O    Max. Cont. 2600RPM


General Information

Engines:  Teledyne Continental TSIO-360KB (left engine) and LTSIO-360KB (right engine) 200HP Engines.

Props:  McCauley 3 blade props w/anti-ice pads (76 inch max diameter)

Weight Limits (in pounds lbs):

  1. Max Ramp Weight:  4773
  2. Max Take-off weight:  4750
  3. Max Landing Weight:  4513
  4. Max Weight in forward baggage compartment:  100
  5. Max weight in aft baggage compartment:  100
  6. Max Zero Fuel Weight:  4470

Fuel Limitations (US Gallons):

  1. Total Capacity:  128
  2. Unusable fuel:  5
  3. Usable fuel:  123

Operating Altitude Limitations:

  1. Flight above 25,000ft is not approved.  Flight up to and including 25,000ft is approved if equipped with oxygen in accordance to FAR 23.1441 and avionics in accordance with FAR 91 or FAR 135.
  2. Single Engine Service Ceiling: 15,600ft

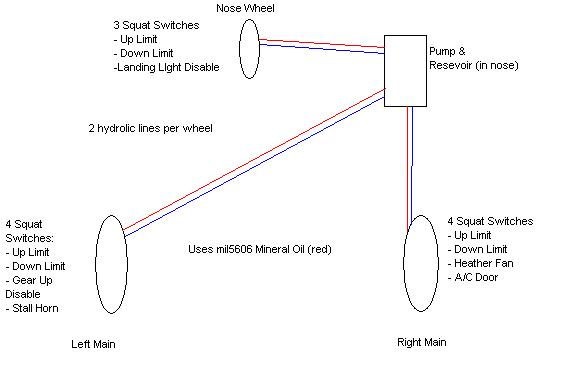

Landing Gear

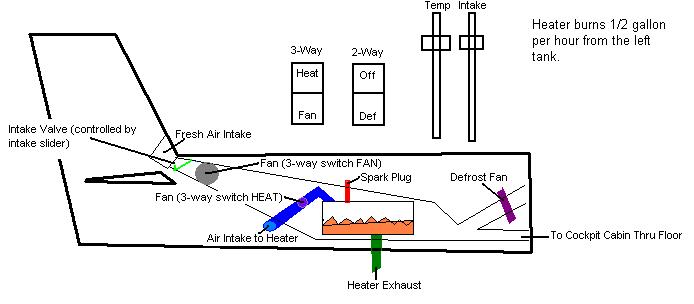

Heater

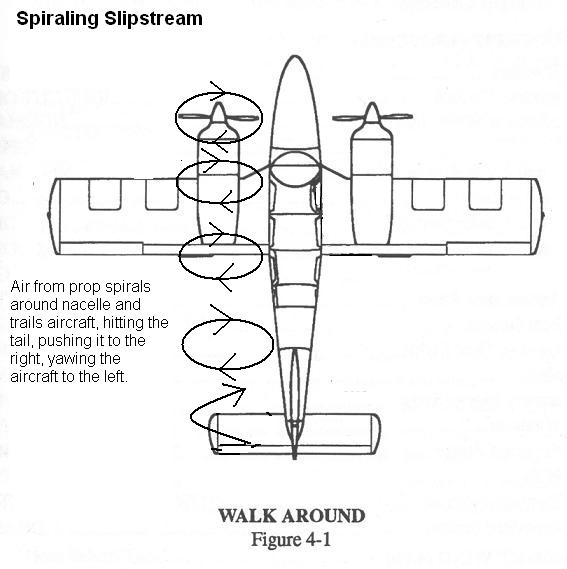

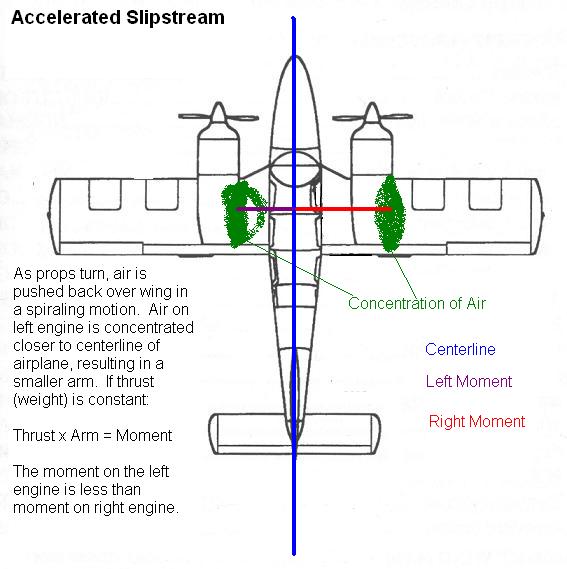

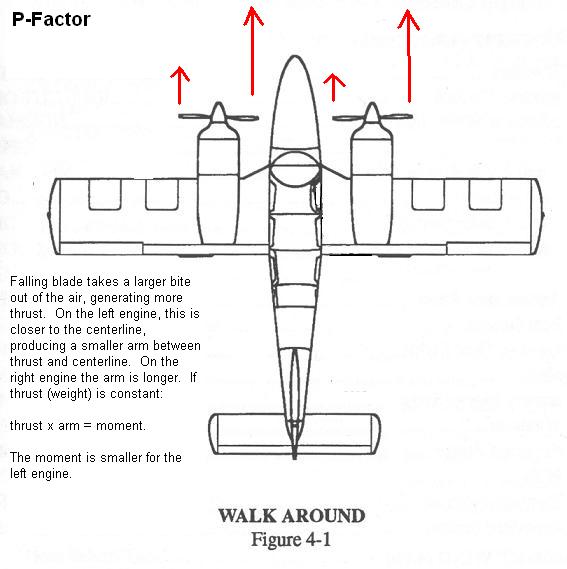

Critical Engine:  Left engine
