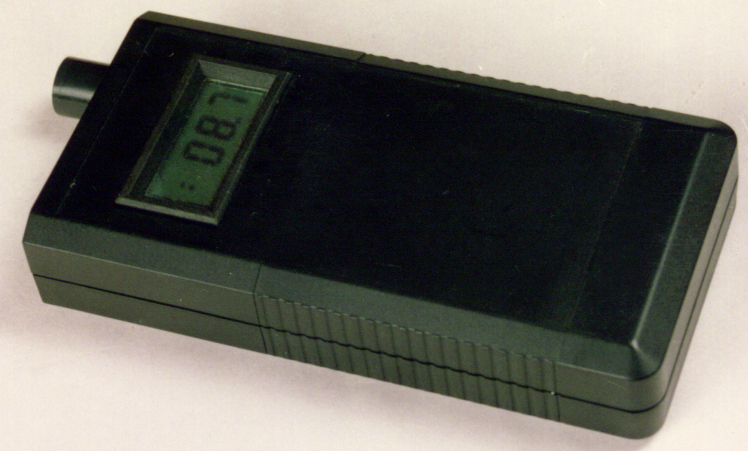

The personal gas alarm gives a direct digital readout in % LEL or PPM level as per requirement. the PG-110 is self containing sensor and 2 no,of standard AA size batteries. The unit is small and light in a weight with facility for hook the unit with belt So both the hands of the operator can be free. The unit has high and very high adjustable built-in buzzer alarm facility in noisy environment. A low battery indication is given on display with buzzer, which indicates that the battery has to replaced. the unit is very convenient, light weight, portable and easy to operate. PG-110 provides optional continuous monitoring of up to any two gases that is combustible gas or Oxygen and one or two toxic gases. For industrial hygiene monitoring.
|
 | Small and light weight |
| Hand held instrument |
| Long life sensor |
| Direct Digital readout |
| high and very high alarm |
| Headphone alarm facility |
| Optional two different gases can be detected
|
ACCESSORIES |
Leather carrying case, Operating instruction, Battery |
|---|---|
| DIMENSION | 210 (H) X 115 (W) X 40 (D) |
| DISPLAY | 3½ Digit LCD Display |
| FUNCTIONAL KEYS | ON-OFF Switch, Zero and span adjustment pot |
| HOUSING | PVC Enclosure |
| LOW BATTERY | Indication with buzzer |
| OPERATING TEMP | 0 to + 45°C |
| OPTIONAL | Headphone, Ni-Cd rechargeable battery, charger |
| OUTPUT | Audible Alarm facility |
| POWER SUPPLY | Two AA size batteries 3V dry cell |
| RANGE | 0 to 100% LEL or PPM level as per requirement |
| RESOLUTION | 0.1% LEL Or 0.1 PPM |
| RESPONSE TIME | Less then 30 seconds |
| SAMPLING METHOD | Diffusion |
| SENSOR LIFE | Expected life 18 months depending up on operating condition |
| SENSOR TYPE | Catalytic combustion or Electrochemical |
| SET POINT | High and very high |
